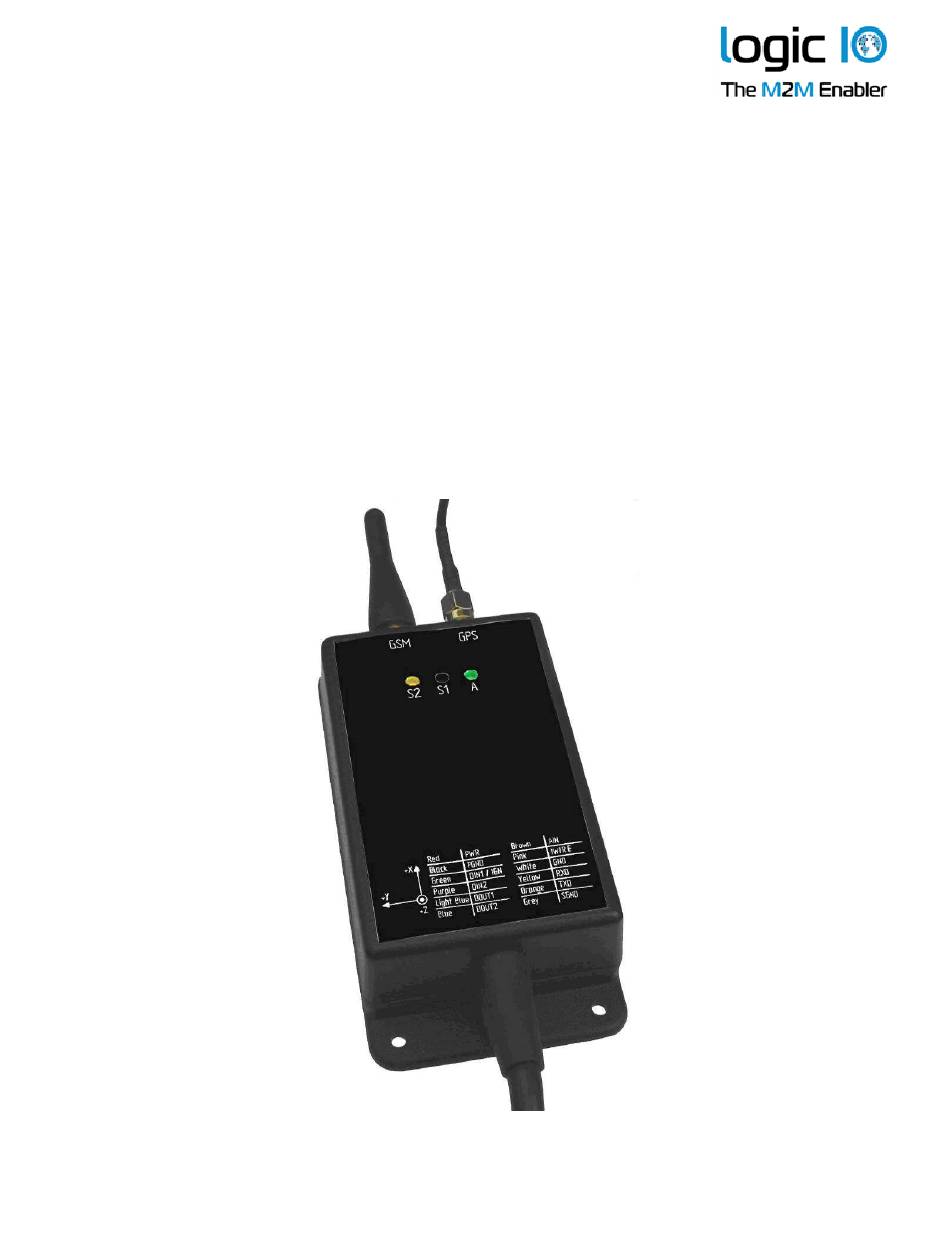

  • Page 1 Technical Manual 3.00, RTCU CX1i pro Technical Manual for the RTCU CX1i pro / pro+ Version 3.00...
  • Page 2: Introduction

    The RTCU CX1i pro/pro+ is a compact, waterproof and ruggedized telematic tracking and control platform, based on the powerful X32-architecture also found in the popular MX2i Series. In addition to a long list of standard features the RTCU CX1i pro/pro+ sports a state of the art 66-channels SuperGPS receiver with unprecedented performance.
  • Page 3: Table Of Contents

    Appendix B – Installing the SIM card ................19 Appendix C – Installing the Micro SD card................ 20 Appendix D – Unpacking of boxed RTCU CX1i pro ............21 Appendix E – CX1i pro mounting drawing................. 24 Page 3 of 24 Logic IO ApS.
  • Page 4: Graphical View

    Technical Manual 3.00, RTCU CX1i pro Graphical view (Note: Please remove the protective foil on the surface of the unit before use) Micro-SD card reader Reset switch Battery SIM-card connector reader Service port Page 4 of 24 Logic IO ApS.
  • Page 5: External Connections

    Technical Manual 3.00, RTCU CX1i pro External connections Overview Connections to external equipment are done via the connectors/cables located back and forth on the product. All connections are available externally for easy access. The front side is equipped with a SMA female Quad-band GSM antenna connector, and a SMA female GPS antenna connector.
  • Page 6: Power Supply

    Signal ground Power supply The RTCU CX1i pro unit is to be supplied with 8..36 VDC from an external DC power source connected to the power cables in the interface cable. Positive power is applied to the red colored cable and ground is connected to the black colored cable.
  • Page 7: Digital Outputs

    The digital outputs are supplied through the power cable in the interface cable, which also supplies the rest of the RTCU unit. As the power is also the RTCU CX1i pro main power, a power-fail would also affect the digital outputs.
  • Page 8: Analog Input

    PC. For location of the service port connector please refer to the graphical view section. 3D-movement Sensor The RTCU CX1i pro unit contains a 3D-movement and vibration sensor. It makes it possible to detect movement and position change in 3 directions, X-Y-Z, and vibration through the power management when for example the vehicle is moved.
  • Page 9: Indicators (Led's)

    Technical Manual 3.00, RTCU CX1i pro Indicators (LED’s) Two bi-colored (red and green) and a single yellow LED indicators are present on the top side of the unit (see external connections overview). One bi-colored LED (A) is available to the user and the remaining two LED’s (S1 and S2) are signaling the status and possible errors of the RTCU unit.
  • Page 10: System Switch (Rst)

    The RTCU unit is in “Wait For Event” low power state. System switch (RST) The RTCU CX1i pro unit contains a combined reset/diagnostic switch. This switch is located inside of the RTCU unit (see the graphical view). By activating the switch shortly the RTCU unit will do a complete reset, as if the power was removed and reapplied.
  • Page 11: Internal Li-Ion Battery

    After 300 cycles the capacity has dropped to approximately 80% of the initial capacity. Warning: Misusing the RTCU CX1i pro unit may cause the built-in battery security circuit to be damaged. • Do not place the RTCU unit in high temperature locations such as direct sunlight or near engines.
  • Page 12: Micro Sd Card Reader

    Technical Manual 3.00, RTCU CX1i pro Micro SD card reader The RTCU CX1i pro unit has a standard Micro SD card reader which is located inside the unit (see drawing below or graphical view). The Micro SD card reader is a lid based system with mechanical lock for reliable insertion and operation.
  • Page 13: Antennas

    The first three digits in the short format serial-number identify the unit type, and for the RTCU CX1i pro this unique code is 252 and for the RTCU CX1i pro+ it is 254. The barcode format used: 2/5 Interleaved with Check Digit Page 13 of 24 Logic IO ApS.
  • Page 14: Power Consumption

    Technical Manual 3.00, RTCU CX1i pro Power consumption Detailed information on the maximum power consumption of the CX1i pro unit in different states and at different supply voltages is listed below. Maximum power consumption: Unit running on external supply. Unit Active...
  • Page 15: Specifications For The Rtcu Cx1I Pro

    Technical Manual 3.00, RTCU CX1i pro Specifications for the RTCU CX1i pro Operating Voltage Operating Voltage Protected against wrong polarity. Protected against wrong polarity. On-board Li-Ion Battery Pack On-board Li-Ion Battery Pack 1000 1000 Low-temperature charging possible. Low-temperature charging possible.
  • Page 16: Specifications For The 66-Channels Supergps Receiver

    Technical Manual 3.00, RTCU CX1i pro Specifications for the 66-channels SuperGPS receiver MediaTek MT3329 Single Chip SuperGPS General: 66 Channels simultaneous operation A-GPS capable L1 frequency (1575.42MHz), C/A code Continuous tracking receiver Update Rate: NMEA @ 1 Hz Accuracy: Position <2.5m CEP...
  • Page 17: Appendix A - Assembling/Disassembling Of The Unit

    The following steps describe assembling and disassembling the enclosure: 1. Remove the back plate of the RTCU CX1i pro. The four screws are located at the corners of the back plate as shown below: Page 17 of 24 Logic IO ApS.
  • Page 18 Technical Manual 3.00, RTCU CX1i pro 2. Gently lift the back plate. Please note, that the internal backup battery is mounted on the back plate and connected to the unit with short cables. If the necessary precaution is not taken when removing the back plate the battery, battery cable or the unit may be damaged.
  • Page 19: Appendix B - Installing The Sim Card

    Technical Manual 3.00, RTCU CX1i pro Appendix B – Installing the SIM card The SIM card reader is a lid based type with a mechanical lock for secure installation of the SIM card. Open the hinged lid of the SIM card reader, orientate the card as showed below, and insert it into the lid of the card reader.
  • Page 20: Appendix C - Installing The Micro Sd Card

    Technical Manual 3.00, RTCU CX1i pro Appendix C – Installing the Micro SD card To insert a Micro SD card into the reader open the hinged lid of the card reader, orientate it as shown below, and push the card into the lid. Close the lid, and slide the metal lid in the direction that is shown with an arrow on the lid, until a click is heard.
  • Page 21: Appendix D - Unpacking Of Boxed Rtcu Cx1I Pro

    Technical Manual 3.00, RTCU CX1i pro Appendix D – Unpacking of boxed RTCU CX1i pro The RTCU CX1i pro is typically delivered as a boxed product with GSM and GPS antennas all included in a carton box, as shown below: 1.
  • Page 22 Technical Manual 3.00, RTCU CX1i pro 3. To prepare the unit for SIM card and SD-Card follow the guides: • Appendix A – Assembling/Disassembling of the Unit (Please notice the screw has been replaced by the rubber band) • Appendix B – Installing the SIM card •...
  • Page 23 Technical Manual 3.00, RTCU CX1i pro 7. The unit is now ready for use. When installing the device please take notice the following consideration. a. GPS antenna. The GPS antenna should be paced with free access to GPS satellite reception. The optimal position is with a full view of the sky and with the “GPS”...
  • Page 24: Appendix E - Cx1I Pro Mounting Drawing

    Technical Manual 3.00, RTCU CX1i pro Appendix E – CX1i pro mounting drawing Below drawing shows the placement of the mounting holes on the back plate of the unit: Page 24 of 24 Logic IO ApS. Ph: (+45) 7625 0210 Holmboes Allé...
