Ovation FlashBack-4 Quick Setup Manual

1

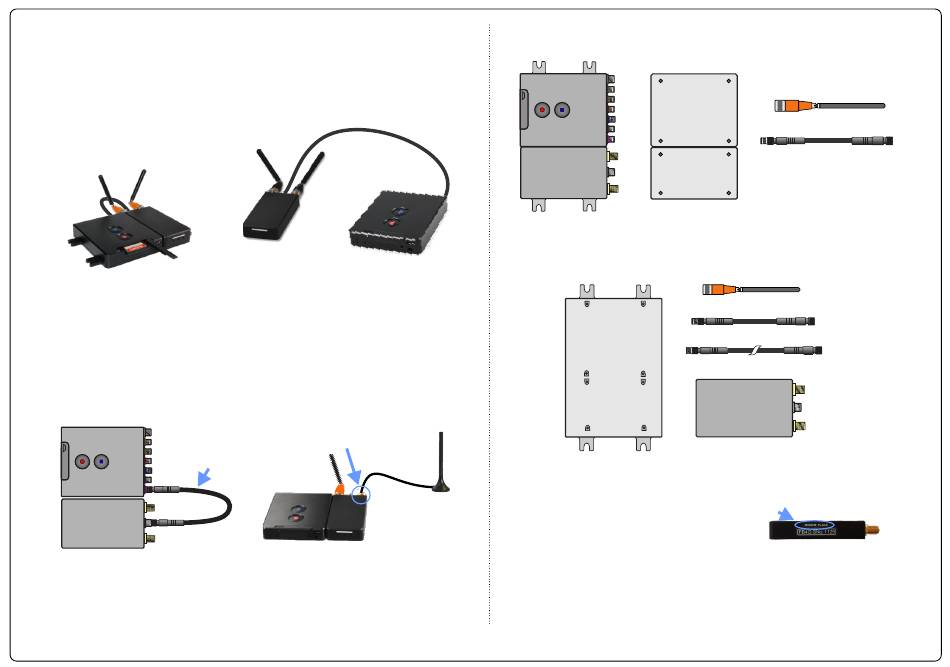

1) FlashBack-4G Quick Setup Guide
The FlashBack-4 modem module is a simple upgrade to provide a cellular
network connection to Ovation Systems' FlashBack-4 HD DVR / video streamer.
FB-4G is supplied in two forms: as an upgrade to an existing FlashBack-4 DVR
or as the DVR/ modem combined (see opposite). In either case, the modem and
the DVR can be mounted side by side or separately as required.
FlashBack-4 & 4G
on one baseplate
2) Installation:
The FlashBack-4 DVR and 4G modem module must be connected with an
i-Conex lead (up to 0.5m) as shown below. This provides the data and power
connection between the units. There are two antenna inputs, the primary input
should always be used first.
FlashBack-4
i-Conex
jumper cable
Secondary
antenna
4G Modem
Module
Primary
antenna
IMPORTANT: When operating FlashBack-4 with the 4G modem, the
recommended DC input range is 9 to 30V, rather than 6 to 30 Volts when not
using the modem.
Full information is available from Ovation's secure download site
Cable up to
0.5 M
FlashBack-4G
FlashBack-4
Modem module
DVR
External antenna
connection
www.ovation2.co.uk
3) Part Numbers / Inventory:
FlashBack-4
4G Modem
Module
1 x FB4G on one baseplate
FlashBack-4 with 4G modem supplied on one base plate.
Part numbers; FB4G-5918 (USA), FB4G-5936 (EU)
(additional items supplied over and above the standard FlashBack-4 kit)
Space for mounting an
existing FlashBack-4
Dual baseplate
Space for mounting
the modem module
4G modem module mount
M12894GMOUNT
4G modem upgrade for existing FlashBack-4.
Part numbers; FB4G-5919 (USA), FB4G-5937 (EU)
Modem Type Label:
PLS8-E: Europe / rest of world
PLS8-X: USA (GSM/ 4G LTE / Verizon 4G LTE)*
PLS8-US: USA (GSM/ 4G LTE)
*FlashBack-4 PLS8-X modems with a serial number of 1315 or higher, running
V1.6.203 firmware or higher, are certified for use by Verizon. Verizon 4G SIM cards
may be purchased quoting the device type "FB4G" and the unique IMEI number of the
modem. PLS8-X modems with serial numbers lower than 1315 may be used with
Verizon 4G SIM cards that have previously been provisioned by another Verizon
approved device.
. To gain access, email support@ovation.co.uk
1 x Spare FB4 baseplate
M1264BASE
FlashBack-4
baseplate
2 x Penta-band antenna
FB4GA-5944
1 x Short i-Conex extension (40 mm)
IC1C-5873
Modem
baseplate
1 x Spare modem baseplate
M1289BASE
2 x Penta-band antenna
FB4GA-5944
1 x Short i-Conex extension (40 mm)
IC1C-5873
1 x Medium i-Conex extension (0.5M)
IC1C-5650
4G Modem
Module
4G modem module
FB4G-5943 (USA) FB4G-5945(EU)
with the serial number of one of your units.
V1.6-Issue-2
Page 1 of 2
