QLT INTRGB4E Installation Manual

Advertisement

Quick Links

Guida di Installazione INTRGB4E
IT
INTRGB4E Alimentatore RGBW con comando DALI2 DT8,
Pulsante, e DMX - Programmabile per cromoterapia - Slave -
Uscita PWM per strisce LED
Dati tecnici
Tensione di alimentazione
12..24V DC
Fattore di potenza
0,99
Corrente massima
12,5A
Efficienza
>93%
Potenza assorbita a riposo
<0,5W
Tensione di uscita
24V+-5%
Ingresso di comando 1
DALI2 DT8 RGBWAF max 1,5mA
Push button high voltage
Ingresso di comando 2
DMX (terminatore a bordo)
Ingresso di comando 3
Pulsante bassa tensione
10 m con 0.5 – 2.5mmq
Lunghezza cavi pulsante
DIP Switch
Selezione degli ingressi
Frequenza operativa
250Hz PWM anodo comune
Lineare o esponenziale
Regolazione
4 x 3,125A( DMX ) 4 x 6,25A ( DALI Push )
Max corrente di uscita 4 ch
Max corrente di uscita 3 ch
3 x 4,16A( DMX ) 3 x 6,25A ( DALI Push )
Max potenza del carico
300W@24V DMX 600W@24VDALI/Push
4 x 10W
Minima potenza uscita
Carico aperto, corto circuito, sovraccarico,
Protezioni
sovratemperatura
Classe II SELV
Isolamento
Morsetti a vite o rapidi 0.5-2.5mmq
Connessioni segnale
Morsetti a carrello 4mmq
Connessioni potenza
-10°C ... +45°C
Temperatura operativa
70°
TC punto di controllo
-15°C ... +60°C
Temperatura magazzino
Dimensioni LxPxA
210x75x35 mm
340g
Peso
IP 40
Grado di protezione
Impostazioni dei DIPSWITCH ad apparecchio spento per
almeno 30 secondi
Nota sulla sicurezza
I
nstallazione consentita solo da personale specializzato
Togliere alimentazione prima del collegamento
Conservare il presente documento in luogo sicuro
Rispettare le norme sulla sicurezza e prevenzione
infortuni
Smaltire secondo indicazioni riportate
R
QLT
Qualitron s.r.l. Via Dolomiti 15 20027 Rescaldina ( Milano ) Italy WWW.QLT.IT
Il prodotto è conforme alle norme e direttive UE
2014/35/EU (LVD); 2014/30/EU (EMC); RoHs 2011/65/EU +
2015/863/EU (RoHs);
2009/125/ECODESIGN regulation (EU) n°2019/2020 and 341/2021
amendment EN 61347-2-11:2001 + A1:2017; EN 61347-1:2015
EN 55015:2019 + A11:2020; EN 61000-3-3:2013; EN 61457:2009;
EN IEC 61000-3-2:2019 + A1:2021
EN 63000:2018
EN IEC 62442-3:2022
IEC 62386-102:2014 + AMD1:2018; IEC 62386-209:2018
Area d'applicazione
Il dispositivo può solo:
• essere usato per le applicazioni specificate.
• essere usato per l'installazione sicura in un ambiente
asciutto e pulito.
• essere installato in modo tale che l'accesso sia possibile
solo usando un utensile.
• rispettare sempre i dati di targa
Scatola singola
Inner Package
Questo documento
This document
www.qlt.it
L'apparecchio
The Device
110
M
SELV
Pno
Psb
Pnet
Load
Always ON
0,5W
0,5W
0,5W
qlt@qlt.it
Installation Guide INTRGB4E
EN
INTRGB4E RGBW power supply controlled by DALI 2 DT8,
Push button and DMX - Chromoterapy programme - PWM
output for strip Led
Technical Data
12..24V DC
Rated supply voltage
0,99
Power factor
12,5A
Max. main current
>93%
Efficiency
<0,5W
Standby power
24V+-5%
Output
DALI2 DT8 RGBWAF max 1,5mA
Input 1
Push Button high Voltage
DMX (terminator on board)
Input 2
Low Voltage Push Button
Input 3
10 m with 0.5 – 2.5mmq
Push line Max cable lenght
DIP Switch
Input selector
250Hz PWM common anode
Operating frequencies
Linear or exponential
Regulation
4 x 3,125A( DMX ) 4 x 6,25A ( DALI Push )
Max output current 4 ch
3 x 4,16A( DMX ) 3 x 6,25A ( DALI Push )
Max output power 3ch
300W@24V DMX 600W@24VDALI/Push
Max Output load
4 x 10W
Min Output load
Open load, short circuit, overload and
Protections
overtemperature
Class II SELV
Insulation
Fast and screw connectors 0.5-2.5mmq
Signal Connections
4mmq connectors
Output connections
-10°C ... +45°C
Operating temperature
70°
TC point
-15°C ... +60°C
Storage temperature
210x75x35 mm
Dimensions LxPxA
340g
Weight
IP 40
Protection degree
DIPSWITCH settings with the device turned off for 30 sec
M
Safety note
Installation of this device may only be carried out by
specialist staff .
Switch off the mains supply before device connection
Keep this document in a safe place
Respect the safety and accident prevention regulations
Dispose of according to instructions
Standard and Directives
2014/35/EU (LVD); 2014/30/EU (EMC); RoHs 2011/65/EU +
2015/863/EU (RoHs);
2009/125/ECODESIGN regulation (EU) n°2019/2020 and 341/2021
amendment EN 61347-2-11:2001 + A1:2017; EN 61347-1:2015
EN 55015:2019 + A11:2020; EN 61000-3-3:2013; EN 61457:2009;
EN IEC 61000-3-2:2019 + A1:2021
EN 63000:2018 EN IEC 62442-3:2022
IEC 62386-102:2014 + AMD1:2018; IEC 62386-209:2018
Areas of application
The device may only:
• be used for the specified applications .
• be used for safe installation in dry and clean environment.
• be installed in such a way that access is only possible
using a tool
• Respect label data

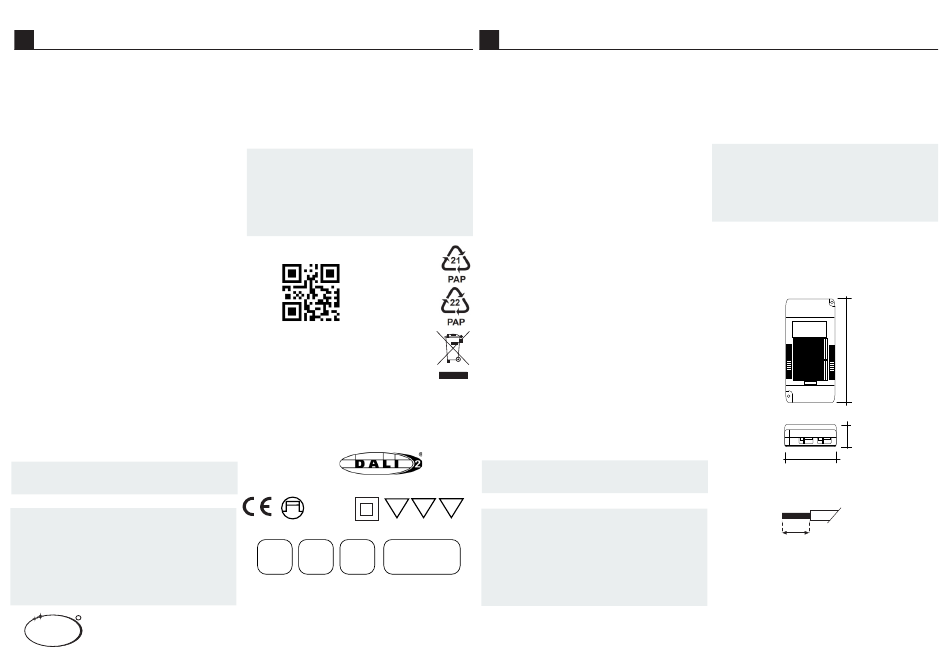

Dimensions (mm)
L
A
P
4..7
mm
Connections
2
0.5–2.5
mm /
13–20
AWG
solid/f ine-stranded
a f ilo unico/a f ili sottili
Installation guide - Rev 306_14
