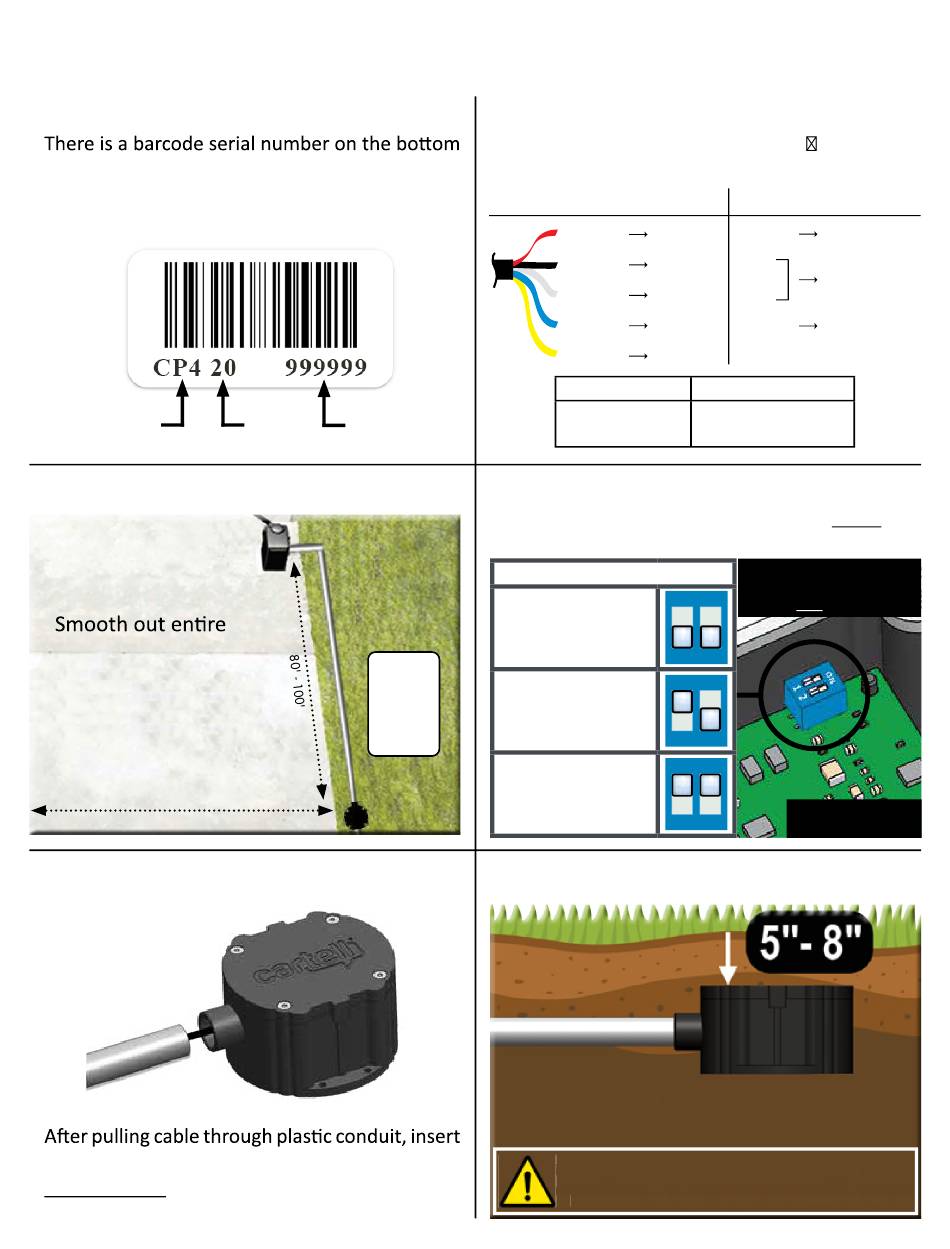

Global Access CP-4 Installation Instructions

1. SERIAL NUMBER
of "puck" and on the product box. When calling to
talk about your product, please have this number
handy.
PRODUCT
CODE
2. TRENCH PIPE & CABLE
• Trench 1/2" PVC pipe
to placement of CP-4
•
length of cable before
pulling thru PVC pipe
• Gently pull cable thru
PVC pipe (may need
wire lubricant)
12'
3. CONDUIT & SLIP JOINT
conduit inside slip joint on "puck."
DO NOT GLUE (to un-install later, if needed).
INSTALLATION INSTRUCTIONS FOR
CP-4 AUTOMATIC GATE OPENER
YEAR SERIAL
MADE NUMBER
NOTE:
Warranty
void if
cable not
run in
conduit
4. CONNECT TO GATE
CP-4 works with all gate operators powered or
solar, single or dual free exit terminals.
DUAL EXIT TERMINAL
RED POWER +
BLACK POWER ─
WHITE COMMON
BLUE EXIT N.O.
YELLOW EXIT N.C.
VOLTAGE
8-24 VAC
8-30 VDC
5. TEST SENSITIVITY
NOTE: IN MOST CASES DO
ADJUST SENSITIVITY OR REMOVE LID.
SENSITIVITY ADJUSTMENT
HIGH (Default)
Detects vehicle going
5 MPH 12-14' away
1 & 2 in OFF position
MEDIUM
Detects vehicle going
5 MPH 6-8' away
1 ON & 2 OFF position
LOW
Detects vehicle going
5 MPH 2-4' away
1 & 2 in ON position
6. BURY CONDUIT & "PUCK"
Trigger gate by swinging steel over puck (or
driving by). If gate opens correctly, bury conduit
and puck at least 5" - 8" below surface.
IF ANIMALS TRAMPLING ON TOP OF BURIED
PUCK OPEN THE GATE, BURY PUCK DEEPER, PACK
DIRT AROUND IT, AND MAKE IT IMMOVABLE.
SINGLE EXIT TERMINAL
RED POWER +
BLACK
GND or COM
WHITE
FREE EXIT
BLUE
or OPEN
TERMINAL
CURRENT
Standby: 30-70 μA
Alarm: 40-60 mA
NOT
NOTE: HIGHEST SENSITIVITY
IS WITH DIP SWITCHES IN
ON
THE OFF POSITION
1 2
ON
1 2
ON
NOTE: DIP SWITCH
1 2
COLOR MAY VARY
