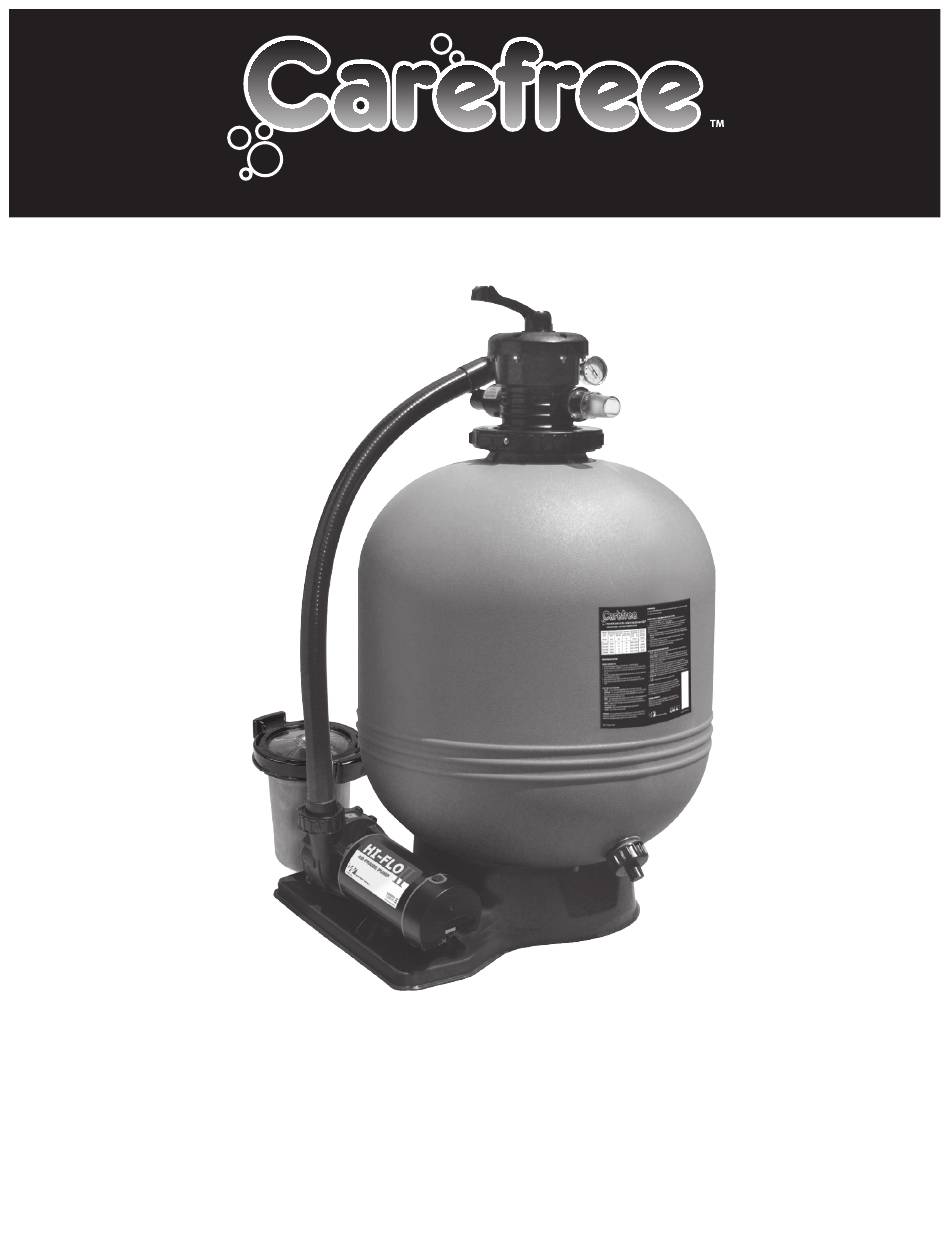

- Page 1 HIGH RATE SAND FILTER STANDARD SYSTEM - STANDARD FITTINGS PACKAGE OWNER’S MANUAL...
-
Page 2: Installation Instructions
IMPORTANT: Do no raise water level above pool return line or skimmer throat until installation is complete. Your Carefree Standard Sand Filter System is shipped complete from Waterway, with all needed components ready for assembly and installation. Open shipping carton in an upright position checking contents, as follows: System will require a 110 Volt / 20 Amp service. - Page 3 CAREFREE STANDARD SAND FILTER SYSTEM PARTS LIST Item Part No. Description See instructions for 425-1928 Waste Adapter Fitting Optional for hard plumbing proper valve alignment. 1 ½" 90° Sweep Elbow - Union x Slip 805-0224 O-Ring Not Included 830-3000 0-60 PSI Gauge (500-1901) WVS003 Multi-Port Valve Assembly...
-
Page 4: Troubleshooting
For product registration visit: www.waterwayplastics.com. For Warranty questions or claims please contact point of purchase. Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2025 Waterway Plastics 810-0155.0425... - Page 5 Remove clear trap lid, and wrench in place. split-nut after installation to ensure valve is place gasket in trap nut. Thread onto pump. DO NOT OVER TIGHTEN. Remember to not loose. replace trap lid. ©2025 Waterway Plastics 810-0164.0425...
- Page 6 (4 wraps is ideal) and thread into DO NOT OVER TIGHTEN. of pump basket. valve. Install waste adapter by pushing O-ring over threads of adapter and threading into waste port. ©2025 Waterway Plastics 810-0164.0425...
- Page 7 For product registration visit: www.waterwayplastics.com. For Warranty questions or claims please contact point of purchase. Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2025 Waterway Plastics 810-0164.0425...
- Page 8 Designed, Engineered & Manufactured in the USA. 2200 East Sturgis Road, Oxnard CA 93030 • Phone 805.981.0262 • Fax 805.981.9403 www.waterwayplastics.com • waterway@waterwayplastics.com ©2025 Waterway Plastics 810-0066-EFS.0425...
- Page 9 REPLACING A MULTI-PORT VALVE ON A SAND FILTER FOR WATERWAY OVAL FILTERS 1) Remove connections and unthread the old multi-port body from the filter body. Multi-Port 2) Using a Phillips screwdriver - remove the screw from the threaded Valve sleeve on the filter body...
