ASH120 User Manual
Smart Hub

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASH120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arize ASH120

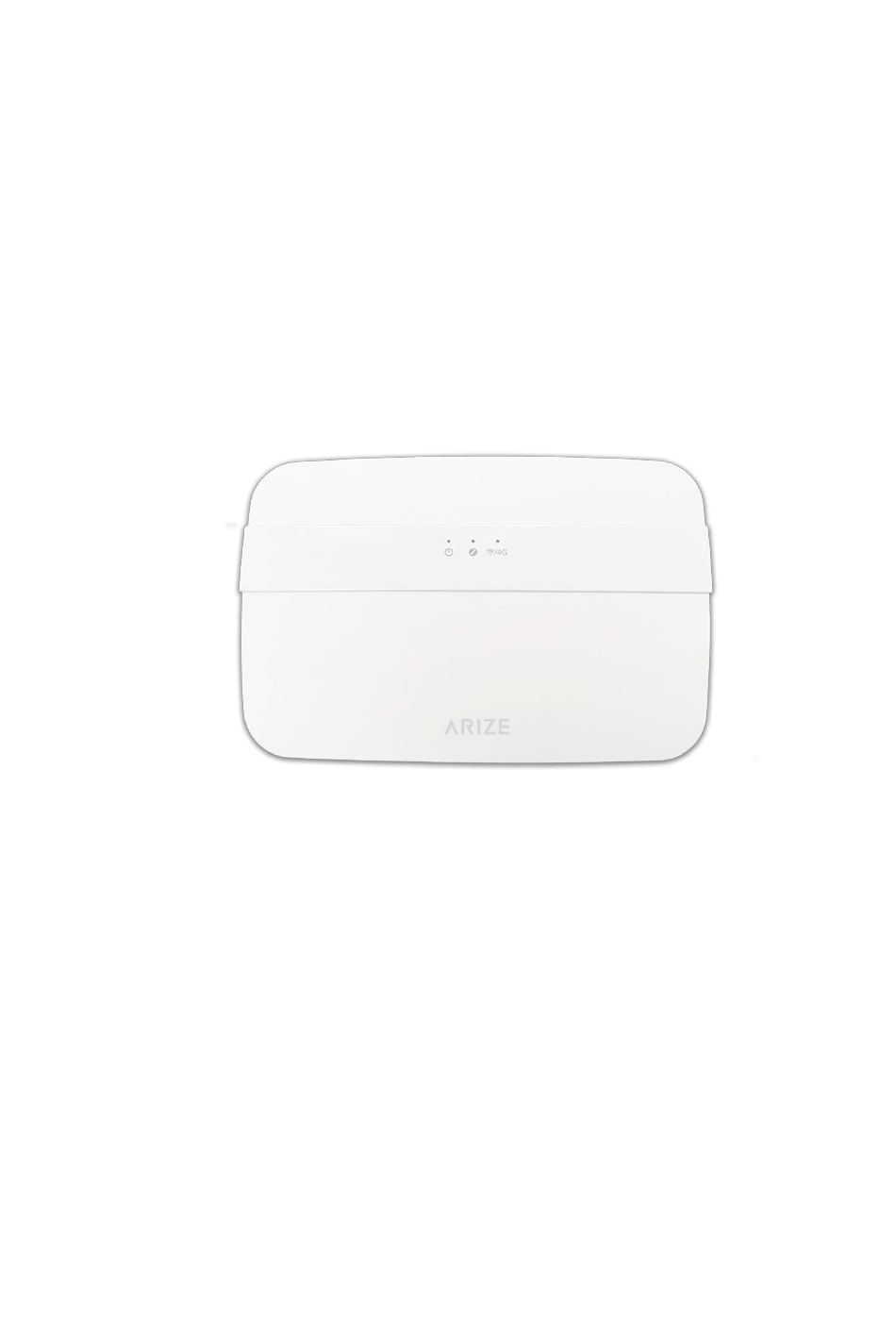

  • Page 1 ASH120 User Manual Smart Hub...
  • Page 2 1. Introduction 1.1 Purpose& Description The ASH120 is a smart hub product used in smart home, intelligent security industry, pension services. It’s a central device, support LTE-Cat 1, Wi-Fi, Bluetooth and Zigbee3.0, wireless protocol. User can connect the network through LTE-Cat1, Wi-Fi and Ethernet. In addition, smart sensors can be connected through Zigbee 3.0.

  • Page 3: Installation And Configuration

    & at least 5 feet above ground. 2）Plug the hub into a power outlet using the provided power adaptor and cables, waiting green power indicator from flashing to steady on. 2.2 Configuration 2.2.1Configure WiFi Open Arize Install APP, click WiFi Pairing.
  • Page 4 Select device, and scan QR code of the device. Press reset button 2s, the network indicator starts flashing. Connect device...
  • Page 5 Select a 2.4G network, and enter WiFi password. Activating device successfully.
  • Page 6 2.2.2 Add the Hub to the Unit/Room Select Community/Unit and Room you want to put device. Add smart hub, then test it.
  • Page 7 2.2.3 Add Zigbee sub device Make sure your community, unit, and select room you want to add entry sensor. Select device model, and then Scan QR code.
  • Page 8 Connecting successfully, then run test mode,In this way the Zigbee sub-device is paired with the hub. Then you can use the Resident APP to view device status and received security alert.
  • Page 9 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 10 FCC SDOC SUPPLIER'S DECLARATION OF CONFORMITY FCC SDOC SUPPLIER'S DECLARATION OF CONFORMITY Arize Corporation hereby declares that this equipment is in compliance with the FCC rules. The declaration of conformity may be consulted in the support section of our Web site,...
