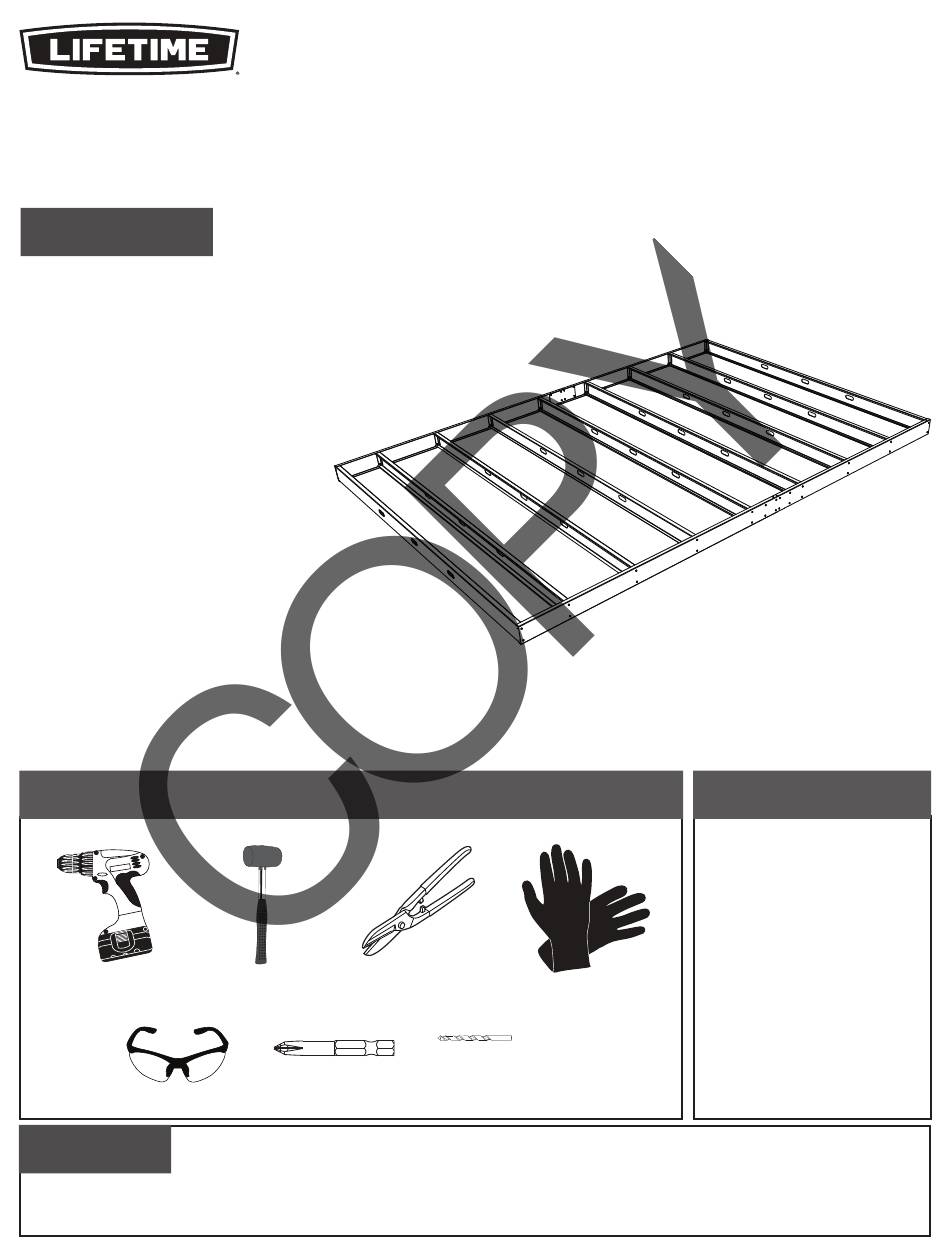

METAL FOUNDATION KIT
FOR AN 11' x 16'
LIFETIME
MODEL 1197109
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
• Nine sheets of oriented strand board (OSB)
(required but not included—see page 7)
• Gravel or dirt (may be required but not
included—see page 21)
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED (NOT INCLUDED—UNLESS INDICATED OTHERWISE)
QUESTIONS?
CONTACT LIFETIME CUSTOMER SERVICE:
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
®
SHED
Metal Shears
Live Chat: www.lifetime.com
(click on "LIVE CHAT" tab)
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
5/16" (8 mm)
MODEL# AND PRODUCT ID
Model Number: 1197109
Product ID:
TABLE OF CONTENTS
Icon Legend................................4
Warnings & Notices.....................5
Platform Construction.................6
Cleaning & Care........................23
Registration..........................24
Warranty.................................25
