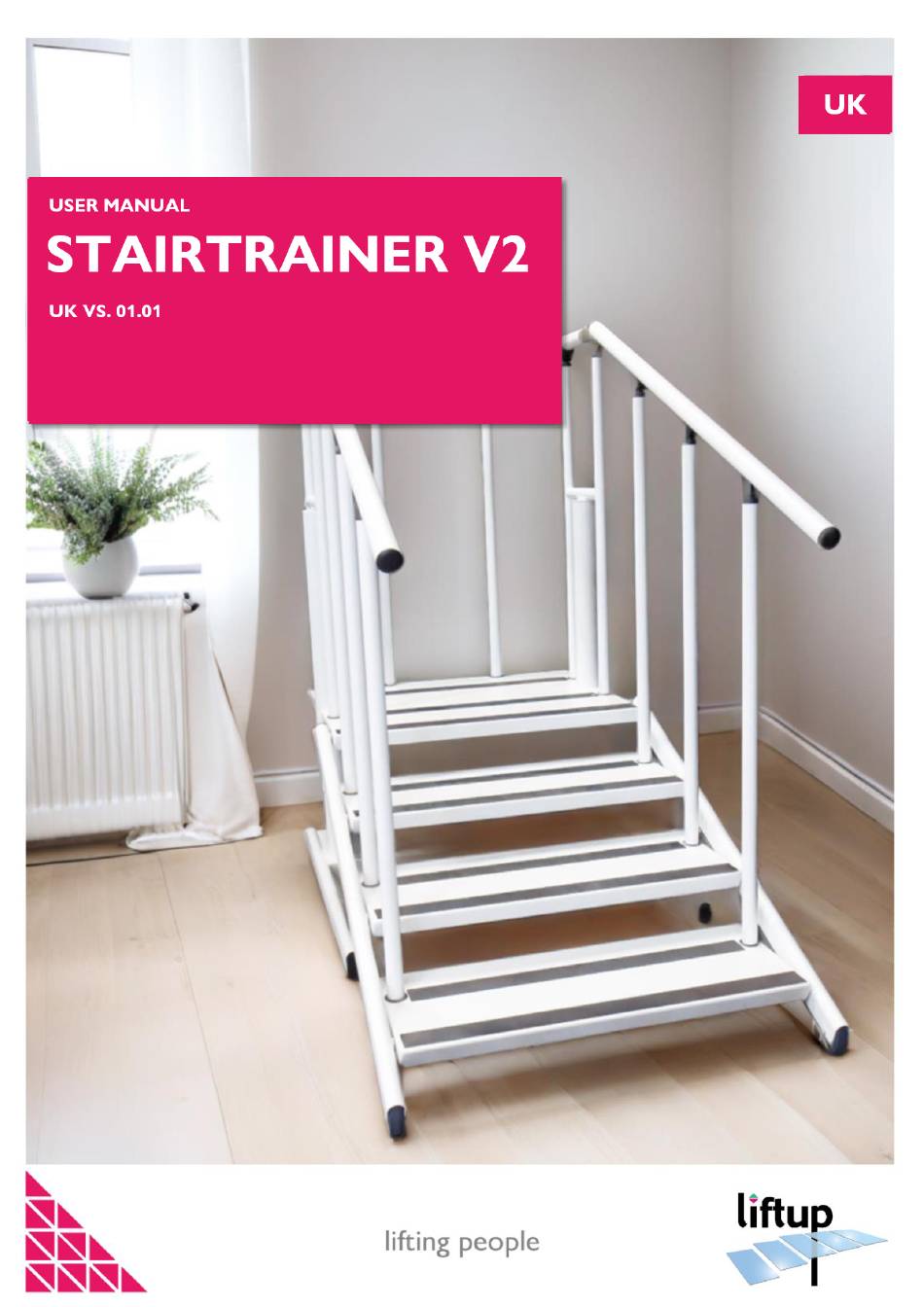

Summary of Contents for liftup StairTrainer V2
-
Page 2: Table Of Contents
Contents Foreword ..............................2 EC declaration of conformity ....................... 3 Factory Acceptance Test (FAT)......................4 Terms of use ............................. 5 Technical specifications ........................6 5.1 Dimensional drawings ........................6 Safety instructions ........................... 7 6.1 Handling and repair ..........................7 6.2 Unintended movements of the StairTrainer ................7 6.3 Operating conditions ........................ -
Page 3: Foreword
Foreword Congratulations on purchasing the StairTrainer V2. This is an original user manual for the StairTrainer V2. Hereinafter we also use the term ‘training aid’ for the StairTrainer V2. IMPORTANT! It is important to read this manual before using the training aid. -
Page 4: Ec Declaration Of Conformity
EC declaration of conformity... -
Page 5: Factory Acceptance Test (Fat)
Factory Acceptance Test (FAT) -
Page 6: Terms Of Use
This means that Liftup A/S cannot be held responsible for any inadvertent use or for what may happen if the product is not used as intended. -
Page 7: Technical Specifications
Technical specifications Power: 24VDC battery Max. load: 180 kg/396.8 lbs External dimensions: H 1098 mm B 801 mm L 1638 mm H 43.23 in B 31.54 in L 64.49 in Dead weight: 89 kg/196.2 lbs Noise level: < 50 dB Duty cycle: 2 min. -
Page 8: Safety Instructions
Safety instructions 6.1 Handling and repair Do not attempt to install or repair the StairTrainer yourself. This MUST be done by an authorized service technician. The training aid must never be exposed to strong shocks/bumps when moved around, as this may have an impact on the functionality. -
Page 9: Function Description
Function description The StairTrainer is a so-called “Hold to run” machine, i.e., the push buttons must be pushed in throughout the entire operation. The training aid is easy to operate. The user can choose whether the Stairtrainer should run up or down by means of the arrow keys on the operating panel. -
Page 10: Instructions For The Use
Instructions for the use Before running the StairTrainer to the requested height, the ’anti’tilt’ support rails must be pulled out. -
Page 11: Height Adjustment
The StairTrainer is activated and operated by means of the arrow keys on the operating panel. UP arrow (): Moves the training aid upwards DOWN arrow (): Moves the training aid downwards 9.1 Height adjustment It is easy to adjust the height of the StairTrainer to match the current need: Press and hold the appropriate arrow key to run the training aid up or down. -
Page 12: Transfer/Relocation
9.2 Transfer/relocation The StairTrainer can be moved around by one person. The device is equipped with 3 swivel wheels at the back of the stairs, and 2 fixed wheels, situated on each side frame, on which it can roll. • Run the StairTrainer all the way down until it rests on the wheels. -
Page 13: Child Railing (Optional Equipment)
9.3 Child railing (optional equipment) A child railing can be purchased separately in case the device is to be used by children. Mount the railing on the bottom and top balusters. Adjust the height by loosening the screw, allowing the bracket to be pushed up/down until the optimal height is reached. Secure the child railing by retightening the screw. -
Page 14: Operation
Operation 10.1 Calibration after power failure when in use If the battery runs out of power when the StairTrainer is in use, or if the system registers any other irregularity, the training aid must be calibrated. Run the StairTrainer all the way down until it rests on the lowest level, where the calibration will be completed. -
Page 15: Service Inspections
See also: https://www.liftup.dk/en/contact. IMPORTANT! Before any inspection on or under the StairTrainer, it MUST be ensured that no one... -
Page 16: Service Report For Use In Service Inspections
12.2 Service report for use in service inspections... -
Page 17: Service Logbook
Service logbook The form (like the example below) must be completed after each inspection. -
Page 18: Spare Parts And Accessories
For information regarding spare parts and services, please contact our distributors: https://www.liftup.dk/en/contact Part no. Description 110281 Cable relief for Spiral cable, StairTrainer V2 110301 RJ45 Spiral cable female/male for StairTrainer V2 110339 Actuator JS36ZC1-3-S for StairTrainer V2 100064 Wheel ø75 mm for Side frame... -
Page 19: Right Of Complaint
Right of complaint The right of complaint encompasses the at any time applicable rules regarding the right of complaint. Liftup offers full right of complaint on spare parts for two years provided the product is registered with Liftup (http://lpr.liftup.dk/). ... - Page 20 – to being smart and pleasurable design elements for everyone to enjoy. Distributed by: Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | T: +45 9686 3020 | M: support@liftup.dk | CVR: DK-1015 3964...
