SM1050B Us er Ma nual
SM1050B

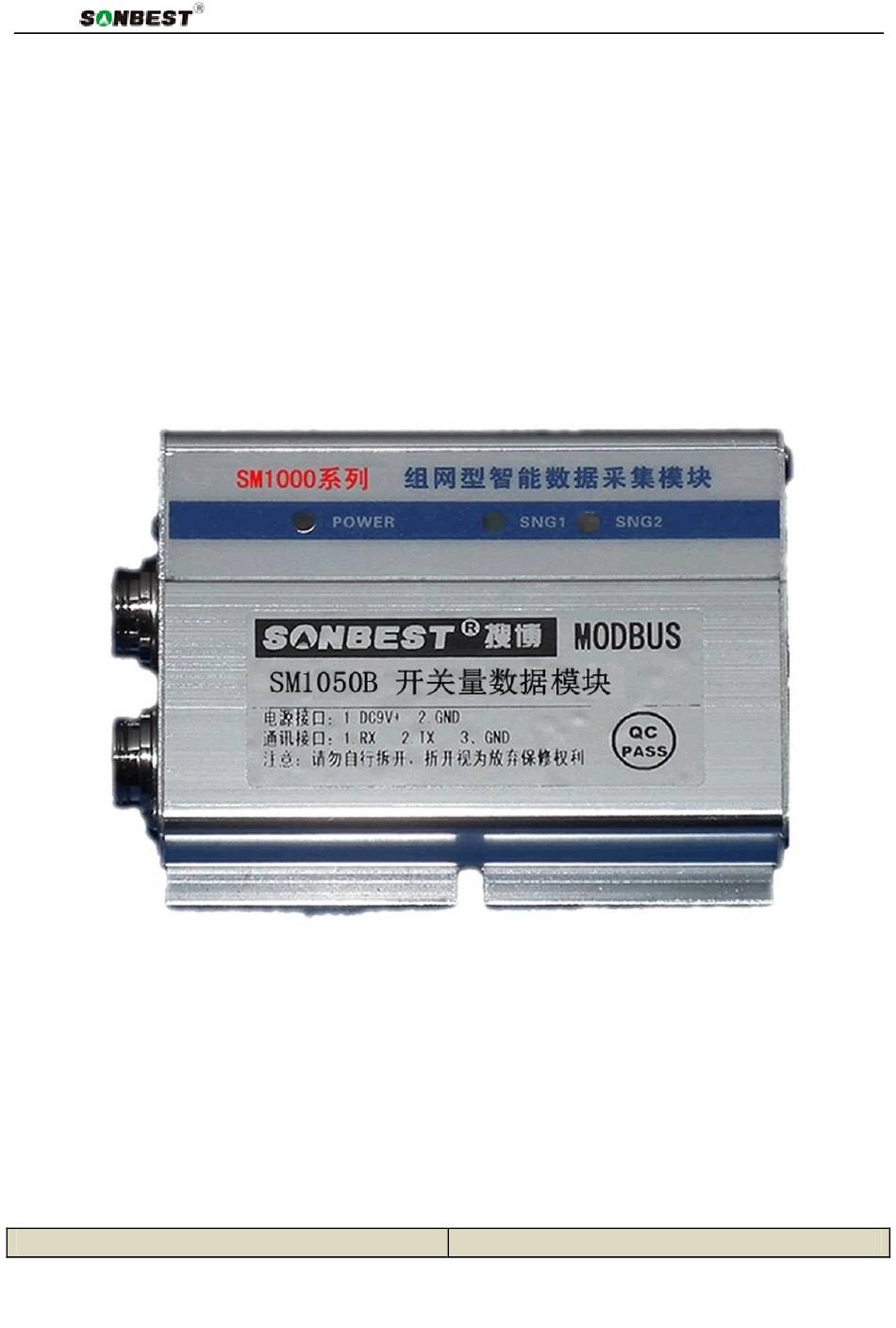

RS485 interface switch acquisition module
User Manual
File Version: V21.3.24
SM1050B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and
other instruments or systems for monitoring 开关量 state quantities.The internal use of high-precision
sensing core and related devices to ensure high reliability and excellent long-term stability,can be
customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output
methods.
Technical Parameters
Technical parameter
Parameter value
best Industrial Co., Ltd
Page1
Sha nghai Son
