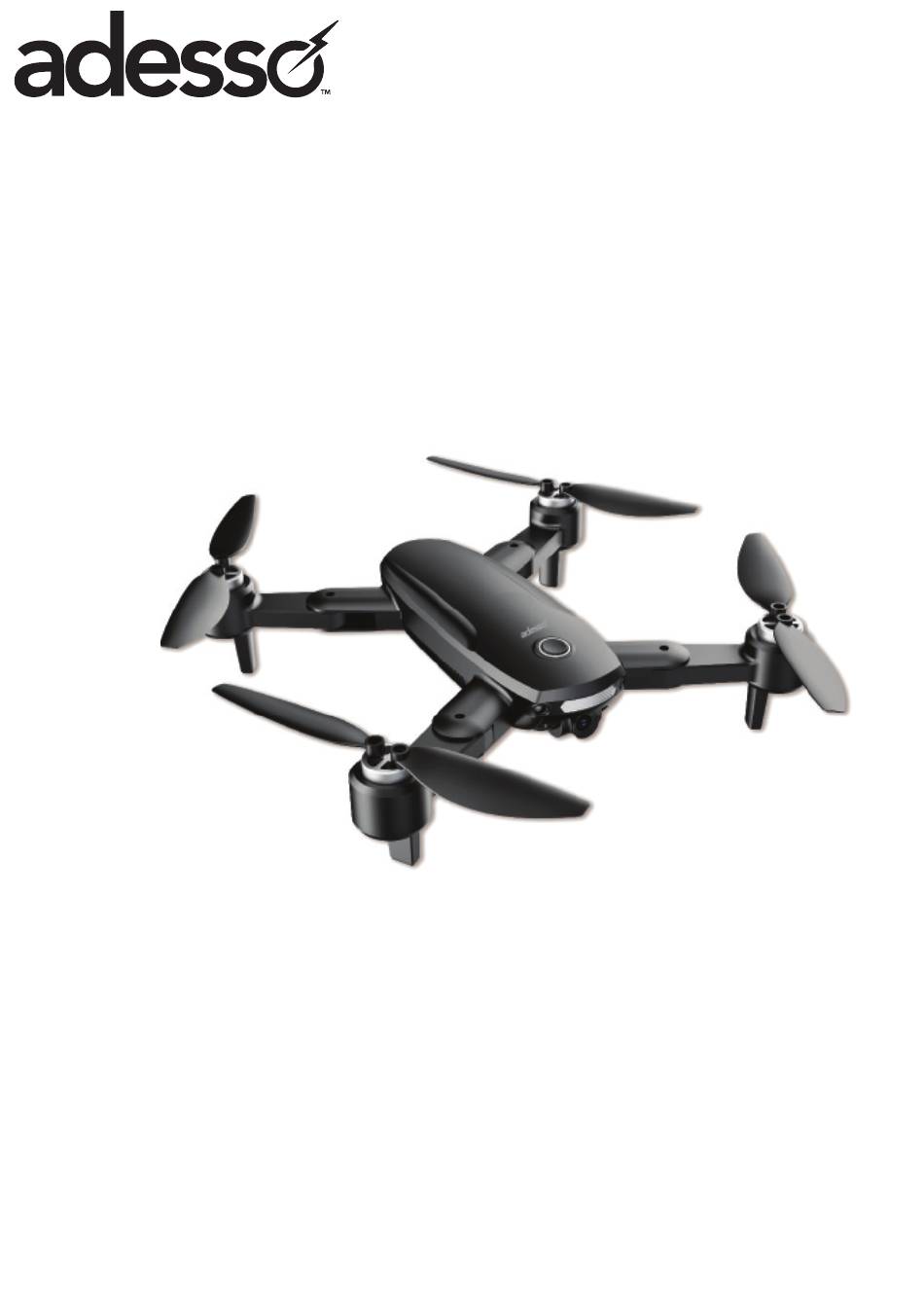

- Page 1 CyberDrone X4 Drone with 4K FVP Camera, 5G, GPS, and WIFI QuickGuide English www.adesso.com...
-
Page 2: Limited Warranty
Adessoand products where the sealed assembly trace has been broken. If you discover a defect, Adesso will, at its option, repair or replace the product at nocharge to you prowided you return it during the warranty period with freight chargespre-paid to Adesso. -
Page 3: Specifications
Introduction The CyberDrone X4 is a lightweight and portable drone equipped with a 4k FPV camera and a gimbal for stable, high-quality video and photo capture. It offers dual control options via a 2.4GHz remote controller or a mobile app, giving users flexible ways to pilot the drone. -
Page 4: Safety Precaution
Safety Precaution NOTICE: This drone is a sophisticated consumer device and should be operated with care and responsibility. Please ensure that you read and follow all instructions prior to use. Disassembly of the product is not recommended, as it may result in personal injury, damage to the device and void the warranty. -
Page 5: Package Contents
Protect Your Eyes: Avoid staring directly into the drone’s LED lights for prolonged periods, as this may cause eye strain or discomfort. Package Contents Charging Cable CyberDrone X4 Remote Control Screw Driver Li-Polymer Replacement... -
Page 6: Remote Description
Drone Description Battery Propeller Blade Motor Power Button Camera Remote Description One key take o & landing Power button GPS switch One key return (long press) (long press) indoors/outdoors (long press) level calibration Light Switch (short press) Headless Mode Geomagnetic calibration (long press) (long press) Press both buttons... -
Page 7: Operation Controls
Remote Description Cont. Camera servo Speed control adjustment SD card slot Type-C port Operation Controls Turn right Rotate left Forward Ascend Rotate right Turn left Descend Backward --06--... - Page 8 Functions Press to power on or power o the remote. Power Button Press and hold for 2-3 seconds to enter headless mode and Headless Mode press and hold for 2-3 seconds to exit headless mode One Key Take-o Press to take o or land the drone. / Landing Press to have the drone return automatically to it’s last saved One Key Return...
-
Page 9: Drone Battery Charging
Drone Battery Charging Use the indentation to grip the battery and slide it out of the battery compartment. Connect the battery to the included USB cable, Then plug the USB cable into a USB charging adapter or a USB port (for best results, use a 5V, 1-2A adapter). While charging, an LED light on the battery will illuminate and will turn o when charging is complete. -
Page 10: Indoor Mode
The drone will automatically search for GPS signals. After a few minutes, once the GPS signal is successfully acquired, the rear red light will turn blue. APP: Activate the Wi-Fi function on your mobile device, select “CyberDrone X4” from the available Wi-Fi list, and launch the app. Indoor Mode: Before each ight, the drone's compass must be calibrated. -
Page 11: Outdoor Mode
Outdoor Mode: Before each ight, the drone's compass must be calibrated. Press the GPS button on the remote control to begin calibration. Pick up the drone and rotate it horizontally four or ve times. The front white light will ash quickly, and the rear LED will remain solid. -
Page 12: Flight Controls
Flight Controls One key Press the one key take o /return button to perform take o take o or landing automatically. /land Press the return button and GPS switch button Emergency simultaneously for 3 seconds to activate the stop emergency stop function. The RTH function allows the drone to return to its last recorded TAKEOFF point. - Page 13 Failsafe RTH: Failsafe RTH is triggered when the drone loses its connection to the transmitter. In this mode, the drone will automatically return to hover approximately 20 meters away from the operator and attempt to reconnect with the transmitter. Once reconnected, the operator can regain manual control of the drone.
-
Page 14: App Instructions
2. Once the LED’s start ashing, go to your smart phone’s settings and select the app- priate WIFI network (Adesso CyberDrone X4) as show below. Adesso CyberDrone X4 3.Locate the “Adesso CyberDrone X4” model in the app and tap “connect device” to access the operation interface. Adesso CyberDrone X4... - Page 15 Enter the Operation Interface Tap the “Play” button on the bottom right to enter the operation interface. Adesso CyberDrone X4 Adesso CyberDrone X4 Ascend Forward Turn right Turn left Rotate right Rotate left Descend Backward...
- Page 16 App Interface Battery Level Flight Speed Emergency Stop More Options Unlock/Lock Direction Flying Distance Return Video Photo GPS Satellites Flight Altitude Take o /Land Back 180° ip Picture In Calibration Switch Lens Speed Picture Navigation Multi-Point One Click Smart Follow Gesture Photo Headless Mode Guidance...
- Page 17 FCC Compliant Statement Changes or modi cations not expressly approved by the responsible party for compliance may void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: This device must not cause harmful interference.
- Page 18 Reorient or relocate the receiving antenna. Increase the distance between the equipment and the receiver. Connect the equipment to an outlet on a circuit di erent from the one to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for assistance.
- Page 19 --19--...
- Page 20 --20--...
- Page 21 --21--...
- Page 22 --22--...
