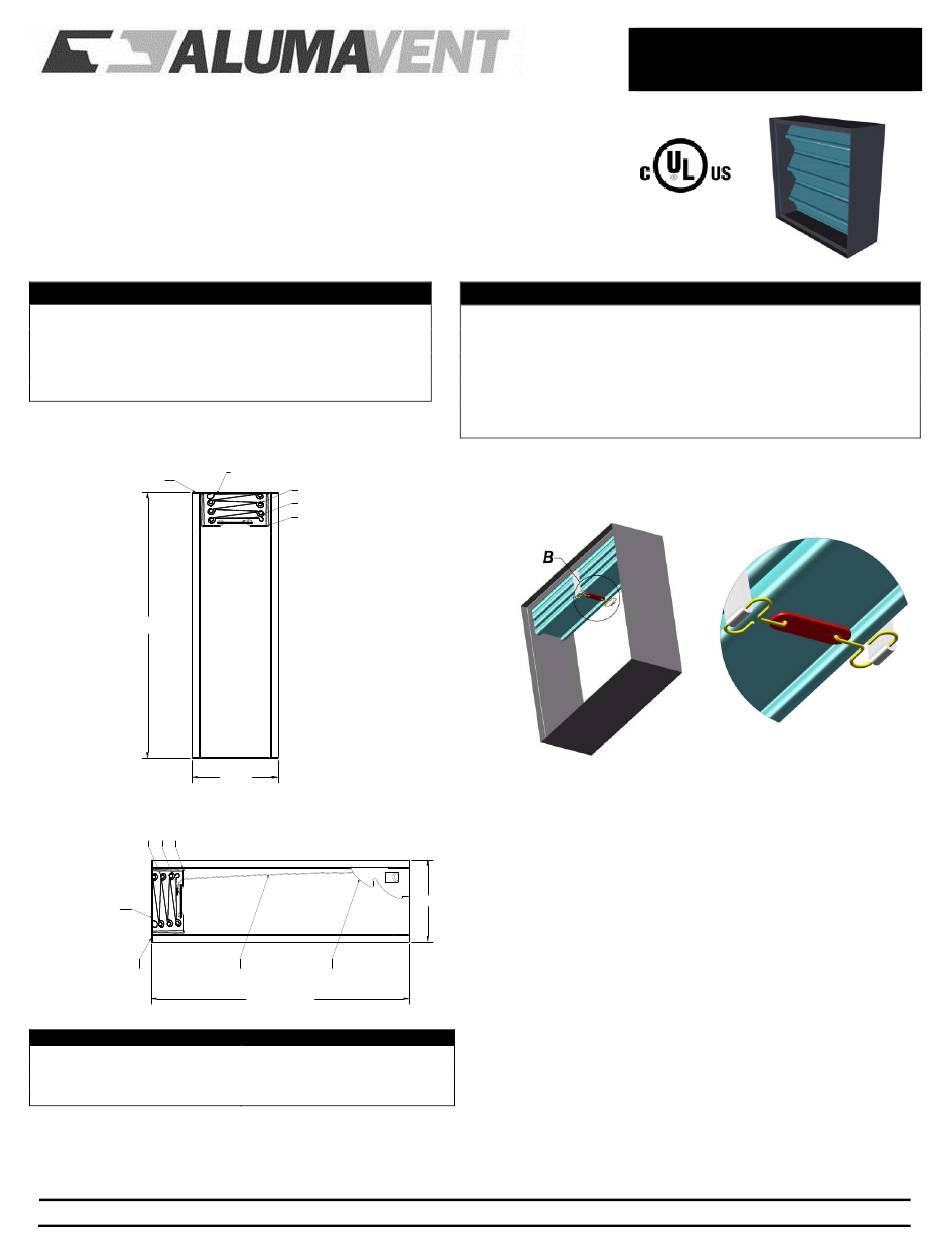

ALUMAVENT 5100S Series Quick Start Manual

CONTROL DAMPERS & FIRE DAMPERS
• UL 555 & CAN/ULC-S112 Classified Static
Fire Damper, 1½ Hr. Label (File # R25565).
• NFPA 80, 90A & 101 compliant.
• NBC and IBC building codes compliant.
STANDARD CONSTRUCTION
DEPTH: 4 ¼" (108).
FRAME: Roll formed 20 Ga. galvanized steel with hemmed edge.
BLADE: Roll formed 22 Ga. galvanized steel.
Interlocking curtain type blade.
FUSIBLE LINK: 165°F (74 C).
4
DUCT OPENING
1 2 3
TOP BLADE RIVETED
TO FRAME
4
FIRE DAMPER COMPONENTS
1. Blade
2. Fusible Link Assembly
3. Link Strap
4. Frame
Dimensions are shown in inches (mm).
222 CHURCH ST. S. | ALLISTON, ON. L9R 2B7 | TEL (905) 857-4700 | FAX (905) 857-4730 | 1-800-668-7214 | www.alumavent.com
TOP BLADE RIVETED
TO FRAME
1
2
3
51AVS
4.25"
51AHS
5 6
DUCT OPENING
5. Constant Force Spring
6. Lock Ramp
□
Factory supplied Sleeve – 22, 20, 18 or 16 Ga.
*Sleeve length required.
□
Round Transitions (See Model 51CR).
□
Access Door factory mounted in a common sleeve.
□
212°F (100 C) Fusible Link.
□
1 ½" x 1 ½" Retaining Angles.
MAINTENANCE RECOMMENDATIONS:
NFPA 80 advises that fire dampers be inspected and tested 1 year
after installation, then every 4 years minimum (6 years for hospitals).
4.25"
More frequent inspections may be required due to system use and air
conditions, or applicable local codes.
NOTES:
Dampers are furnished approximately ¼" (6) smaller than the given
duct dimensions.
These static dampers are UL/ULC approved for use in HVAC systems
where the fans automatically shut down in the event of a fire alarm.
1½ hr. labeled fire dampers are suitable for use in fire separations with
a fire resistance rating of 2 hours or less.
Fire dampers
manufacturer's instructions. Refer to Alumavent installation
instructions for details.
5100S SERIES
1 ½ HOUR LABEL STATIC FIRE DAMPER
VERTICAL & HORIZONTAL MOUNT
51AVS & 51AHS • TYPE A
OPTIONAL CONSTRUCTION
DETAIL B
must be installed in accordance with
