Capital
600
Code / Codice
Power consumption
Consumo di energia
Nominal current
Corrente nominale
Power supply
Alimentazione elettrica
Inrush current / Corrente di spunto
Power factor / Fattore di potenza
Electrical class / Classe elettrica
Weight / Peso
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Aerodynamic surface
Super cie massima esposta al vento

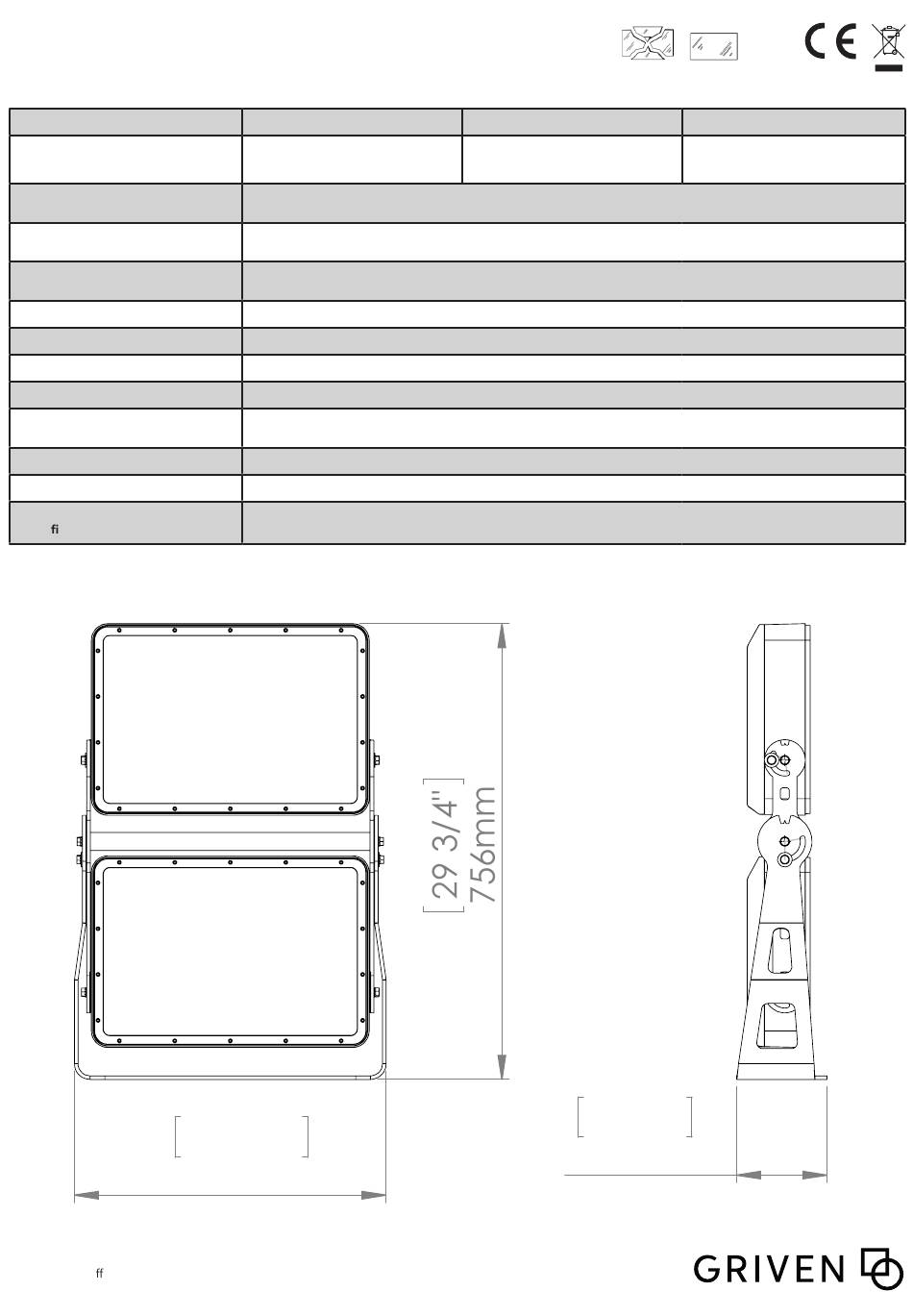

Dimensions / Dimensioni
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Go redo
Mantova - Italy
User Manual
Rev.4.0
Date: 19/01/2023
Capital 600
AL5020 - AL5022 (PE)
20 3/8"
517mm
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
Capital 600 US
AL5024 (US) - AL5025 (
US PE)
2x 256 W(RN), 2x 285 W (W) 2x 240 (MC)
2x 1.6 A (RN), 2x 1.29 A(W), 2x1.1(MC)
100-277VAC 50-60Hz
2x 70 A@240VAC, cold start
cos.φ= 0.96 (RN&W), 0.94(US)
32.8 Kg
-40°C to +50°C ( -40°F to 122°F )
IK09
Front = 0.39 m2
Side = 0.11 m2
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
AL5021 - AL5023 (PE)
I
IP67
5 7/8"
150mm
551090
Capital 600 MC
page 1 of 12
Advertisement
Summary of Contents for Capital 600
- Page 1 Capital User Manual Rev.4.0 551090 Date: 19/01/2023 Capital 600 Capital 600 US Capital 600 MC Code / Codice AL5020 - AL5022 (PE) AL5024 (US) - AL5025 ( AL5021 - AL5023 (PE) US PE) Power consumption 2x 256 W(RN), 2x 285 W (W) 2x 240 (MC)
- Page 2 Replaceable (LED only) light source by a professional professionista This product contains a light source of energy e ciency Questo prodotto contiene una sorgente luminosa di classe class: di e cienza energetica: 3000K 4000K Dynamic White RGBW 4000K page 2 of 12 Capital - Rev. 4.0...
-
Page 3: Installation - Installazione
Installation - Installazione 1/2" 12,50mm 6 7/8" 6 7/8" 175mm 175mm Vertical beam-aiming - Orientamento both screws +100° -30° both screws +100° -30° both screws A=size 13 (ISO) Wrench page 3 of 12 Capital - Rev. 4.0... - Page 4 Note: the power and signal connections of S and M cable types can be carried out by using the page 4 of 12 connection kit included in the packing box. Follow the instructions provided along with the con- nection kit. Capital - Rev. 4.0...
- Page 5 Note: the power and signal connections of S and M cable types can be carried out by using the connection kit included in the box. Follow the instructions provided along with the connection kit. page 5 of 12 Capital - Rev. 4.0...
-
Page 6: Dmx Mode
2= wireless LED status ON WIRELESS 3= wireless LED status OFF ¹ WARNING ! in this mode, no DMX control device must be present along the line. page 6 of 12 ² Only on wireless xtures Capital - Rev. 4.0... - Page 7 0-100% Green ne tuning 0-255 • Temperature: it displays the LEDs operating temperature IR=8 0-100% Blue 0-255 value. 0-100% Blue ne tuning 0-255 0-100% White 0-255 0-100% White ne tuning 0-255 page 7 of 12 Capital - Rev. 4.0...
- Page 8 Query Scene level Query Groups 0...7 Query Groups 8...15 Query Random Address High Query Random Address Middle Query Random Address Low DALI version: 1, Device Type: 6(LED), Physical Min Level: 1 (0.1%) page 8 of 12 Capital - Rev. 4.0...
- Page 9 C - Start Line Box - AL5058C with connectors / AL5058M without connectors D - Capital 600 E - Connection Cable - AL8264 L=1m (3 ft) AL8265 L=2m (6 ft) AL8266 L=3m ( 10 ft) AL8267 L=5m ( 16 ft) AL8268 L=10m ( 32 ft)
- Page 10 ATTENZIONE ! in questa modalità non deve essere presente lungo la linea nessun altro dispositivo di controllo DMX. Polar features (only on Polar Edition xtures ) Caratteristiche Polar (solo su dispositivi Polar Edition) Std. Capital 600 Polar AL5022 AL5025 AL5023 The POLAR Edition is tted with a frontal thermal glass which is particularly useful for outdoor applications.
- Page 11 11 of 12 Capital - Rev. 4.0...
- Page 12 12 of 12 Capital - Rev. 4.0...
