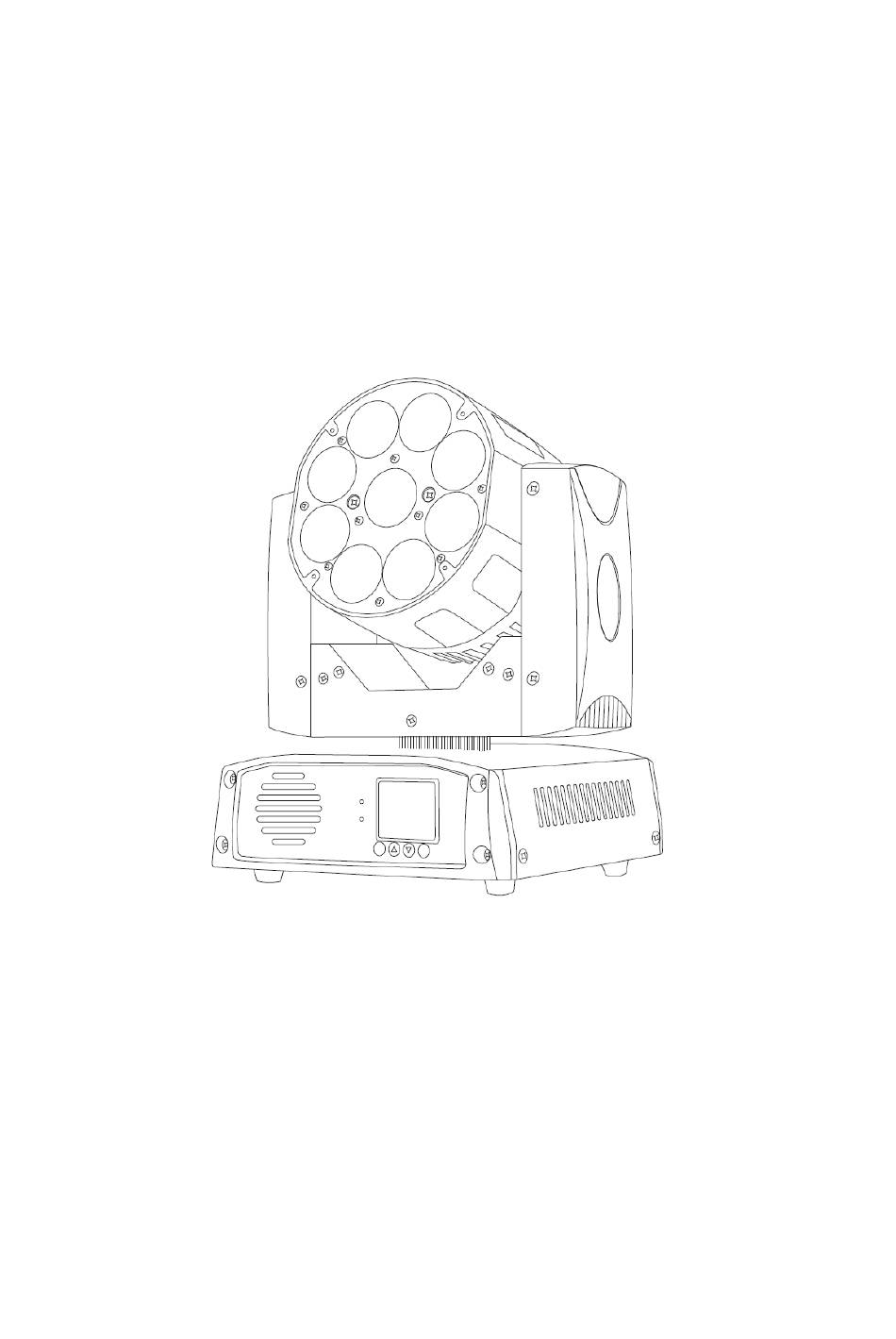

  • Page 1 M WASH 920Z User Manual Ver1.0...

  • Page 2: Table Of Contents

    Table of contents INTRODUCTION ..............2 SAFETY INSTRUCTION ............2 OPERATING DETERMINATIONS .......... 3 DESCRIPTION OF THE DEVICE ..........3 INSTALLATION ............... 4 MENU MAP ................5 DMX-protocol ................6 TECHNICIAL SPECIFICATIONS ..........9...

  • Page 3: Introduction

    CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product...

  • Page 4: Operating Determinations

    power plug last. The power plug must always be inserted without force .Make sure that the plug is tightly connected with the outlet. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands .as this could lead to mortal electrical shock.

  • Page 5: Installation

    > Beam Angle 6-51 degree > Focus,adjust beam angle > 9pcs 20W RGBW LEDS > 13/19 channel DMX-512 . > Pan :540° /tilt:270° > Variable electronic strobe. > Variable electronic dimmer(0-100%). > LCD display menu with invert. > Reset to factory settings option. >...

  • Page 6: Menu Map

    Connection with the mains. The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation...

  • Page 7: Dmx-Protocol

    DMX Address 0-512 DMX Functions Channel Mode 13/19CH No DMX signal Auto/Keep/Clear Run Mode DMX/Auto/Sound Show Movement Sound Active ON/OFF Sound Sense 0-100 Pan Inverse No/Yes Fixture Setting Tilt Inverse No/Yes Disply Inverse No/Yes Backlight Auto No/Yes Display Setting Warning Tips No/Yes Language Chinese/English...
  • Page 8 Focus 0-255 Beam Angle adjust from big to small Dimmer 0-255 0-100% liner dimmer Strobe No Function 6-255 Strobe from slow to fast 0-255 The Middle LED 0-100% Red Green 0-255 The Middle LED 0-100% Green Blue 0-255 The Middle LED 0-100% Blue White 0-255 The Middle LED 0-100% White...
  • Page 9 Tilt Fine 0-255 Tilt Fine PAN/TILT speed 0-255 Decreasing speed Focus 0-255 Beam Angle adjust from big to small Dimmer 0-255 0-100% liner dimmer Strobe No Function 6-255 Strobe from slow to fast Red 1 0-255 The Middle LED 0-100% Red Green 1 0-255 The Middle LED 0-100% Green...

  • Page 10: Technicial Specifications

    200-209 Reset 210-255 No Function TECHNICIAL SPECIFICATIONS Model M WASH 920Z Voltage 110V- 250V / 50-60Hz Power consumption: 180W 9pcs 20w RGBW LEDs Net Weight 5.1Kgs Dimensions 23x 21 x 30 cm...
