Summary of Contents for OLIMEX RP2040-PICO30

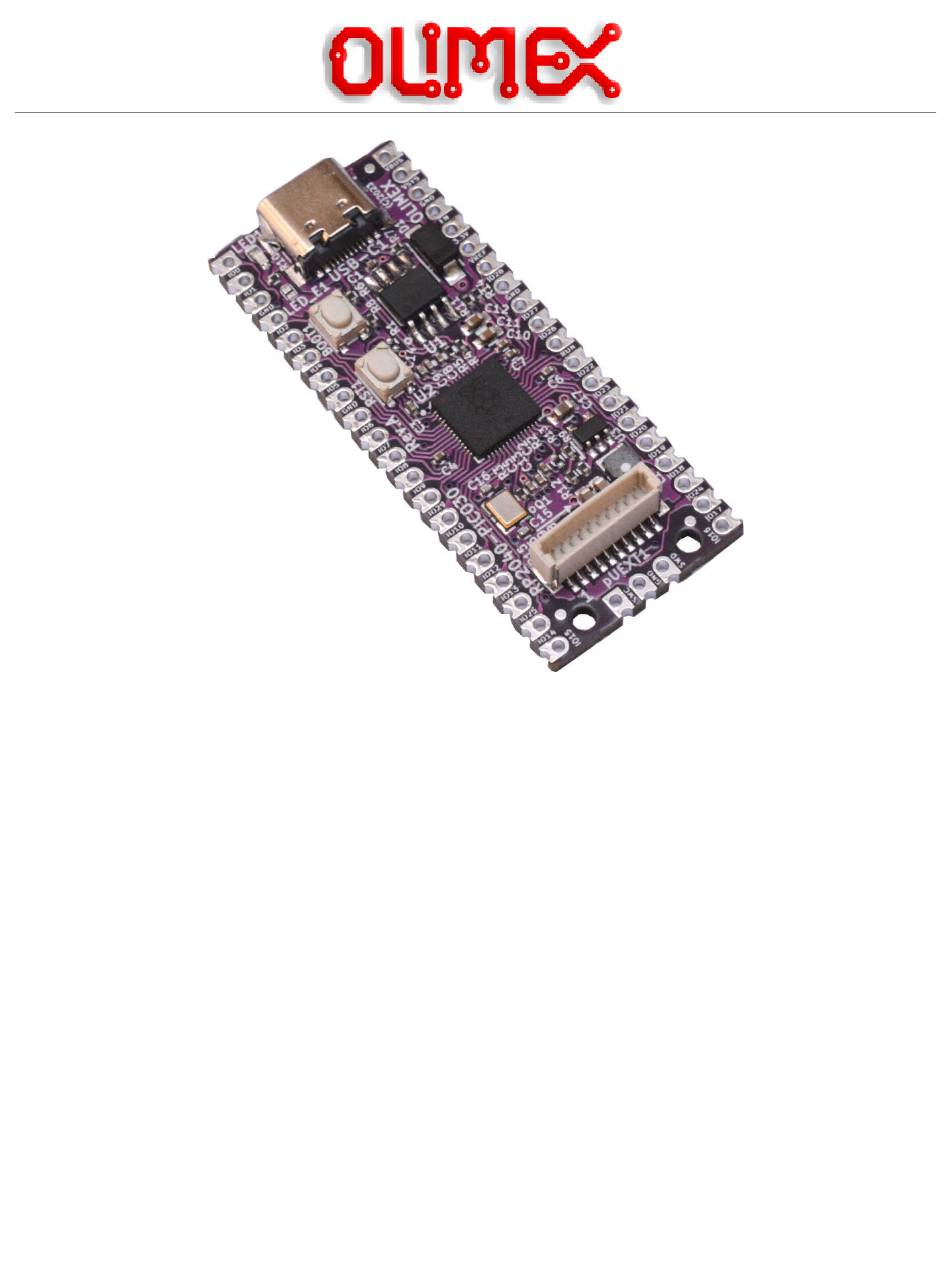

- Page 1 RP2040-PICO30 User Manual Rev.1.1 June 2023 www.olimex.com...
-
Page 2: Table Of Contents
Table of Contents Introduction to RP2040-PICO30.......................3 Order codes for RP2040-PICO30 and accessories:................4 HARDWARE.............................5 RP2040-PICO30 hardware layout:......................5 RP2040-PICO30 GPIOs:........................6 RP2040-PICO30 schematics:........................8 UEXT connector:...........................9 pUEXT signals:...........................10 SOFTWARE.............................11 DOCUMENT REVISION HISTORY.....................12... -
Page 3: Introduction To Rp2040-Pico30
4 extra GPIOs, we sacrfice 4 of the GNDs (that are exposed in the original design). RP2040-PICO30 adds the four missing GPIOs: GPIO23, GPIO24, GPIO25, GPIO29 on four of the eight GND pads. When you use RP2040-PICO30 on RPi Pico board make sure these GPIOs are INPUTS! -
Page 4: Order Codes For Rp2040-Pico30 And Accessories
Order codes for RP2040-PICO30 and accessories: RP2040-PICO30 industrial grade RPi Pico (RP2040) with 30 GPIOs exposed RP2040-PICO30U RP2040-PICO30 with UEXT, LED, R10, R15, R16 RP2040-PICO30-16 RP2040-PICO30 with 16MB of Flash (max possible for RP2040) RP2040-PICO30U-16 RP2040-PICO30 with 16MB of Flash, UEXT, LED, R10, R15, R16... -
Page 5: Hardware
HARDWARE RP2040-PICO30 hardware layout: PIN.40 UEXT connector PIN.21 RP2040 Flash with SPI I2C UART USB-C DEBUG LED enable PIN.20 RESET button PIN.1 Boot button jumper... -
Page 6: Rp2040-Pico30 Gpios
RP2040-PICO30 GPIOs:... - Page 7 GND line so if you use RP2040-PICO30 in RP2040-PICO design make original RPi Pico sure to initialize it as INPUT layout) Basically RPi Pico has 8 GNDs in total exposed on the connectors. While RP2040-PICO30 has 4GNDs and 4 extra GPIOs.
-
Page 8: Rp2040-Pico30 Schematics
RP2040-PICO30 schematics: RP2040-PICO30 latest schematic is available at our GitHub... -
Page 9: Uext Connector
- mUEXT is 1.27 mm step boxed header connector which is with same layout as UEXT; - pUEXT is 1.0 mm single row connector (this is the connector used in RP2040-PICO30). We are in process of releasing adapter that can be used to into connect devices with different type and size of UEXT connector. -
Page 10: Puext Signals
pUEXT signals:... -
Page 11: Software
SOFTWARE RP2040-PICO30 uses the same software as RP2040-PICO: • Raspberry PI C-SDK • MicroPython SDK... -
Page 12: Document Revision History
DOCUMENT REVISION HISTORY Document revision 1.1 June 2023 - product names fixes - general improvements Document revision 1.0 May 2023 - initial release...
