Etlin-Daniels FLS5 Installation

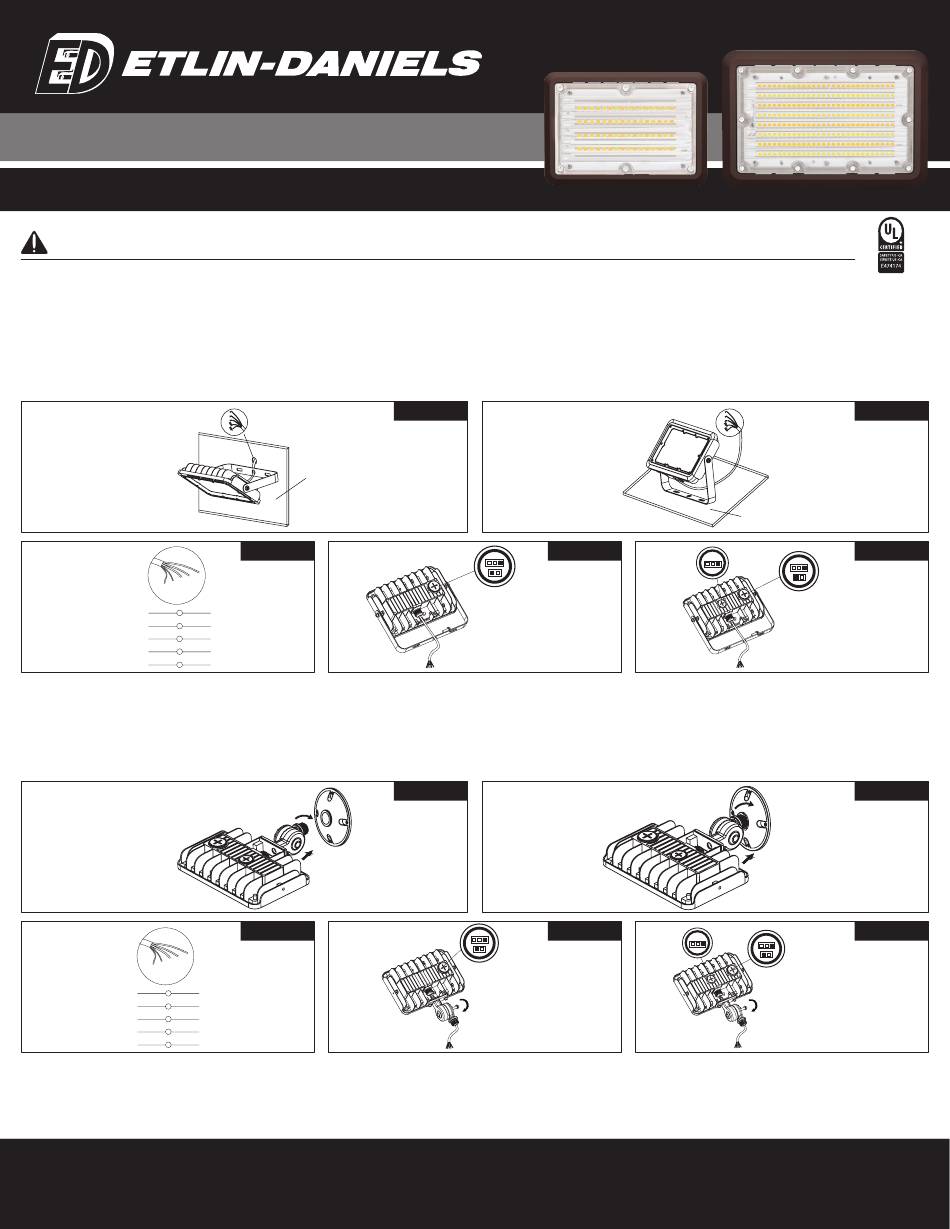

INSTALLATION FOR FLS5 AND FLL5 LOW WATTAGE FLOOD LIGHT
SAVE THESE INSTRUCTIONS - READ ALL INSTRUCTIONS CAREFULLY
WARNING
PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION.
• To avoid risk of fire or electrical shock, this product should be installed and maintained by a
qualified electrician in accordance with all national and regional electrical codes.
• Turn off power to fixture during installation and maintenance.
• Do not install fixture on rainy days.
• Any alteration or modification of this product is forbidden as it may cause personal
injury,death,propertydamage and/or product malfunction.
YOKE MOUNT
N
G
Dim+
Dim-
Black Line
White Neutral
Green Ground
Purple Dim+
Pink Dim-
1. Fix the fixture on the wall or ground through the holes on the bracket(Fig 1 & 2).
2. Connect the input wires per the wiring diagram below(Fig 3).
3. Loosen the screws on the two sides of the bracket to adjust the fixture to desired
direction, then tighten the screws.
KNUCKLE MOUNT
L
N
G
Dim+
Dim-
Black Line
White Neutral
Green Ground
Purple Dim+
Pink Dim-
1. Insert the knuckle into the cover plate(not provided), and adjust the fixture to desired
direction.(Fig 1 & 2)
2. Connect the input wires per the wiring diagram below.(Fig 3)
Wall Wall
Fig. 3
L
Fig. 3
Head Office - 1850 Wilson Ave. · Toronto, ON · M9M 1A1 · Tel: 416.741.7336 · Fax: 416.741.9104
Toll free: in Canada. 1.800.661.9610 · in USA. 1.888.762.5384 (SOCKETS4U)
www.etlin-daniels.com· For sales/service questions - sales@etlin.com
• This luminaire is designed to operate in ambient temperatures ranging from -40°C to 45°C (-40°F to 113°F)
• MIN 75°C SUPPLY CONDUCTORS.
• CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT CONDUCTOR.
Fig. 1
Fig. 4
3K 4K 5K
ON OFF
SENSOR
Bracket
Factory Default Setting:
CCT:5000K / Photocell: ON
4. Unscrew the cap to select the desired Watt/CCT/Photocell function, 15W refer to
Fig 4,60W refer to Fig 5, then screw back the cap.
5. Turn on the electricity to verify your successful installation.
Fig. 1
Fig. 4
3K 4K 5K
ON OFF
SENSOR
Factory Default Setting:
CCT:5000K / Photocell: ON
3.Unscrew the cap to select the desired Watt/CCT/Photocell function, 15W refer to Fig 4,
60W refer to Fig 5, then screw back the cap.
4. Turn on the electricity to verify your successful installation.
CAN ICES-005 (B) / NMB-005 (B)
Ground Ground
40W 50W 60W
3K 4K 5K
ON OFF
SENSOR
Bracket
60W / CCT:5000K / Photocell: ON
40W 50W 60W
3K 4K 5K
ON OFF
SENSOR
60W / CCT:5000K / Photocell: ON
Fig. 2
Fig. 5
Factory Default Setting:
Fig. 2
Fig. 5
Factory Default Setting:
