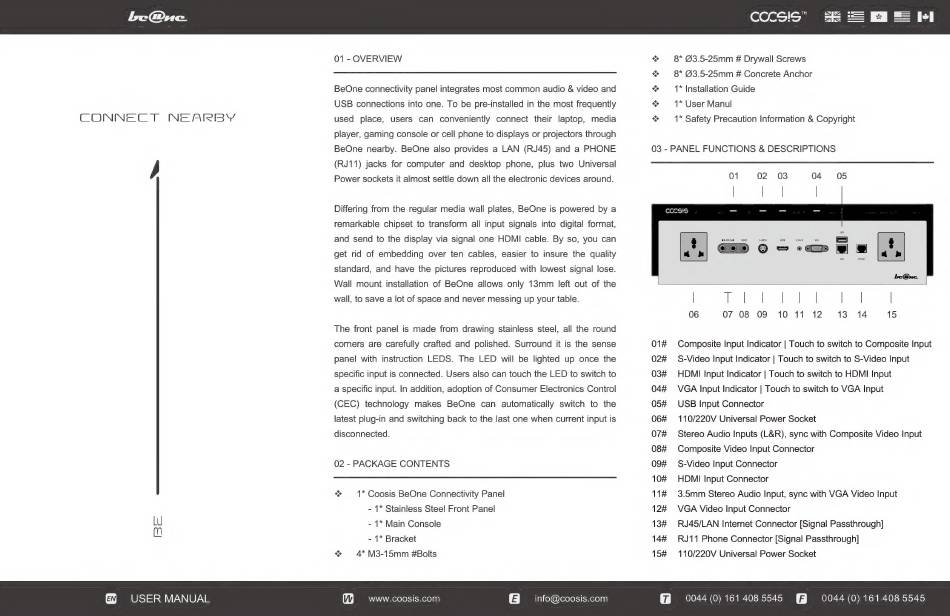

@ USER MANUAL
01 - OVERVIEW
BeOne connectivity panel integrates most common audio & video and
USB connections into one. To be pre-installed in the most frequently
used place, users can conveniently connect their laptop, media
player, gaming console or cell phone to displays or projectors through
BeOne nearby. BeOne also provides a LAN (RJ45) and a PHONE
(RJ11) jacks for computer and desktop phone, plus two Universal
Power sockets it almost settle down all the electronic devices around.
Differing from the regular media wall plates, BeOne is powered by a
remarkable chipset to transform all input signals into digital format,
and send to the display via signal one HDMI cable. By so, you can
get rid of embedding over ten cables, easier to insure the quality
standard, and have the pictures reproduced with lowest signal lose.
Wall mount installation of BeOne allows only 13mm left out of the
wall, to save a lot of space and never messing up your table.
The front panel is made from drawing stainless steel, all the round
corners are carefully crafted and polished. Surround it is the sense
panel with instruction LEDS. The LED will be lighted up once the
specific input is connected. Users also can touch the LED to switch to
a specific input. In addition, adoption of Consumer Electronics Control
(CEC) technology makes BeOne can automatically switch to the
latest plug-in and switching back to the last one when current input is
disconnected.
02 - PACKAGE CONTENTS
"* 1* Coosis BeOne Connectivity Panel
- 1* Stainless Steel Front Panel
- 1* Main Console
- 1* Bracket
" 4" M3-15mm #Bolts
@ wwccoosis.com info@coosis.com
Ccocs!s"
" = 8* @3.5-25mm # Drywall Screws
" — 8* @3.5-25mm # Concrete Anchor
% — 1* Installation Guide
"+ 1* User Manul
"+ 1* Safety Precaution Information & Copyright
03 - PANEL FUNCTIONS & DESCRIPTIONS
01 02 03 04 05
06 07 08 09 10 11 12 13 14 15
01# Composite Input Indicator | Touch to switch to Composite Input
02# S-Video Input Indicator | Touch to switch to S-Video Input
03# HDMI Input Indicator | Touch to switch to HDMI Input
04# VGA Input Indicator | Touch to switch to VGA Input
05# USB Input Connector
O6# 110/220V Universal Power Socket
07# Stereo Audio Inputs (L&R), sync with Composite Video Input
08# Composite Video Input Connector
09# S-Video Input Connector
10# HDMI Input Connector
11# 3.5mm Stereo Audio Input, sync with VGA Video Input
12# VGA Video Input Connector
13# RJ45/LAN Internet Connector [Signal Passthrough]
14# RJ11 Phone Connector [Signal Passthrough]
15# 110/220V Universal Power Socket
