Summary of Contents for DPAO d:screet BLM6000

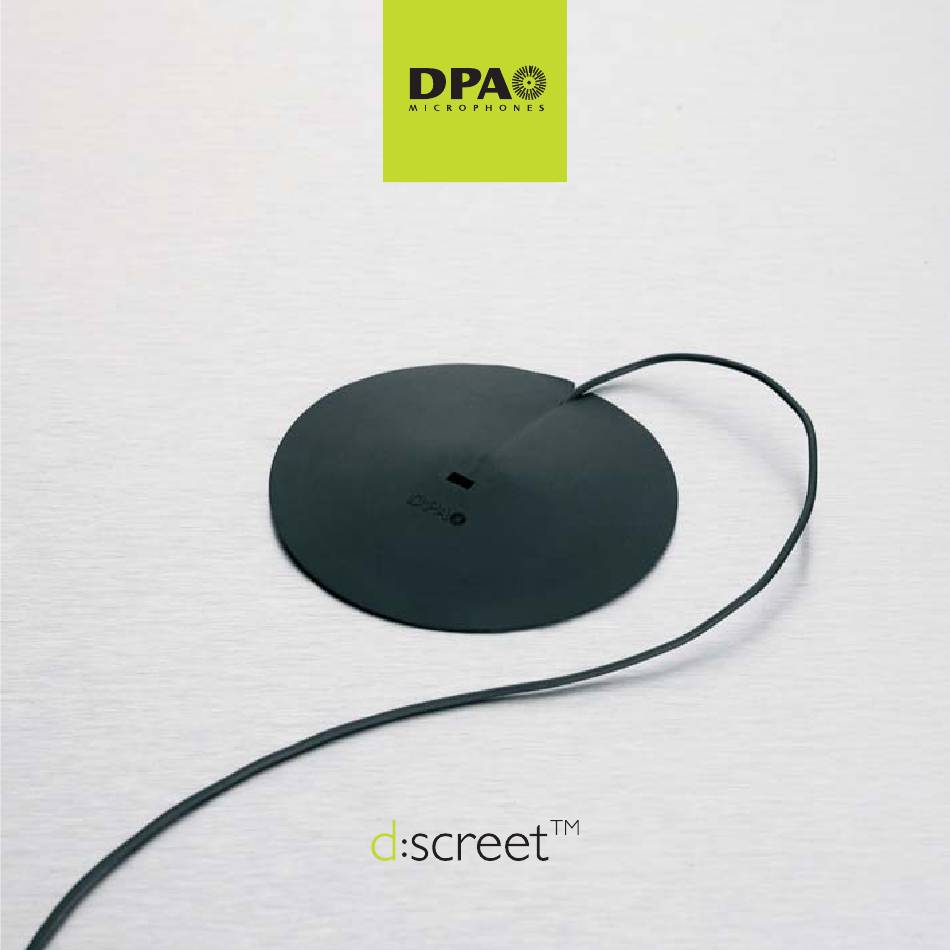

- Page 1 User’s Manual BLM6000 Boundary Layer Mount...
- Page 2 USER’S MANUAL Boundary Layer Mount BLM6000 The BLM6000 is an accessory that will extend the use of your Miniature Microphones i.e. 4060, d:screet d:screet 4061, 4062, and 4063. By placing a microphone close to a reflective boundary, you will benefit from the special characteristics of the sound field found here: a 6 dB gain of direct sound and only 3 dB gain of the diffuse sound.
- Page 3 Please note: The microphones must be mounted with the short grid (soft boost grid). The long grid will not fit into the disc. Using the d:screet Boundary Layer Mount When mounted in the BLM6000 you can put the micro- phone on all surfaces that reflect sound i.e. tables, lecterns, etc.
-
Page 4: Physical Dimensions
Physical dimensions: Diameter: 75 mm (3 in.) Height: 6 mm (0.2 in.) Weight (w/o mic): 12 grams (0.4 oz) Order numbers: BLM6000-B, Black Note: Tape not included. Take care to select tape that will not damage the surface it is placed d:screet BLM6000 mounted on piano lid d:screet... - Page 6 DPA Microphones A/S Gydevang 42-44 DK-3450 Alleroed, Denmark Tel: +45 4814 2828 Fax: +45 4814 2700 info@dpamicrophones.com www.dpamicrophones.com...
