Summary of Contents for ADJ LTS-1

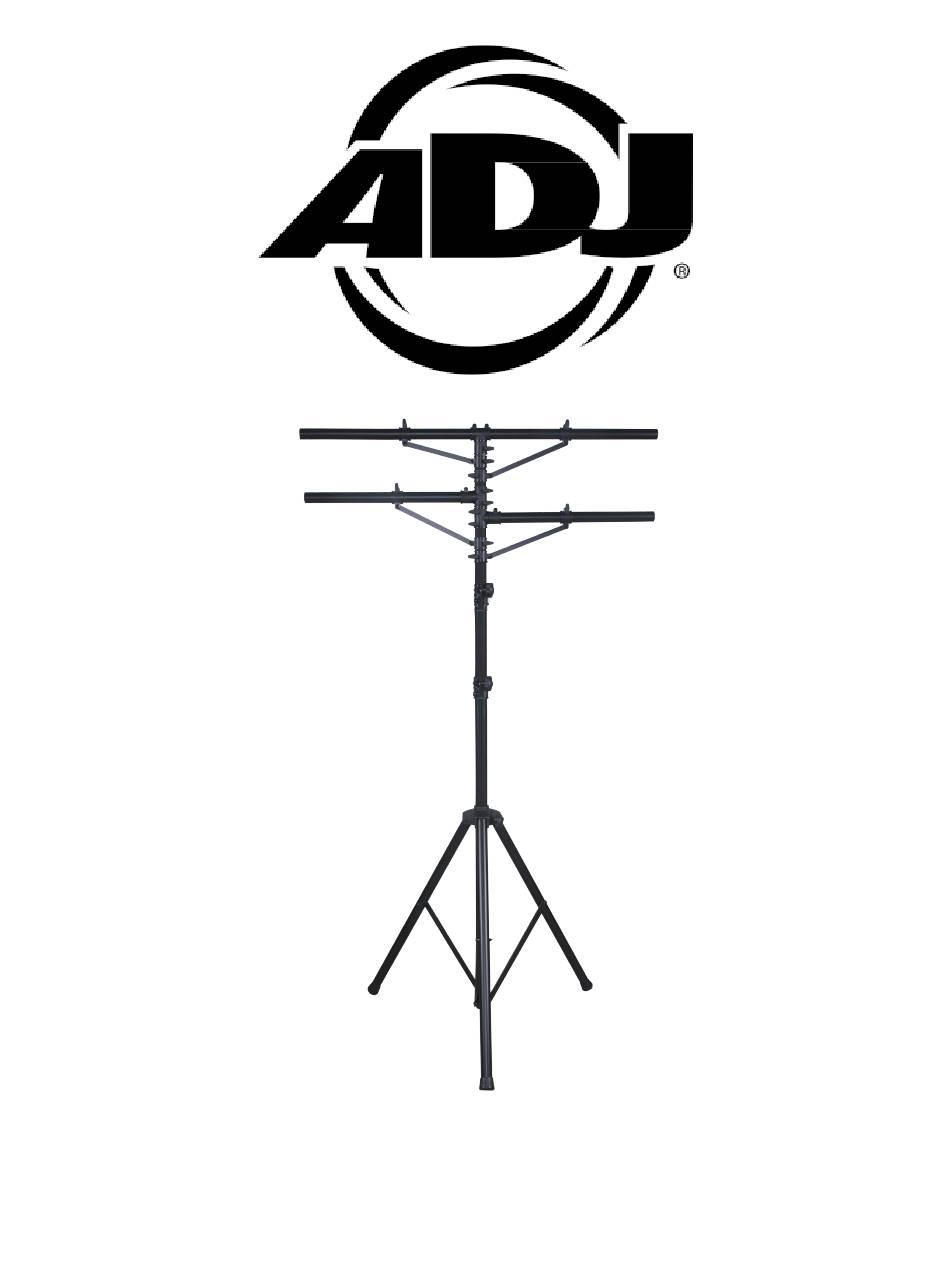

- Page 1 LTS-1 user manual...
- Page 2 ADJ PRODUCTS LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Instructions and Guidelines Overview Installation Instructions Trouble Shooting Tips Frequently Asked Questions Technical Specifications... -
Page 4: General Information
You may obtain a R.A. number by contacting customer support. CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Please visit forums.adj.com with questions, comments or suggestions. -
Page 5: Limited Warranty Periods
ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product. -
Page 6: Safety Instructions And Guidelines
To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS LLC is not responsible for injury and/or damages resulting from the misuse of these devices due to the disregard of the information printed in this manual. Only qualified and/or certified personnel should perform installation of these devices and only the original rigging parts included with these devices should be used for installation. - Page 7 S A F E T Y I N S T R U C T I O N S A N D G U I D E L I N E S INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE DEVICES TO RAIN AND/OR MOISTURE! WHEN USING STAND OUTISDE UNDER STRONG WIND, TAKE APPROPRIATE MEASURES TO PREVENT IT FROM FALLING DOWN! TIGHTEN EACH KNOB AND BOLT SECURELY!
-
Page 8: Overview
O V E R V I E W INCLUDED ITEMS (1) LTS-1 Stand (1) T-BAR (2) Side Bar (4) Support Bar 1. Knob A 5. Stay 9. Inlet Pipe 2. Knob B 6. Leg 10. Support Bar 3. Knob C 7. -
Page 9: Installation Instructions
I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep stand minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. DO NOT INSTALL/HANG DEVICES ON STAND IF YOU ARE NOT QUALIFIED TO DO SO! AVOID INSTALLING OR MOUNTING THE STAND IN UNSTABLE LOCATIONS, SUCH AS AN UNEVEN SURFACE OR MOVING TABLE. - Page 10 I N S T A L L A T I O N I N S T R U C T I O N S (continued) SETUP Loosen Knob D by turning it counter clockwise. Spread the legs by pulling up on the outer pipe until the stays extend horizontally.
- Page 11 MOUNTING THE T-BAR AND SIDE BARS The stand comes with a T-Bar and Side Bars for mounting optional lighting and other equipment. To install the Side Bar(s), slide the collar of the Support Bar onto the Side Bar. Next, insert the inlet pipe into the collar on the opposite side of the Support Bar and tighten the knobs on each collar.
-
Page 12: Trouble Shooting Tips
128” (3,250 mm). 5. Are additional stands, clamps or accessories available? Yes. A variety of stands and accessories are available at www.adj.com. O P T I O N A L A C C E S S O R I E S... -
Page 13: Technical Specifications
T E C H N I C A L S P E C I F I C A T I O N S Total Height Range: 59.1” (1,500 mm) to 128” (3,250 mm) Recommended maximum height: 128” (3,250 mm) Weight capacity: 110 lbs. (50 kg) T-Bar Diameter: 1.5”...
