Ambassador MARINE 130-0019-NP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS

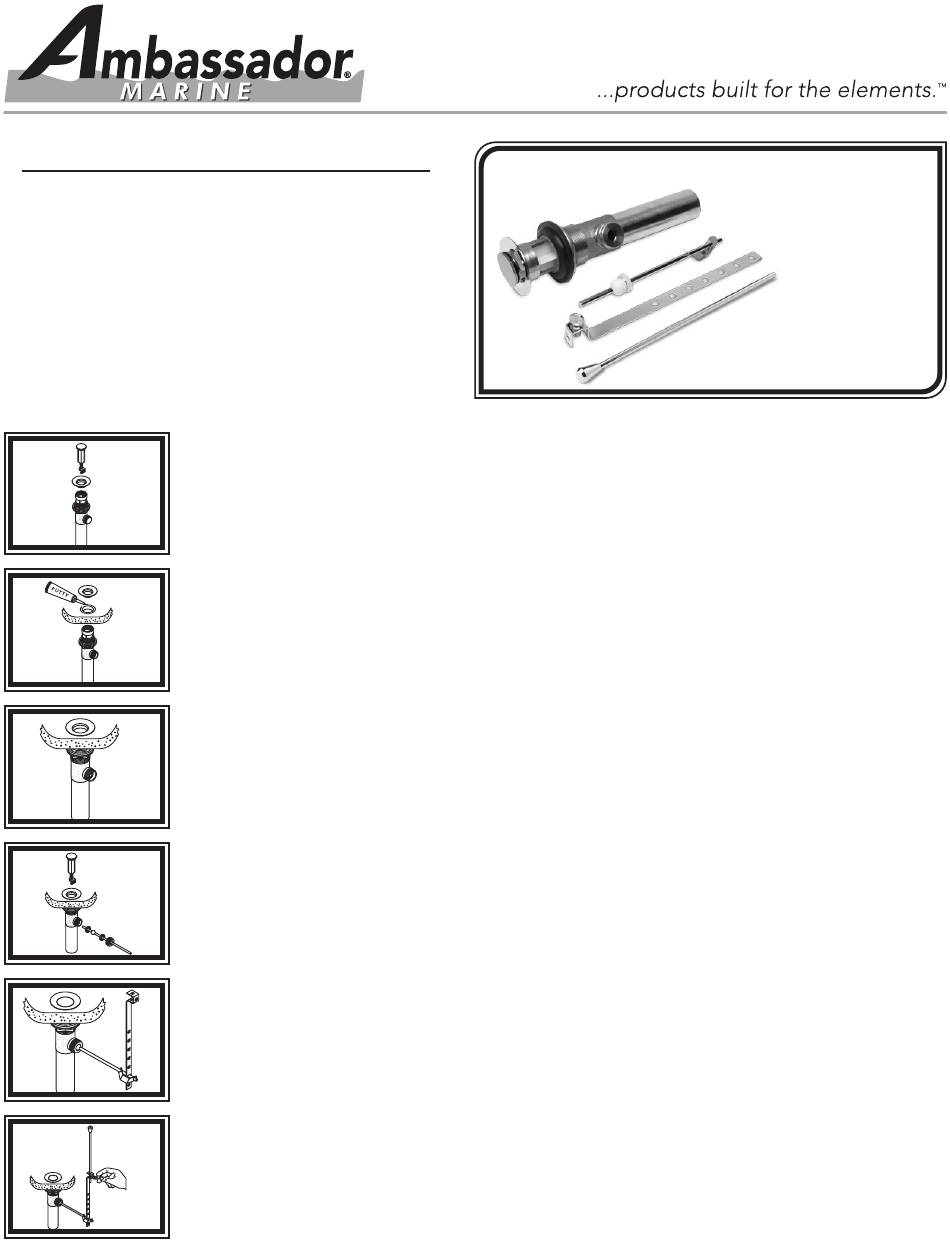

1) Unscrew flange from drain body. Leave large black gasket, white friction ring and lock nut on
drain body.
2) Place a ring of putty around the drain hole in your sink. Insert the threaded end of the drain
body up through the drain hole and attach the flange to the body, with the pivot ball nut pointing
to the rear of the sink.
3) Tighten the lock nut from under the sink until the black rubber gasket seats securely inside
the sink drain hole. Wipe away excess putty. Tighten brass lock nut with a wrench.
4) Set the drain plunger in place (see "Drain Plunger" below). Unscrew the pivot ball nut from
the pop-up body and remove the spring clip from the pivot ball rod. Leave the white packing ring
on and slide the ball nut onto the rod covering the white packing ring. Insert the rod into the hole
on the back of the pop-up body. Slide the ball nut in place and tighten securely.
5) Slide one end of the spring clip onto the end of the pivot rod. Insert the pivot rod into one of
the lower holes in the lift rod strap. Secure other end of spring clip onto pivot rod.
6) Slide lift-rod down through the hole in faucet. Insert bottom of lift-rod into hole on the top of
the lift-rod strap (see "Adjusting The Lift-Rod" below). Tighten with thumb screw.
Drain Plunger
There is a small square cutout at the bottom
of the drain plunger. That square needs to
go down the front of the drain body
(opposite side from the pivot ball nut). The
pivot rod passes through that square to lock
the drain plunger in and form a tight seal
when drain is closed.
130-0019-NP
131-0019-NP
Pop-Up Drain Kit
Adjusting The Lift-Rod
Adjust lift-rod function by adjusting the
height of the thumb screw along the lift-rod
(step 6) or by changing the hole that the
pivot rod goes through on the lift-rod strap
(step 5). Be sure to leave enough space
between the lift-rod knob and the faucet
spout when the rod is down.
(OEM)
(Retail)
Universal
Brushed Nickel
