Summary of Contents for Workspace48 Mochi

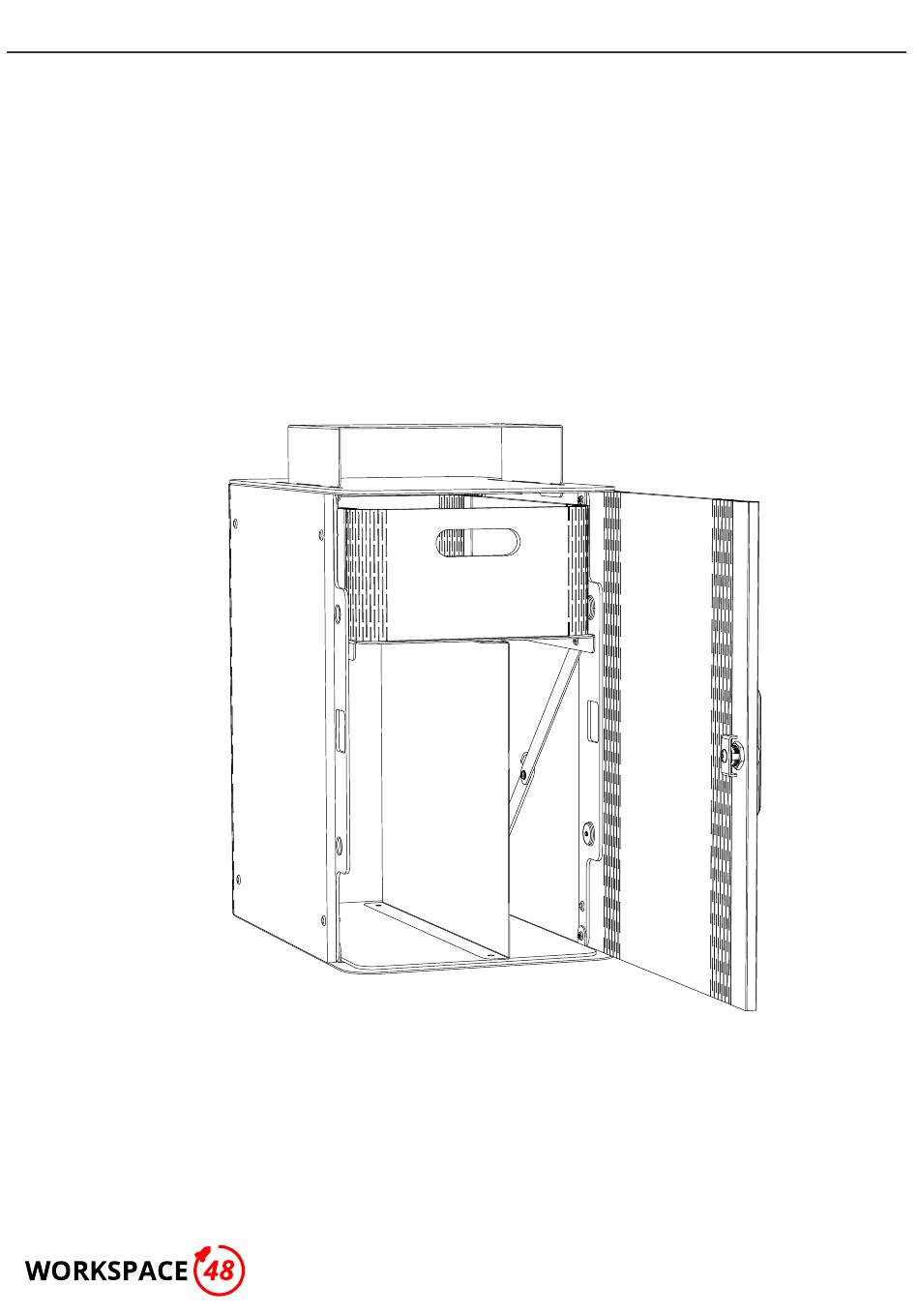

- Page 1 Mochi Assembly Guide...
-
Page 2: Table Of Contents
Contents Components ............... 1 Handle Installation ............2 Lock Installation ............. 3-4 Foldable Frame Deployment ........... 5 PET Wrap Installation (Right Handed) ......6-8 PET Wrap Installation (Left Handed) ......9-11 Laptop Divider Installation ..........12 Drawer Installation ............13 Hanging Bracket Installation ........ -
Page 3: Components
Foldable Frame Handle PET Wrap x 12 x 12 PET Fastener PET Fastener (Male) (Female) Tapping Screw Hanging Bracket Door Lock Lock Nut H-Bracket Laptop Divider Lock Latch Lock Screw PET Drawer Rubber Mallet Pliers Philips Head Screwdriver Mochi Assembly Guide... -
Page 4: Handle Installation
Handle Installation Step 1: Slot in Handle at the edge of PET Wrap as shown Step 2: Align key hole on Handle and PET Wrap Mochi Assembly Guide... -
Page 5: Lock Installation
Lock Installation Step 3: Insert the lock through the lock hole and fasten it with the Lock Nut. Step 4: Tighten the Lock Nut using a plier or spanner. Mochi Assembly Guide... - Page 6 Lock Installation Step 5: Place Lock Latch in position and fasten with Lock Screw. Step 6: Tighten Lock Screw with screwdriver Mochi Assembly Guide...
-
Page 7: Foldable Frame Deployment
Foldable Frame Deployment Step 1: Deploy Foldable Frame as shown. Step 2: Ensure that the diagonal linkage is straight. Mochi Assembly Guide... -
Page 8: Pet Wrap Installation (Right Handed)
For Left-Handed PET Wrap Installation, go to page 9 - 11 Step 3: For right handed door orientation, place PET Wrap around the Foldable Frame as shown. Step 4: Place PET Wrap around the Foldable Frame as shown. Mochi Assembly Guide... - Page 9 Step 5: Secure the PET Wrap by aligning the PET Fasteners as shown. Ensure that the Female PET Fastener is inside and Male PET Fastener is outside. Step 6: Use a rubber mallet to tap on the PET Fastener to ensure that it is properly secured. Mochi Assembly Guide...
- Page 10 PET Wrap Installation (Right Handed) Step 7: There are a total of 12 PET Fasteners to apply on the PET Wrap. Location as indicated below. Step 8: Complete Mochi Assembly Guide...
-
Page 11: Pet Wrap Installation (Left Handed)
For Right-Handed PET Wrap Installation, go to page 6 - 8 Step 9: For left handed door orientation, place PET Wrap around the Foldable Frame as shown. Step 10: Place PET Wrap around the Foldable Frame as shown. Mochi Assembly Guide... - Page 12 Step 11: Secure the PET Wrap by aligning the PET Fasteners as shown. Ensure that the Female PET Fastener is inside and Male PET Fastener is outside. Step 12: Use a rubber mallet to tap on the PET Fastener to ensure that it is properly secured. Mochi Assembly Guide...
- Page 13 PET Wrap Installation (Left Handed) Step 13: There are a total of 12 PET Fasteners to apply on the PET Wrap. Location as indicated below Step 14: Complete Mochi Assembly Guide...
-
Page 14: Laptop Divider Installation
Step 1: Slide in the Laptop Divider at an angle with the magnet facing up. Magnet Step 2: Adjust placement of Laptop Divider to preference. Step 3: Straighten Laptop Divider to upright position. Allow the tight fitting to secure the location of the Laptop Divider. Mochi Assembly Guide... -
Page 15: Drawer Installation
Drawer Installation Step 1: Fold PET Drawer sides upright. Step 2: Bend each corner and insert H-Bracket to fasten the corners. Step 3: Repeat on all 4 corners. Step 4: Slide in PET Drawer to upper shelf. Mochi Assembly Guide... -
Page 16: Hanging Bracket Installation
Hanging Bracket Installation Step 1: Place Hanging Bracket 100mm from front edge of worktop. Step 2: Secure Hanging Bracket by screwing in 4 tapping screws. Mochi Assembly Guide... - Page 17 Step 3: Lift storage to Hanging Bracket and insert hook through opening as shown. Step 4: Push storage towards the back to allow storage to be securely hooked. Step 5: Storage is in secured position as shown. Mochi Assembly Guide...
- Page 18 Please contact info@workspace48.com if you are missing any parts, have difficulty with assembly, or have any product related questions.
