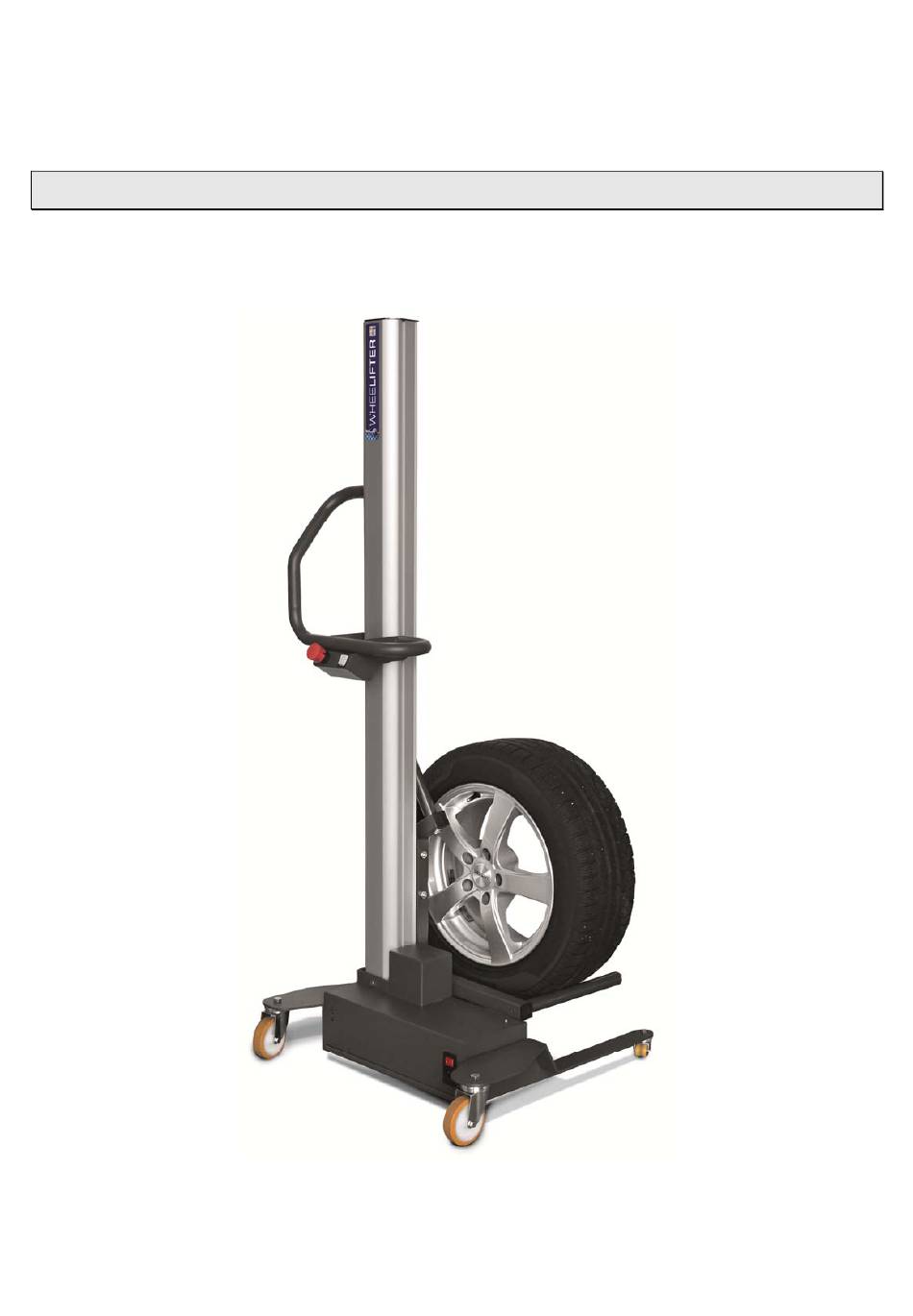

USE AND MAINTENANCE MANUAL
WHEELIFTER
ART. 3473N
1
ORIGINAL INSTRUCTIONS – rev04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3473N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tecnolux 3473N

  • Page 1 USE AND MAINTENANCE MANUAL WHEELIFTER ART. 3473N ORIGINAL INSTRUCTIONS – rev04...
  • Page 2 ORIGINAL INSTRUCTIONS – rev04...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS   1. INTRODUCTION ..............................4 1.1. WARRANTY TERMS ............................ 4   1.2. SECURITY ..............................5   1.3. SPECIAL WARNINGS ..........................6   1.4. PRECAUTIONAL AND ORGANIZATIONAL ACTIONS ................6     2. TECHNICAL DATAS ............................7 2.1. WHEEL LIFTER ............................7  ...

  • Page 4: Introduction

    TECNOLUX s.r.l. will not be responsible in any way for damage or injury that are the consequence of improper use of the equipment.

  • Page 5: Security

    1.2. SECURITY It is strictly forbidden the use the lift to unqualified people, people who do not know the operating instructions of use and who have not read the manual. Using the lift, operator must be aware of the basic safety standards . The safety and operating instructions specified in this manual should be considered in addition to the safety rules already set out for the place where the lift is in use.

  • Page 6: Special Warnings

    1.3. SPECIAL WARNINGS Before starting any maintenance or repair, disconnect the wheelifter from any power supply. Take particular care not to mix up, confuse or incorrectly connect any electrical connection. Take care not to come into contact with the battery pholes! Protect them and make sure they are electrically isolated before handling the batteries.

  • Page 7: Technical Datas

    2. TECHNICAL DATAS 2.1. WHEEL LIFTER M.U. TECHNICAL DATAS Width Length Heigth 1710 Working height 1100 Maximum height at wheel hub 1400 * Weight Maximum speed m/sec ≈0,1 Maximum loading 60 (for sporadic use) Min –5 Operational temperature °C Max +45 Batteries Bat.

  • Page 8: Transport And Assembling

    3. TRANSPORT AND ASSEMBLING Wheelifter 3473 is delivered packed in a carton box on a pallet. It is required a suitable means of handling (such as a transpallet) Inside the box you will find: 1) The main body (composed by the base, column, handle) 2) The brackets with wheels 3) The lifting forks The assembly of parts must be carried out according to the following scheme (Figure 1)
  • Page 9 In order the lifter to operate you need connect the battery and remove any protective packing inside the engine compartment. To connect the battery follow the step below: 1) Press the emergency button 2) Open the cover of the base (engine compartment) 3) Connect the batteries as shown in Figures 2 and 3.

  • Page 10: Use

    4. USE 4.1 BATTERIES CHARGE This machine is equipped with an internal electronic battery charger with LED indicators on the state of charging. We recommend before using this machine to make a first recharge. To charge the batteries connect the power cord to the power of the machine, connect the other end to the 220 V ac main supply.
  • Page 11 4.2.1 LOADING AND UNLOADING Lower forks until inferior stop point. Place the wheel so that the outer part of the metallic rim is placed toward the operator side and rests against the oblique roller. Before giving the lifting command, make sure the wheel is properly supported, is stable and cannot fall out easily.

  • Page 12: Led Lights Signals

    4.3 LED LIGHTS SIGNALS Led lights on the base of the wheelifter: BLINKING TYPE COLOUR MEANING Fixed LED Green or Yellow Battery charging level Fixed LED Discharged Battery Fast blinking LED Pressed emergency button Overload of maximum loading 2 fast blinking + pause capacity Slow blinking LED engine temperature too high...

  • Page 13: Manteinance

    5. MANTEINANCE In order to obtain a state of optimum service it is necessary to perform regular maintenance on the lift every 3 months. If the lift operates in dusty environment, it is advisable to perform maintenance more frequently. Before performing any maintenance keep in mind that: 1) All maintenance shall be performed only by qualified persons 2) There must be no load on the lift 3) The batteries of the lift should not be placed in charge during maintenance.

  • Page 14: Cleaning

    5.1. CLEANING Do not use pressure washers or high pressure cleaning systems Use standard detergent and dry thoroughly after cleaning 5.2. POWER SUPPLY CABLE CONTROL Check that the cable is in good condition and that there are no bare wires and plugs are intact. 5.3.

  • Page 15: Trapezoid Screw And Runners Greasing

    5.5. TRAPEZOID SCREW AND RUNNERS GREASING To grease the trapezoid screw and sliding surfaces of the skates perform the following operations: 1) Set the forks at about the halfway point (60-65 cm from the floor) 2) Press the emergency button 3) Make sure the power cord is disconnected 4) Open the cover of the engine compartment and disconnect one of the battery pole 5) Grease the trapezoid screw and sliding surfaces of the skates accessing from the slot on the...

  • Page 16: Batteries Replacement

    5.6. BATTERIES REPLACEMENT It is possible that during the life of the lift batteries need to be replaced. To do this proceed according to the instructions specified below: 1) Press the emergency button and make sure that the lift is not connected to any power source.

  • Page 17: Breakdown Causes Or Interruption

    6. BREAKDOWN CAUSES OR INTERRUPTION The arrest of the lift or an irregular functioning of it may be due to a few simple reasons shown in the following table. If it proves impossible to identify the cause of the malfunction, please contact our technical department DETECTED PROBLEM POSSIBLE CAUSE...

  • Page 18: Disposal

    7. DISPOSAL IMPORTANT INFORMATION According to art. 13 of Legislative Decree July 25, 2005 , n . 151 "Implementation of Directives 2002/95/EC , 2002/96/EC and 2003/108/EC relating to the reduction of use of hazardous substances in electrical and electronic equipment and waste disposal" The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.
  • Page 19 Don’t use the wheelifter on unflat floor Don’t come up on the wheelifter Dispose the wheelifter at the end of life cycle (paragraph 7) Danger of cutting Maximum load capacity (indication positioned on the forks of the lift) (for occasional use can be considered a maximum capacity of 60 kg) ORIGINAL INSTRUCTIONS –...

  • Page 20: Security Controls Summary Sheet

    9. SECURITY CONTROLS SUMMARY SHEET In order to grant security on wheelifter use, it is necessary to perform periodically the following controls (paragraph 5 for more detailed information) SECURITY CHECKS Check the presence of sticker indicating model, serial number of wheelifter Check that all stickers with use indications (loading capacity, use instructions) are visible Check that all parts are complete and intact, stable and without breakage or deformities Check that all screws are well tighten...

  • Page 21: Electrical Scheme

    10. ELECTRICAL SCHEME ORIGINAL INSTRUCTIONS – rev04...

  • Page 22: Exploded View

    11. EXPLODED VIEW ORIGINAL INSTRUCTIONS – rev04...
  • Page 23 ORIGINAL INSTRUCTIONS – rev04...
  • Page 24 DETAIL 11 DETAIL 5 UPPER PART INFERIOR PART DETAIL 6 COMPLETE SLIDER ORIGINAL INSTRUCTIONS – rev04...

  • Page 25: Spare Parts List

    SPARE PARTS LIST REF. CODE DESCRIPTION 034720014 TRAPEZOIDAL SCREW 20x8(P4) 034720016 DRIVEN PULLEY HDT 5M-15 Z=40 034710104 LARGE FLANGE 034710105 TIGHT FLANGE 034710135 COMPLETE INFERIOR CLOSING FOR WHEEL LIFTER COLUMN 034710132 COMPLETE SLIDING SYSTEM 034720017 L=1610 mm WHEEL LIFTER COLUMN 034710112 FRONTAL MATCHING PART PLATE 034710134 WHEEL LIFTER COMPLETE HEAD 3473 ND1010011 AXIAL BEARING 10/24 - 51100...
  • Page 26 NR1010033 TURNING WHEEL D.100 NYLON+POLIURETANO RED- HUB ON ROLLERS NR1010034 POLYURETHANE ROLLER D.35 WITH TURNING SUPPORT- HUB ON BUSHING 034710119 COMPLETE RIGHT WHEELHOLDER BRACKET 034710109 COMPLETE BASE WHEEL LIFTER SERIES 3473 034710116 GALVANISED CARTE FOR BELT ND1030008 SELF LUBRICATED FLANGED BUSHING DU 12x10 LG.=10 034710120 COMPLETE LEFT WHEELHOLDER BRACKET 034710144 BATTERIES SEAT BRACKET 034710121 MOUVABLE CARTER FOR WHEEL LIFTER BASE...
