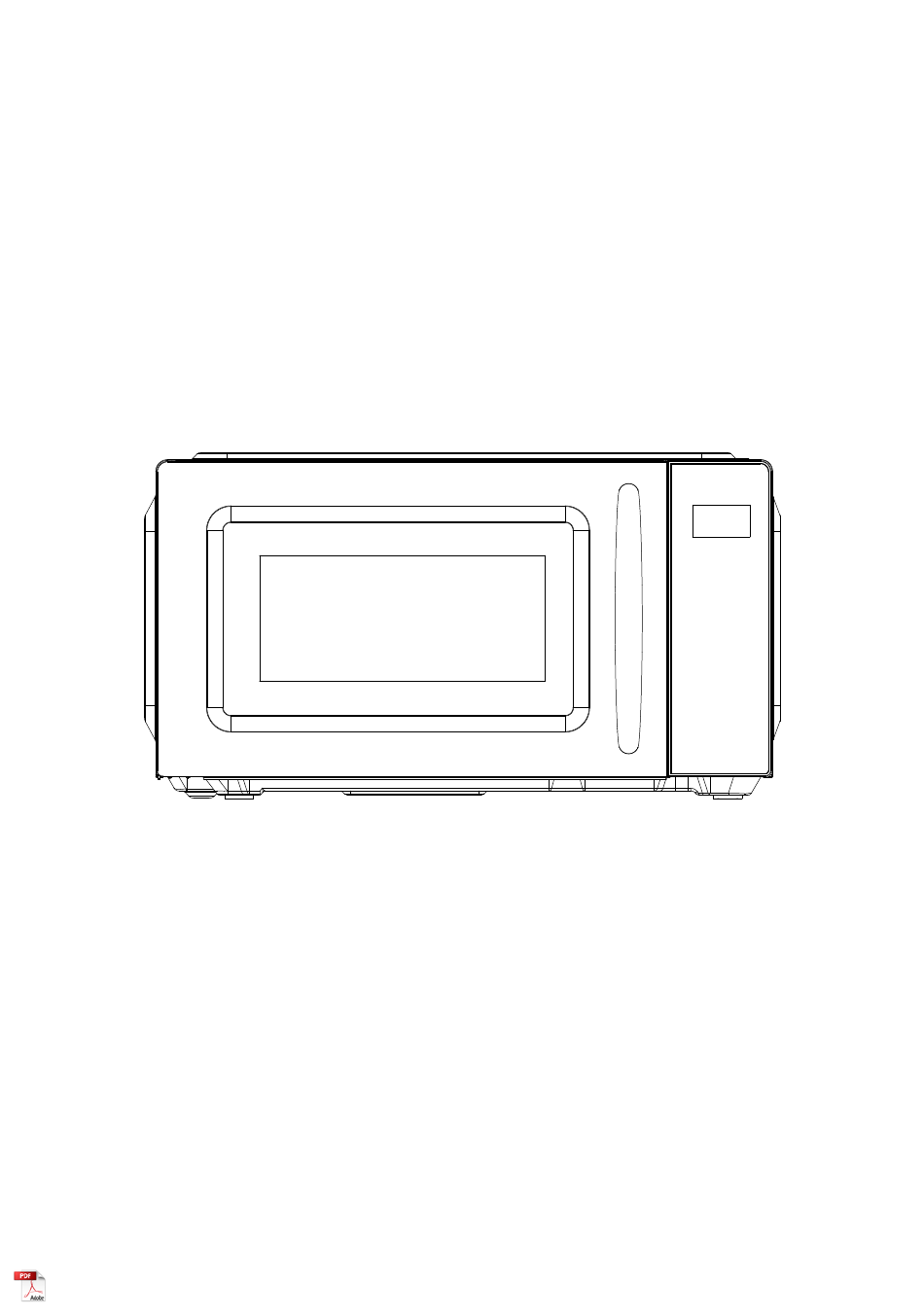

- Page 1 MICROWAVE OVEN INSTRUCTION MANUAL F20PXP07-A70 IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Important Safeguards
REFERENCE Household use only SAVE THESE INSTRUCTIONS .IMPORTANT SAFEGUARDS When using electrical appliances basic safety precautions should be followed, including the following: WARNING – To reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy: 1. - Page 3 basement, near a swimming pool, or similar locations. 11. Do not immerse cord or plug in water. 12. Keep cord away from heated surfaces. 13. Do not let cord hang over edge of table or counter. 14. When cleaning surfaces of door and oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- Page 4 3) The longer cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. The following basic precautions should always be followed when using electrical appliance: 1.
- Page 5 since they may explode, even after microwave heating has ended. d. The cooked liquid should not be removed out immediately. Several moments should be waited before removing. In order to avoid possible hazards caused by delayed eruptive boiling of 1iquids. e.
- Page 6 infirm persons without supervision. 16. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. 17. Any accessories not recommended by the manufacturer may cause injuries to persons. 18.
- Page 7 31. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. 32. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
-
Page 8: Precautions To Be Observed Before And During Servicing To Avoid Possible Exposure To Excessive Microwave Energy
damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. (1) As with any appliance, close supervision is necessary when used by children. -
Page 9: Grounding Instructions
2) Secondary Switch : Type Nos. 3) Monitor Switch : Type Nos. 4) Fuses : UL listed or recognized type fuse rated 15 A. GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 10: Microwave Oven Care
2. Microwave ovens must be placed under dry and non-corrosiveness environments, kept away from heat and humidity, such as gas burner or water tank. 3. To ensure sufficient ventilation, the distance of the back of microwave to the wall should be at least 10 cm, the side to the wall should be at least 5 cm, the free distance above the top surface at least 20 cm. -
Page 11: Tips For Cleaning
removal of a cover which gives protection against exposure to microwave energy. 2. Remove the power cord from the wall outlet before cleaning. 3. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. -
Page 12: Product Instruction
.PRODUCT INSTRUCTION 1) Door lock Microwave oven door must be properly closed in order for it to operate 2) Viewing window Allow user to see the cooking status 3) Rotating ring The glass turntable sits on its wheels; it supports the turntable and helps it to balance when rotating 4) Rotating axis The glass turntable sits on the axis;... -
Page 13: Specification
geared in properly 6) Control panel See below in details (the control panel is subject to change without prior notice) 7) Waveguide cover It is inside the microwave oven, next to the wall of control panel. Never remove the waveguide cover SPECIFICATION Rated Voltage: 120V~60Hz... -
Page 14: Operation Of Control Panel
OPERATION OF CONTROL PANEL 1. BEFORE COOKING The display lights up when plugged in power supply, then enter the... -
Page 15: Power Function
standby state and display shows 1:00. 2. POWER FUNCTION There are ten microwave power levels, 100P, 90P, 80P, 70P, 60P, 50P, 40P, 30P, 20P and 10P, respectively. Press the “Power” button continuously and select the desired microwave power. Press 0~9 number buttons to input the cooking time, the maximum time that can be input is 99:99. - Page 16 must press Stop button once to clear the preset procedure to avoid unintended operation of next time use. DEFROST There are two defrost mode, dEF1 and dEF2, respectively. dEF1 for defrost by weight and dEF2 for defrost by time. Press “Defrost”...
-
Page 17: Auto Cooking
4. AUTO COOKING There are eight automatic menus, popcorn, potato, pizza, frozen vegetable, fresh vegetable, beverage, meat and bread respectively. Select the desired auto menu button and press the corresponding menu button which to be selected continuously to select the desired food weight, and the display shows the corresponding weight. -
Page 18: Kitchen Timer
require increase or decrease of cooking time. b. The temperature, weight and shape of food will largely influence the cooking effect. If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result. - Page 19 7.2 In standby mode, after putting food in and closing the door, press the “START/+30s” button to start the microwave quickly. The default working time is 30 seconds. In the working process, press the “START/+30s” button once for 30 seconds. An buzzing sound to notify completion of the operation.
-
Page 20: Child Lock Function
increase 30 seconds, but the menu mode and weight defrosting mode cannot adjust time. paused state, press “START/+30s” button to continue the microwave oven before cooking mode. 11. CHILD LOCK FUNCTION Use this feature to lock the control panel when you are cleaning or so that children cannot use the oven unsupervised. -
Page 21: Utensils Guideline
function, and the corresponding display will be "ON" or "OFF". 12.3 In the working state or non-working state to open the door, the first step is to use your fingers, push down the knob on the upper side of the handle, and the second step is to open the door. -
Page 22: Cooking Tips
Material Microwave Notes of container Never use the ceramics which are decorated with metal glazed. Recommend using Heat-resistant ceramic, heat-resistant ceramic glass, plastic containers that withstand temperatures above 248 ℉. Heat-resistant Can not be used for long plastic time microwave cooking Heat-resistant glass Grill rack... -
Page 23: Maintenance & Servicing
and extend it according to the actual need. Over cooking may result in smoke and burns. Cooking food evenly Food such as chicken, hamburger or steak should be turned once during cooking. Depending on the type of food, if applicable, stir it from outside to centre of dish once or twice during cooking Allow standing time After cooking times out, leave the food in the oven for an adequate... -
Page 24: Microwave Radiation
in the oven and close the door securely. Oven lamp should go off if the door is closed properly. Let the oven work for 1 min. 2. Does the oven lamp light? 3. Does the cooling fan work? (Put your hand over the rear ventilation openings.) 4. - Page 25 During servicing below listed parts are liable to be removed and give access to potentials above 250V to earth. 1. Magnetron 2. High voltage transformer 3. High voltage capacitor 4. High voltage diode 5. High voltage fuse The following conditions may cause undue microwave exposure during servicing.
- Page 26 to use the oven in a safe way and understands the hazards of improper use. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
