Applications
The room switch turns on and off both regular
and emergency luminaires simultaneously.
This is accomplished by having the room switch
leg power activate the
Emergency Power Control, EPC-1-M.
In the past all emergency lights had to be on 24
hours a day to meet safety codes. However,
now you can specify and install a UL 924 listed
emergency power control device that can
convert and control up to 20 regular light fixtures
to approved emergency lights, which can then
be turned on and off in the same manner as your
regular lights. The emergency power control
Model EPC is ceiling mounted in a single gang
plaster ring and is usually located in the room or
area where the emergency fixtures are.
Patented Automatic Diagnostic Feature
The unique feature of the EPC-1-M is the ability
to place the unit in any location because the
unit does not require an accessible test switch.
Instead, when the room switch is turned off, the
emergency luminaires stay on for 2.5 seconds
and indicate that an emergency power source
was available and that the EPC-1-M, ballast, and
lamp(s) are all functioning correctly.
This feature eliminates the need for manual
monthly testing and is approved for this purpose.
Fire Alarm, Remote Test &
0-10V Dimming Options Available
SINCE 1923
EPC-1-M
Applications and Instructions
Mule Lighting, Inc. 46 Baker Street, Providence, RI 02905
Phone: (800) 556-7690 | Fax: (401) 941-2929
www.mulelighting.com
Emergency Power Source
and Method of Operation
The emergency luminaire power is derived from a 24
hour central emergency power source. The local
utility power company normally supplies the power
through a UL1008 Transfer Switch or equal, but
during a utility power failure, the transfer switch auto-
matically switches to the emergency power source.
The room switch turns on and off both regular and
emergency luminaires simultaneously. This is
accomplished by having the room switch leg power
activate the Emergency Power Control, EPC-1-M.
Wire input #1 or #2 and neutral are connected inter-
nally to a sensing circuit. During a power interrup-
tion on the sensing input, this circuit causes
contact X to drop into a N.C. position and turns on
the emergency load(s). Review wiring diagram, on
reverse, for details.

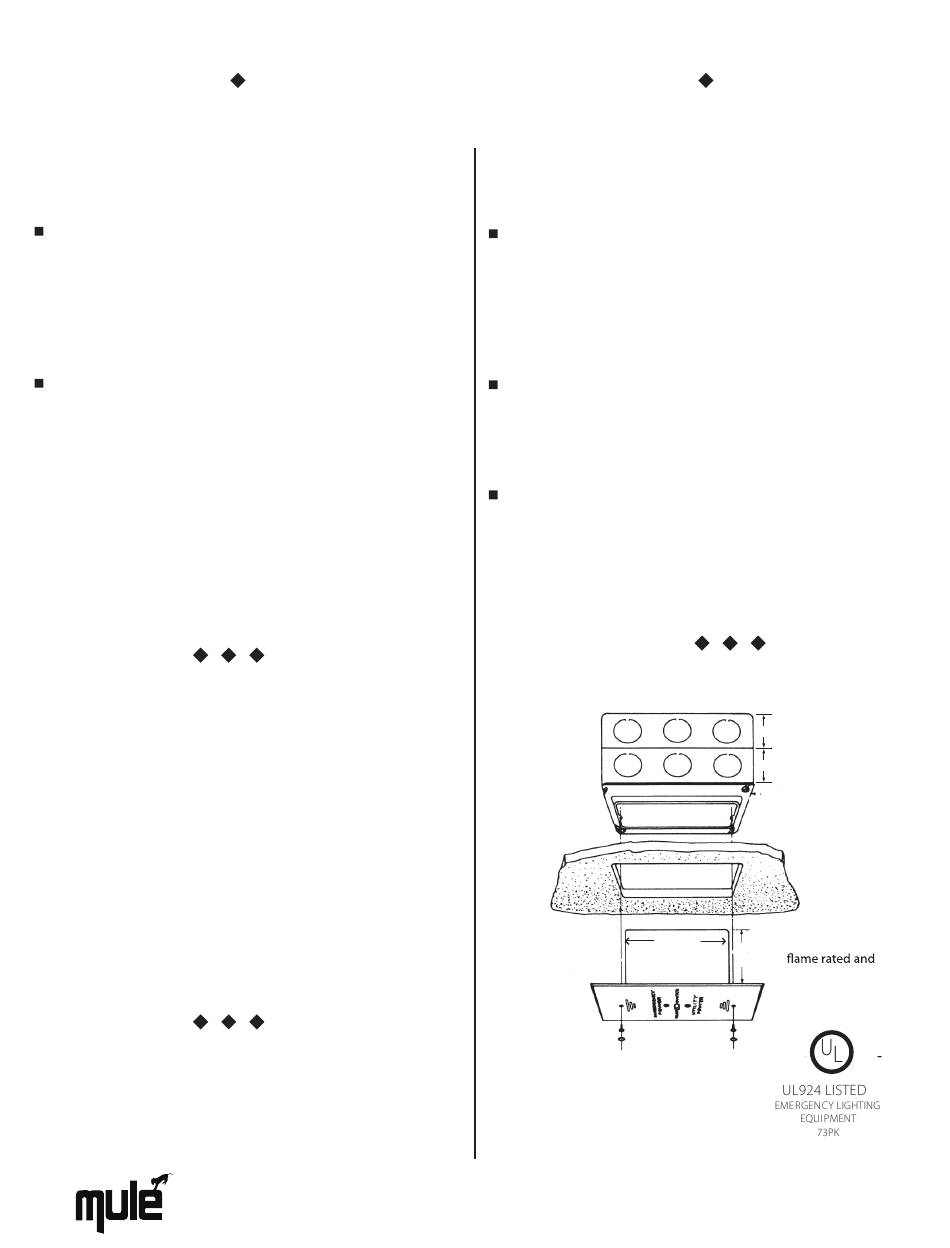

EPC-1-M Flush Mount Ceiling Installation
2-7/8"
5 YEAR LIMITED
WARRANTY
2"
Recommended
Box Size
2"
4-11/16"
1/2"
SINGLE GANG
PLASTER RING
Plastic is UL94-5VA
1-3/4"
can be mounted
above the
suspended ceiling.
®
1
Advertisement
Summary of Contents for Mule Lighting EPC-1-M
- Page 1 EPC-1-M Flush Mount Ceiling Installation Patented Automatic Diagnostic Feature 2” Recommended The unique feature of the EPC-1-M is the ability Box Size 2” to place the unit in any location because the 4-11/16” unit does not require an accessible test switch.
- Page 2 24 hours emergency circuit. Install a self-adhesive 2" x 3" caution label in each fixture or load controlled by an EPC-1-M unit cautioning that this load is supplied from 2 different power sources, regular and emergency. Review wiring diagram and connect wires, one group at a time, in accordance with the numeric identification.
- Page 3 If emergency lights do not stay on for at least 2.5 seconds, confirm wiring connections and perform testing on emergency panel and emergency power source. No maintenance is required to keep the EPC-1-M functional. However, regular testing should be performed when the lamps or ballasts have been replaced or when facility remodeling has taken place.
- Page 4 Common Wiring Scenarios Model: EPC-1 Model: EPC-1-M ...
