Operating Instructions and Parts Manual
Filter-Regulator
Model PA210300AV
Description
The filter/regulator combines a general purpose
filter with a pressure regulator in one compact unit.
The filter is designed to remove most liquid and
solid particles from the air supply. The self-relieving
pressure regulator is used to adjust the outlet
pressure between 0 - 215 psi.
Unpacking
After unpacking the unit, inspect carefully for any
damage that may have occurred during transit.
Make sure to tighten fittings, bolts, etc., before
putting unit into service.
Read & Follow all InstRuctIons
save these InstRuctIons
do not dIscaRd
Safety Guidelines
This manual contains information that is very
important to know and understand. This information
is provided for SAFETY and to PREVENT
EQUIPMENT PROBLEMS. To help recognize this
information, observe the following symbols.
situation which, if not avoided, WILL result in death
or serious injury.
situation which, if not avoided, COULD result in
death or serious injury.
situation which, if not avoided, MAY result in minor
or moderate injury.
© 2012 Campbell Hausfeld/Scott Fetzer
Danger indicates an
imminently hazardous
Warning indicates a
potentially hazardous
Caution indicates a
potentially hazardous
For parts, product & service information visit
www.campbellhausfeld.com

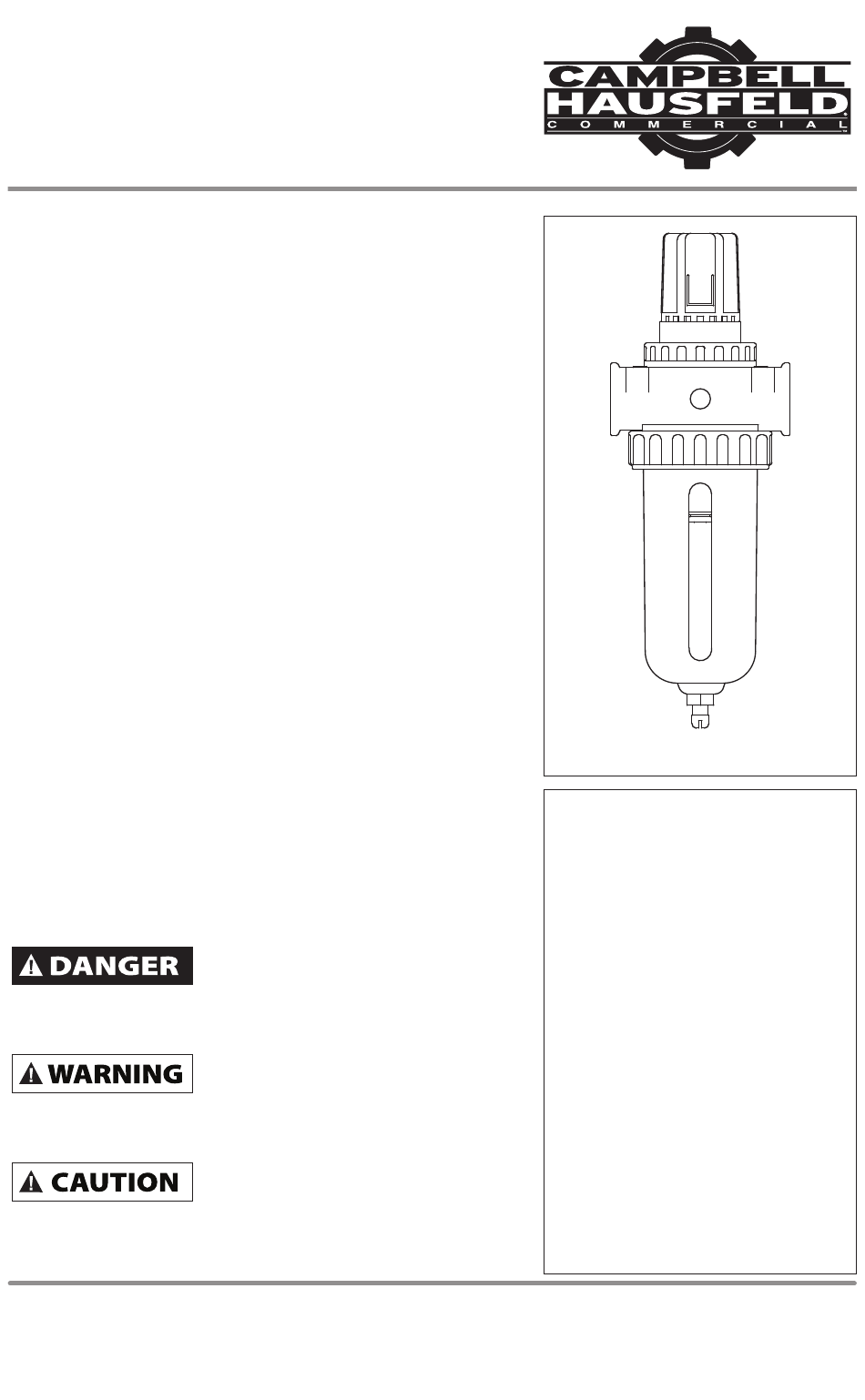

Figure 1 - Pa210300av
Specifications
Regulator
Style . . . . . . . . . . . . . . . Relieving
Temperature
Range . . . . . . . . . 40°F to 140°F
Maximum
Pressure . . . . . . . . . . . . . 250 PSI
Air Inlet/Outlet . . . . 3/8 inch NPT
Flow
Capacity . . . . . . . . . . . . 42 SCFM
Gauge Ports . . . . . . 1/8 inch NPT
Filter Element . . . . . . . . .5 Micron
Drain Capacity . . . . . . . 2 .7 fl . oz .
IN738900AV 9/12
Self
