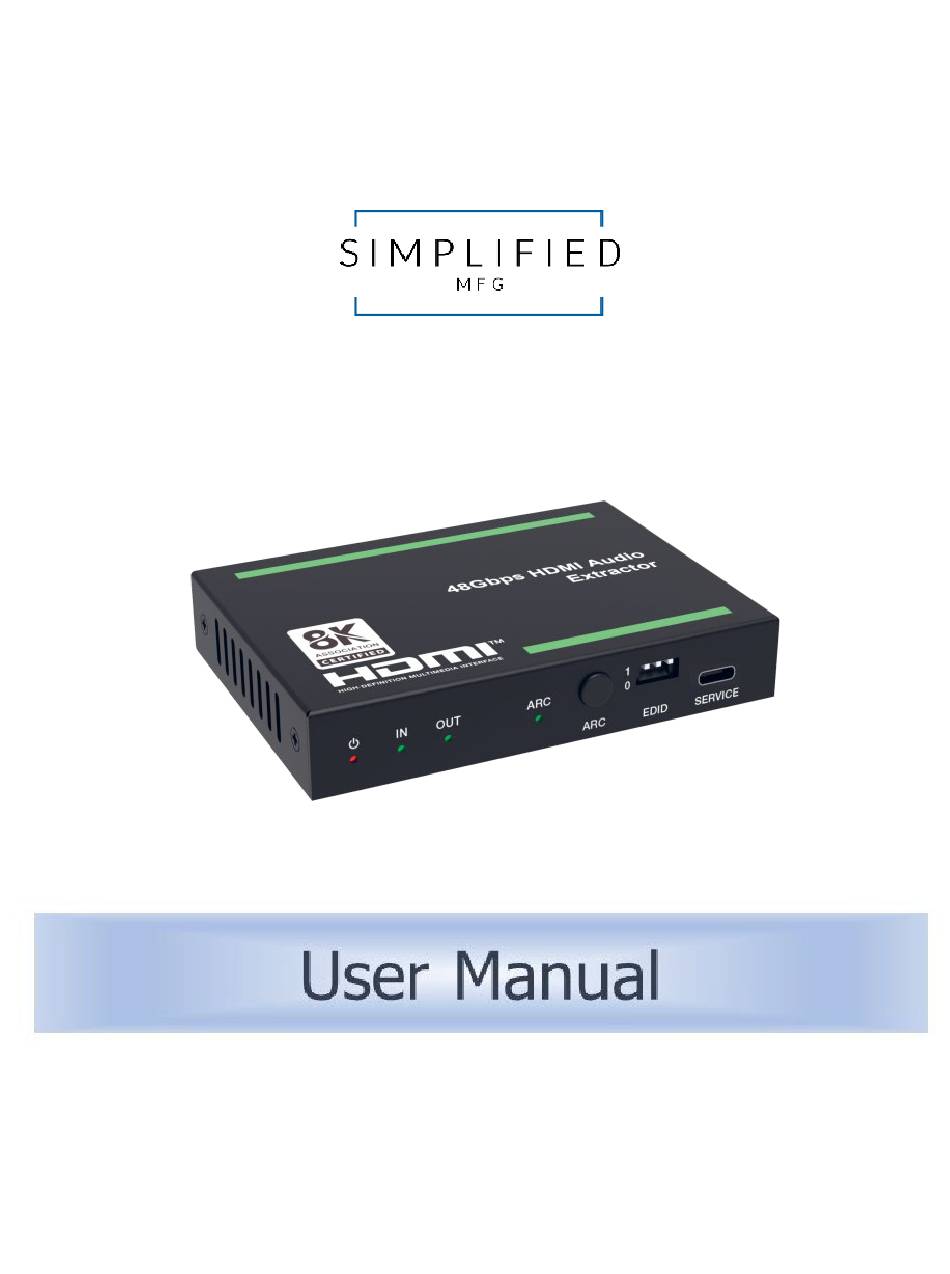

- Page 1 AUDEX2ARC VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing the AUDEX2ARC For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
3.5mm mini-jack. Up to 48Gbps HDMI signals can pass though the AUDEX2ARC and it will extract audio (up to Dolby 5.1) via the optical port or via the 3.5mm mini-jack if the signal is in stereo. The AUDEX2ARC supports the entire HDMI 2.1 format and is HDCP 2.3... -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps FRL and 18Gbps TMDS Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Depth 8/10/12-bit RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Space HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio Formats AUDIO BREAKOUT:... -
Page 5: Operation Controls And Functions
Operation 0°C ~ 40°C / 32°F ~ 104°F Temperature Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) Recommended HDMI Cable Video Resolution 8K60 4K60 1080P HDMI Cable Type Ultra HDMI 2.1 cable HDMI 2.0 cable HDMI cable HDMI Cable 2m/6.6ft ~ 3m/10ft... - Page 6 Name Function Description ARC button Press this button to enable or disable the ARC function. Use the DIP switch to set EDID. [DIP]=111: Copy OUT port sink video and audio EDID [DIP]=110: Copy OUT port sink video EDID, Audio 2.0CH [DIP]=101: Copy OUT port sink video EDID, Audio 5.1CH EDID DIP [DIP]=100: FRL12G_8K_HDR, 2.0CH...
-
Page 7: Application Example
6. Application Example **NOTE** The signal to the amplifier comes from the source unless the “ARC” button in engaged. When the ARC button is engaged, the audio comes from the ARC of the display. 5 / 7... -
Page 8: Warranty
Or b) Replace the product with a new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. -
Page 9: Contact
Sales and Tech Support P. 833-HDMI-411 (833-436-4411) info@simplifiedmfg.com Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210 © Copyright Simplified MFG 2024 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
