Hallowell DigiTech H1 Installation Instructions

INSTALLATION INSTRUCTIONS
Hallowell DigiTech
TM
Special Notes
Before installing the DigiTech lock, insert the battery and familiarise yourself the the operation operation and programming.
Unless manufacted to special order, the lock you are receiving is in day-use operating mode. In this mode, the user must
enter a four-digit code (twice) in order to lock the lock. The lock can be opened at any time using the Master Code.
Unless manurfactured to special order, the default Master Code is 1 1 3 3 5 5 7 7.
This code is common to all stadard locks and it is very important that you set your own personal Master Code.
Your lock is not secure until you have changed the Master Code. Keep a safe record of your master code as it is
not possible to make any programming changes without it.
See programming guide (over) to set you own codes.
ENSURE BATTERY IS CORRECTLY INSTALLED BEFORE ATTACHING LOCK

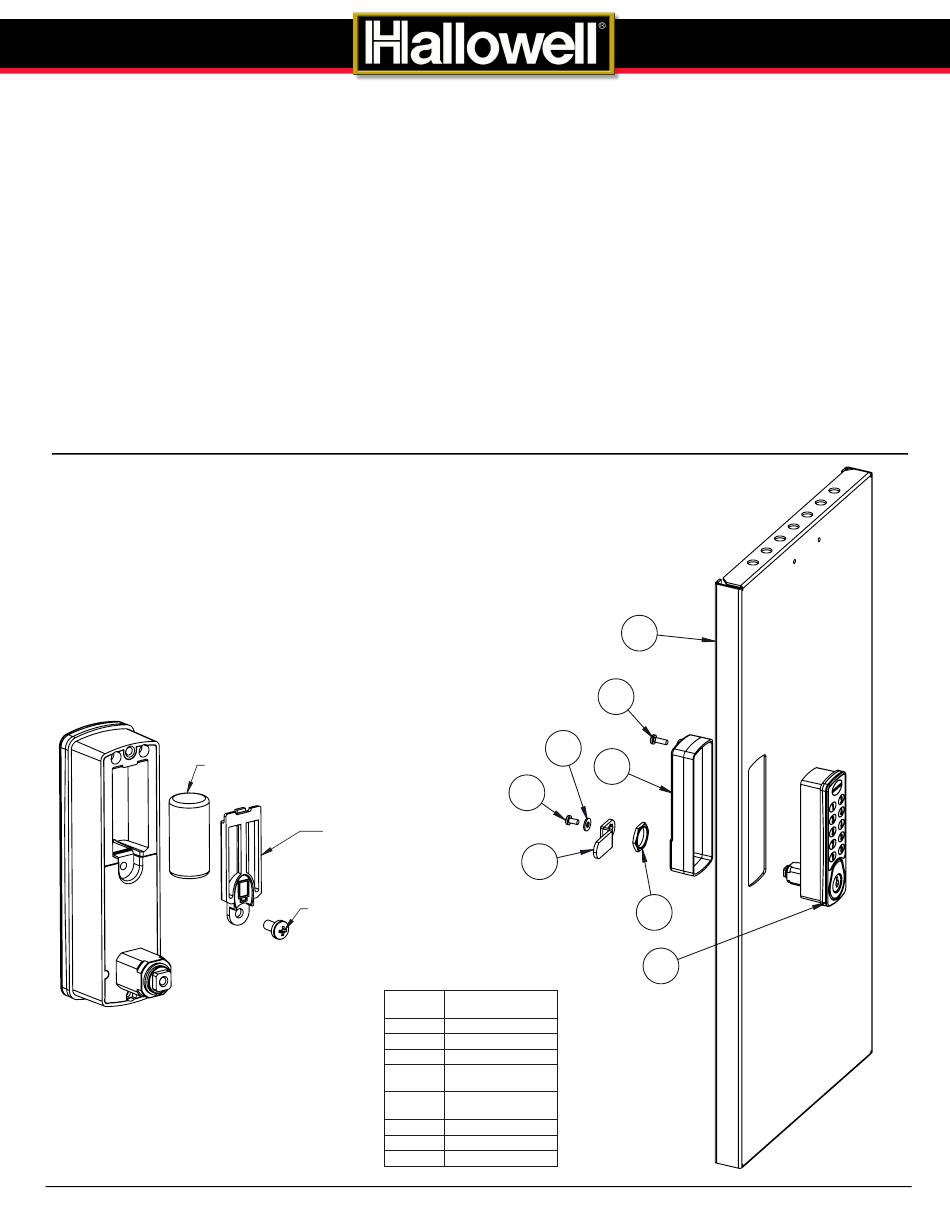

STEP 1
UNPACK LOCK AND REMOVE CAM SCREW(5), WASHER(6) AND CLAMP COVER(3) FROM LOCK BODY(2). INSTALL BATTERY PER INSTRUCTION BELOW
STEP 2
INSERT LOCK BODY(2) THRU THE CUTOUT IN THE DOOR(1) WITH THE KEY END TOWARDS THE BOTTOM OF THE LOCKER/DOOR
STEP 3
INSERT CLAMP COVER(3) ON LOCK BODY(2) AND FASTEN WITH CLAMP NUT(8) AND CLAMP SCREW(4)
STEP 4
INSTALL CAM(7) ON LOCK WITH OFFSET TOWARDS LOCK BODY FASTEN WITH M4 SCREW(5) AND WASHER(6)
NOTE: CAM(7) IS NOT INCLUDED WITH LOCK, IT SHIPS SEPARATELY
STEP 5
OPEN LOCK, CLOSE DOOR AND TEST LOCK.
INSERTING BATTERY
Remove all packaging
Insert battery CR123 as shown
Secure battery with battery
cover using screw
CR123
Battery
-
+
H1 Lock
ELECTRONIC LOCK ASSEMBLY INSTRUCTION
Battery
Cover
Screw
ITEM
NUMBER
1-866-566-0500 • Hallowell-List.com • 2823 W. Orange Ave. Apopka, FL 32703
6
5
7
DESCRIPTION
1 DOOR
2 LOCK BODY
3 CLAMP COVER
CLAMP SCREW
4
M4 X 12MM
CAM SCREW
5
M4 X 8MM
6 WASHER
7 OFFSET CAM
8 CLAMP NUT
1
4
3
8
2
