Logitech MX CREATIVE CONSOLE Manual

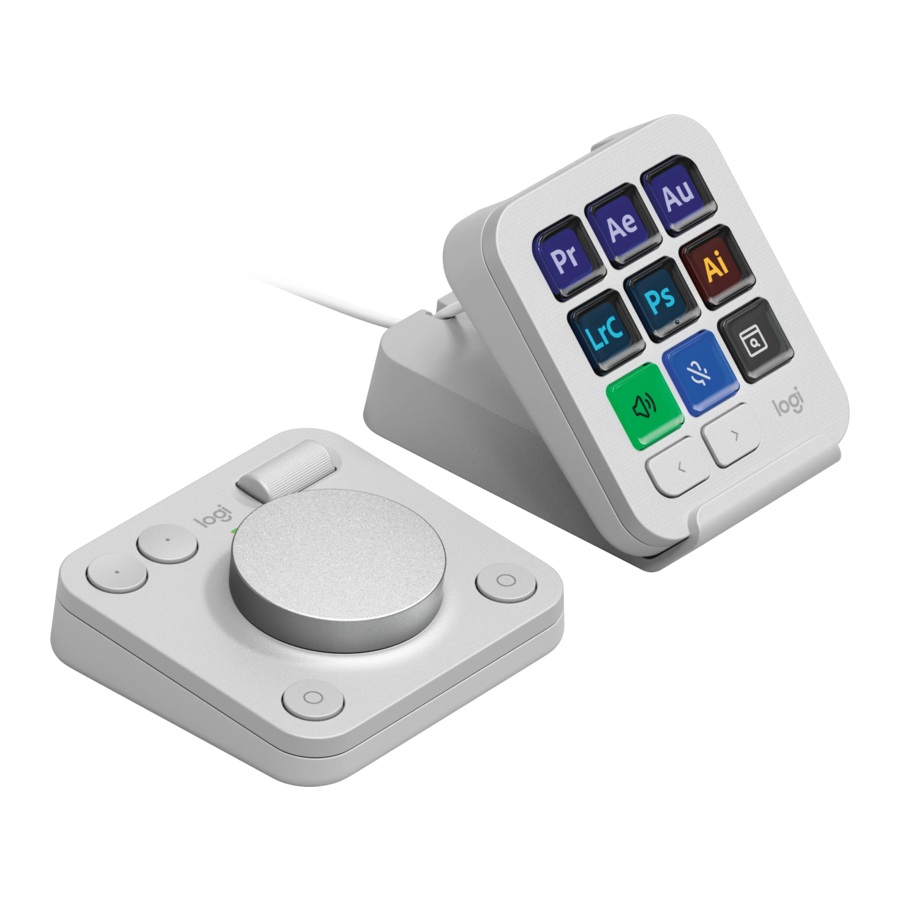

KNOW YOUR PRODUCT

MX Creative Console front view with function indications

MX Creative Console back view with function indications

WHAT'S IN THE BOX

1. MX Creative Dialpad
2. 2x AAA batteries
3. MX Creative Keypad
4. USB-C to C 2 0 cable
5. Stand
6. User documentation

TURN ON YOUR MX CREATIVE DIALPAD TO CONNECT IT

Find the switch on the top of your dialpad and switch it to the ON position If there is no power, try replacing the 2x AAA batteries

THE LED SHOULD BLINK FAST

If not, press and hold the Easy-Switch button (on the back of the dialpad) for 3 seconds When the light begins blinking, the dialpad is ready to pair with your computer

COMPLETE THE PAIRING TO YOUR COMPUTER

On your computer find the Bluetooth^® settings menu and connect your dialpad from there MX Creative Dialpad is also compatible with Logi Bolt.

CONNECT YOUR MX CREATIVE KEYPAD VIA USB-C AND GET STARTED

Plug the USB-C connector into the USB-C port on your computer Your keypad should turn on once powered

USE YOUR KEYPAD FLAT OR TILTED ON ITS STAND

You can use your keypad flat on your desk or tucked into the stand's keypad holder
The cable can be tucked into the cable slot on the back of the stand for better cable management

INSTALL LOGI OPTIONS+

Logi Options+ is a powerful and easy-to-use application that enhances your experience using Logitech devices by enabling you to customize them to work how you want

app.logi.com

DIMENSIONS

MX CREATIVE DIALPAD - 128 g
Height: 92 1 mm (3 62 in)
Width: 93 7mm (3 68 in)
Depth: 33 8 mm (1 33 in)

MX CREATIVE KEYPAD - 96 g
Height: 91 7 mm (3 62 in)
Width: 77 9 mm (3 06 in)
Depth: 25 5 mm (1 00 in)

STAND - 61 g
Height: 112 7 mm (4 43 in)
Width: 58 5 mm (2 30 in)
Depth: 20 5 mm (0 80 in)

USB-C 2.0 CABLE - 27 g
Length: 1500 mm (59 05 in)

www.logitech.com/support/mxcreativeconsole
