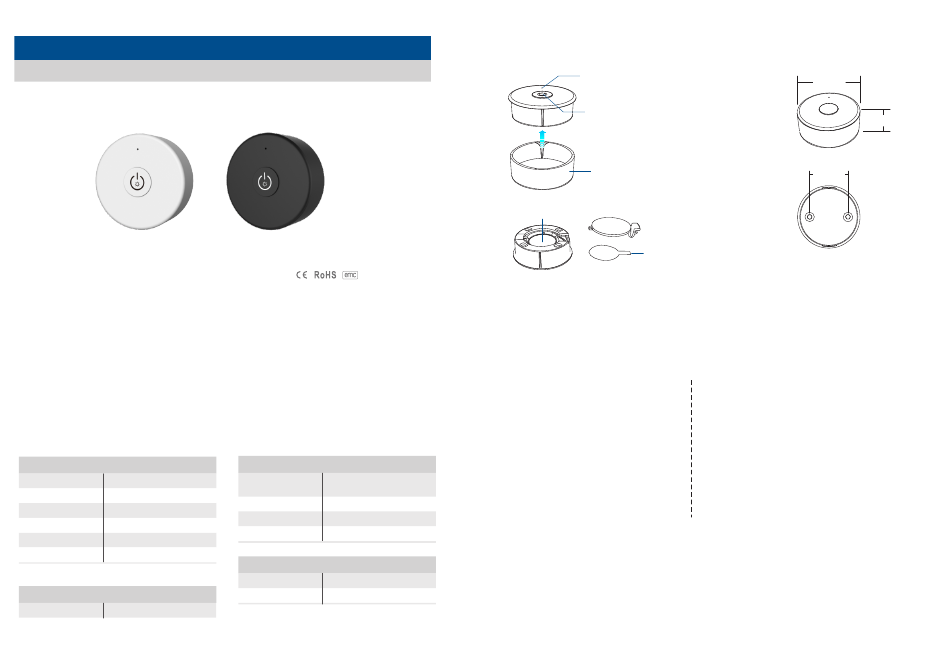

One-key RF Remote Controller
Model No.: R1-1
One-key portable dimmer/Wireless remote 30m distance/CR2032 batter y/Magnet stuck fix
Features
● Apply to single color LED controller.
● Each remote can match one or more receiver.
● R
C 2032 attery powered.
b
● Operate with LED indicator light.
● Magnet on the back which can be easily stuck on any metal surfaces.
Technical Parameters
Input and Output
Output signal
RF 2.4GHz
(
)
Working voltage
3VDC CR2032
(
)
Working current
<5mA
Standby current
<2μA
Standby time
2 years
Remote distance
30m(Barrier-free space)
Warranty
5 years
Warranty
User Manual Ver 1.0.9
LVD RED
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Radio Equipment(RED)
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Certification
Environment
Ta: -30
O
C ~ +55
O
C
Operation temperature
IP rating
IP20
Mechanical Structures and Installations
LED indicator
Click to turn on/off,
Press and hold 1-6s to increase/
decrease brightness.
Back holder with magnet
CR2032
Battery
Note: Before the first use,
please remove the protective film on the battery.
To fix the remote, three options are offered for selection:
Option 1: stuck on any metal surfaces directly.
Option 2: fix it on the wall with two screws.
Option 3: adhere it to the wall with paster.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller's Match key
Match:
Short press match key,
immediately press on/off key on the remote.
The LED indicator fast flash a few times
means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times
means all matched remotes were deleted.
Safety information
1. Read all instructions carefully before you begin this installation.
2. When installing batter y, pay attention to the batter y positive and negative polarity.
A long time without the remote control, remove the batter y.
When remote distance becomes smaller and insensitive, replace the batter y.
3. If no response from the receiver, please re-match the remote.
4. Gently handle remote, beware of falling.
5. For indoor and dr y location use only.
R1-1 One-key RF Remote Controller
43.00 mm
17.00 mm
26.50 mm
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.
