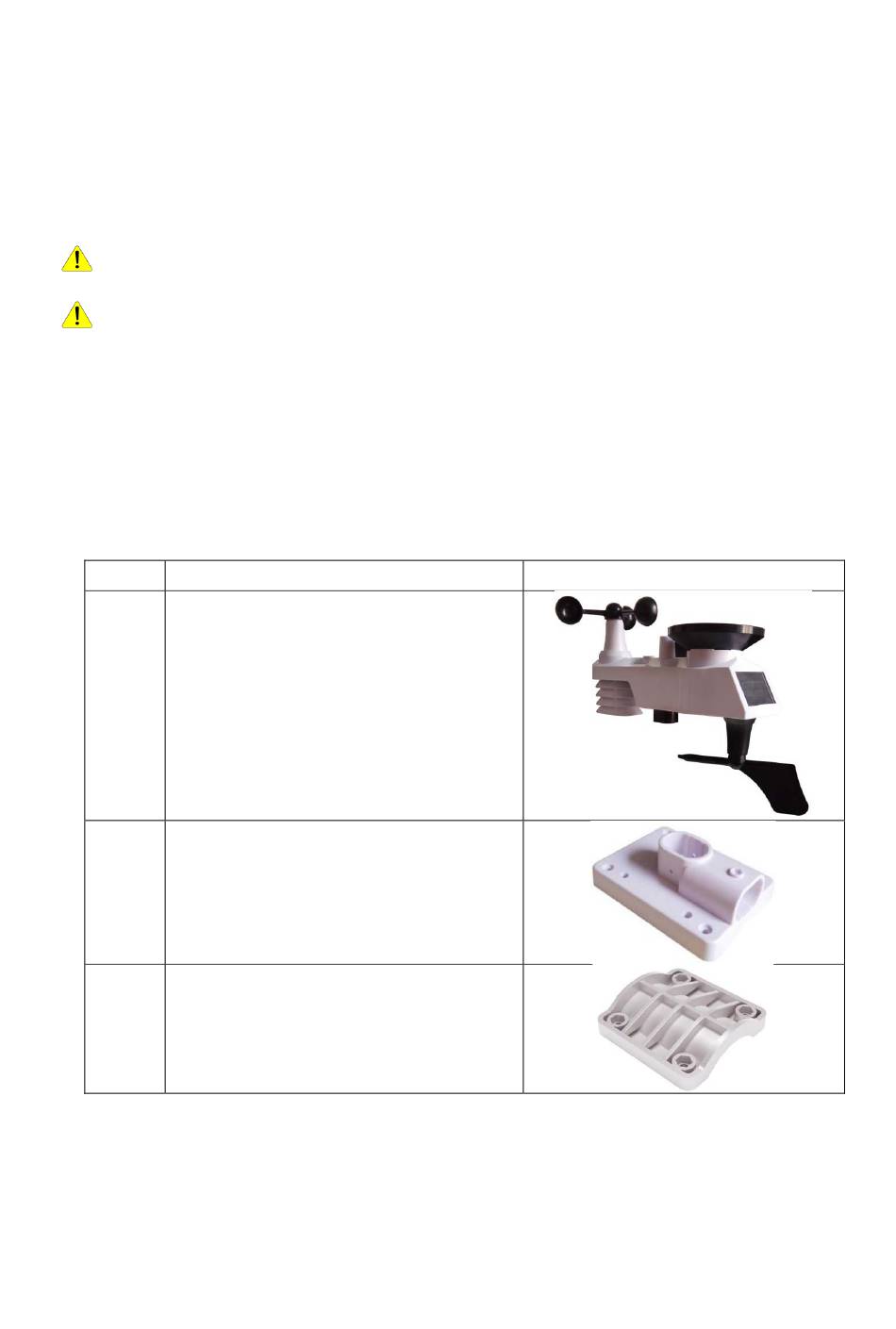

WS020TL Integrated Outdoor Sensor User Manual
1. Introduction
Thank you for your purchase of the Integrated Outdoor Sensor. The following user guide
provides step by step instructions for installation, operation and troubleshooting.
2. Warnings
Warning: Any metal object may attract a lightning strike, including your weather
station mounting pole. Never install the weather station in a storm.
Warning: Installing your weather station in an elevated location may result in injury or
death. Safety goes first. Make sure your setup and preparation is secure, and take no risks.
3. Getting Started
Integrated Outdoor Transmitter and mounting hardware
3.1 Parts List
Integrated Outdoor Sensor consists of the following parts (as referenced in Figure 1 ).
QTY
Integrated Outdoor Transmitter
1
Dimensions (LxHxW):
330x150x280mm
Foot Mounting (with pole insert)
1
Dimensions: 101x 76 x 32mm
Mounting Bracket Back Plate (pole
mount)
1
Dimensions: 76 x 102 x 38mm
Item
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS020TL and is the answer not in the manual?

Questions and answers

Summary of Contents for Eastern Times Technology WS020TL

  • Page 1 WS020TL Integrated Outdoor Sensor User Manual 1. Introduction Thank you for your purchase of the Integrated Outdoor Sensor. The following user guide provides step by step instructions for installation, operation and troubleshooting. 2. Warnings Warning: Any metal object may attract a lightning strike, including your weather station mounting pole.
  • Page 2 unting Pole mensions: 30 00 x 300 x 2 20mm Pole e mounting n nuts (M3) / bolts Ø3) Pole e mounting n nuts (M5) / bolts ( Ø5) Tapp ping screws nual Figure 1 3.2 R Recomm end Too recision scre ewdriver (fo or small Phi...
  • Page 3 Figure 2 3.3.1 Insert batteries into the transmitter. Locate the battery door on the transmitter, push and open the battery compartment, as show in Figure 3. Figure 3 Remove the battery door on the back of the sensor by removing the set screw, as shown in Figure 4.
  • Page 4 Figure 4 Inserting 3xAA batteries in the battery compartment, as show in Figure 5. Figure 5 Close the battery cover. Make sure the gasket (around the battery compartment) is properly seated in its place prior to closing the door. Tighten the set screw. Note: Do not install the batteries backwards.
  • Page 5 Note: If the sensor does not power up after inserting the batteries, press the reset button shown in Figure 6. Figure 6 3.4.2Sensor Operation Verification The following steps verify proper operation of the sensors prior to installing the sensor array. 1.
  • Page 6 Figure 8 Tighten the mounting pole to your mounting pole(purchased separately) with the four¢5 Bolts and M5 Nuts assembly, or fix on the wall with four tapping screw, as shown in Figure9.
  • Page 7: Low Battery Icon

    Figure 9 5. Low Battery Icon A low battery indicator icon is shown in the display window for Integrated outdoor transmitter. When the low battery icon appears (the battery voltage is lower than 3.6V), replace the batteries in the sensor with fresh batteries. Be sure to never mix old and new batteries, and never mix battery types such as alkaline and lithium together.
  • Page 8: Power Consumption

    Measurement Range Accuracy Resolution Outdoor Temperature -40 to 60 °C ± 1 °C 0.1 °C Outdoor Humidity 10 to 99% ± 5% (only guaranteed between 20 to 90%) UV Index 1 to 15+ ± 1 ± 1 Sunlight 0 to 200klux ±...
  • Page 9: Troubleshooting Guide

    2. Replace the wind, rain and thermo-hygrometer transmitter batteries once every 1-2 years 8 Troubleshooting Guide. Problem Solution Outdoor Temperature do not agree Allow up to one hour for the sensors to stabilize due to signal filtering. A known source and outdoor temperature sensors should agree within 2 °C (the sensor accuracy is ±...
  • Page 10: Fcc Statement

    FCC Statement Statement according to FCC part 15.19: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
