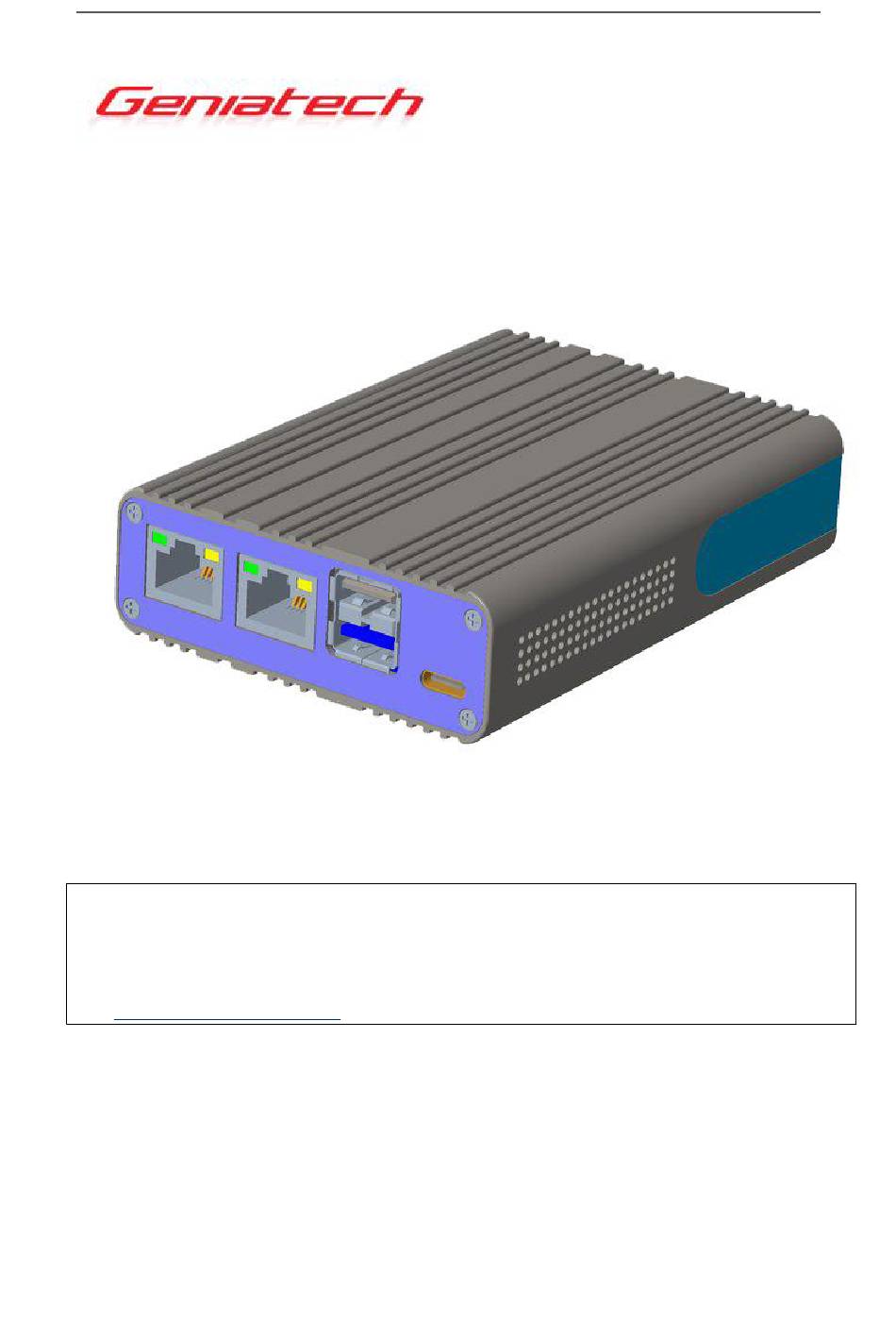

Stix3800

User's Guide

Thank you for purchasing this Geniatech product.

.Before using it, be sure to read the precautions contained in this User's Guide.

.Keep the User's Guide in a safe place for future reference.

.For the most up-to-date information about this product, visit official website at

http://www.geniatech.com

Table of Contents

Need help?

Do you have a question about the Stix3800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geniatech Stix3800

Page 1 Stix3800 User’s Guide Thank you for purchasing this Geniatech product. .Before using it, be sure to read the precautions contained in this User’s Guide. .Keep the User’s Guide in a safe place for future reference. .For the most up-to-date information about this product, visit official website at...
Page 2: Table Of Contents
Contents 1. Safety Information, P4-5 1.1 Warning, P4 1.2 Precautions, P4-5 1.3 Handling Cautions, P5 2. Introduction, P6-8 2.1 Package Contents, P6 2.2 Product Features, P6 2.3 Appearance , P7 2.4 Interface definition P7 2.5 Display when Power Up, P9 3.
Page 3 4. Apps Install & Uninstall , P24 5. Firmware Update , P24 6. Trouble Shooting/FAQ , P25 7. Repairs , P25 8. Specification , P26 9. Trademark Notice , P27...
Page 4: Safety Information
1. Safety Information Read and understand all instructions before using this product. If damage is caused by failure to follow the instructions, the warranty does not apply. 1.1 Warning To reduce the risk of electric shock, DO NOT remove the cover (or back). DO NOT attempt to repair the product, this could lead to the risk of injury, damage to the product .
Page 5: Handling Cautions, P5
convenience receptacles, and the point where it exits the apparatus. 1.2.10 Only use attachments/accessories specified by the manufacturer. 1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used , use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Page 6: Introduction
2. Introduction 2.1 Package Contents Developer Board– DB3568 User’s Guide HDMI Cable Fiber Optical Cable, RJ45 Network Cable IR Remote Controller (IR RC) Optional Remote Controller 2.4G wireless Remote Controller USB wire/wireless Mouse & Keyboard Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 12.0V-2A 2.2 Product Features Rockchip RK3568 Quad-core CPU Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU...
Page 7 Label Functional Description Remark RJ45 Ethernet-1 interface, Support PoE PD. Ethernet-1 Ethernet-2 RJ45 Ethernet-2 interface USB3.0 interface 2x Type A J2503 Power supply interface 1x Type C HDMI Out 1x Type A SD Card 1x Micro SD slot Reset Key System reboot button Internal Debug Serial Port Diagram...
Page 8: Display When Power Up, P9
2.5 Display when Power Up 2.5.1 After booting up, during the loading process, the TV will first display the "Android" interface, and then there will be a booting animation of "Enjoy TV". When the load is complete, it will go to the home screen. 2.5.2 Home Screen display.
Page 9 3.1 WiFi 3.1.1 It will automatically scan ambient WiFi networks when select “ON”. Connect an available WiFi network. If connect a secured WiFi network, corresponding password will be input firstly. Or fail to connect and need reset password. Once build up the connection with a certain WiFi network successfully, DB3568 will connect this WiFi network automatically when restart.
Page 10 3.1.2 Wi-Fi hotspot If you want to share WIFI with your friends, you can set the wi-fi hotspot here, set the wi-fi password, and turn on the hostpot switch for transmission. 3.2 Bluetooth...
Page 11: Data Saver, P12
3.3 Ethernet 3.4 Data Saver Data Saver prevents some apps from sending or receiving data in the background...
Page 12: Networks & Internet, P13
3.5 Networks & internet 3.6 Multiple users You can add user or configuration here...
Page 13 3.7 Sound 3.7.1 Volumes Increase or decrease sound volumes 3.7.2 Touch Sounds If enable Touch sound, sound will be heard while move remote controller. 3.7.3 Sound Input Devices 3.7.4 Sound Output Devices 3.8 Display 3.8.1 Display size make the items on your screen smaller or larger. Some apps on your screen may change position.
Page 14 3.8.2 Font size Change the font size of OSD.，Make the text on screen smaller or larger 3.8.3 Cast screen...
Page 15 3.8.4 Screenshot Here you can set the screen shot time and select the image location 3.9 Storage Shows the storage used of the OS and SD card.
Page 16: Apps&Notifications, P17
3.10 Apps&notifications List all apps installed. You can choose an application and force to shut down the app, uninstall the app, clear user data, move to SD card and clear cache data. 3.11 Google services...
Page 17 3.12 Notification 3.13 Location...
Page 18 3.14 Security 3.15 Languages & input Change OSD language and input method. The default input method is android standard keyboard. If you are using our IR remote control, enter into “Default” option and switch to remote controller input method.
Page 19: Reset Options, P20
3.16 Reset options Factory data rest: You can reset all the settings and apps to factory default. Note: You might want to backup important data before resetting the box. Once you choose to rest to factory default, all data/apps will be deleted. 3.17 Sleep Find the display button and find Sleep.
Page 20: Add An Account, P21
3.18 Add an account 3.19 Date & time...
Page 21: Choose Wallpaper From, P22
3.20 Choose wallpaper from Users can choose wallpaper photos from albums and historical wallpapers according to their preferences. 3.21 Screen saver Interface Settings：can set the clock, color, theme, page photos.
Page 22: About Device, P23
3.22 About device. 3.23 Camera settings...
Page 23: Apps Install & Uninstall
SD card that you have mounted onto DB3568. You also can manage apps on DB3568 and SD card, install/uninstall apps, stop running apps, or select other options. 5. Firmware Update You can download newest firmware from Geniatech Official website: www.geniatech.com...
Page 24: Troubleshooting (Faq)
We will provide you with the amount of the administration fee before we make a home visit or begin any work on your player. We recommend you read this manual throughly, search for a solution on line at www.geniatech.com, or contact Geniatech Customer Care before seeking to repair your player. 8. Specification...
Page 25: Trademark Notice
Quad-core ARM Cortex-A55 CPU and Mali-G52 GPU Mali-T860MP4 GPU (ARM Frame Buffer Compression) 4G DDR4 16G eMMC Android 11.0 and Linux(Debian) 2*USB2.0 HDMI 1*HDMI OUT DC Input 5.0V-2A Video Output HDMI POE socket 2*（4Pin2.0） 1*（Max to 128GB） TF Card socket 2*RJ45 10/100/1000M Ethernet interface WiFi IEEE 802.11 AC 2.4G &5.8G(optional)
Page 26 States and other countries. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
