Giant Alarm System IC-20CSQ User Manual

IC-20CSQ 产品说明书
User Manual
Wireless Car Charger
Product Features
1.Built-in strong magnets, easier for one-hand operation.
2.Built-in smart semiconductor chilling plate and cooling fan, the
fan will start working when the wireless charging starts,the chilling
plate cools the wireless charging coil and the phone surface
simultaneously to improve the wireless charging efficiency.
The semiconductor chilling plate stops working when the phone
is removed.
3.Standby mode: The RGB light runnning three laps and it keeps green.
4.Charging mode：The colorful lights of the fan change gradually,the
light goes off once removed the receiver.
5.FOD function: when put metal or magnet objects on the charger,
the wireless charging stops working and the phone does not charge.
6.Perfect protective function based on over-voltage, over-current,
over-temperature and short-circuit protection.
Product Operating Guide
1. Please make sure the product connect to the power before using.
2. The product stop charging when the current is too large or there is
foreign object. Do not wireless charging the phone if similar
situation happened.
3. Please purchase the wireless receiver module or case separately
(Not included in the product) if your phone do not support
wireless charging.
4. The power input is 5V-12V, when placed the phone and wireless
charging starts, the chilling plate works and the fan rotates. When the
phone is removed, the chilling plate stops working and the fan stops
rotating 30 seconds later.
5. It is recommended to use phone case less than 2mm thick. The product
cools the phone backside surface,too thickness phone case will affect
the cooling effect.
Product Parts Description
Specifications
Input
DC 9V/3A,5V/3A
Output
15W/5W
Product Standard Qi2
Charging Distance 10mm
80%
Charging Efficiency
Product Dimension 71.7*45*71.7mm
Product Material ABS+Tempered Glass
Fast wireless charging requires QC or PD adapters.

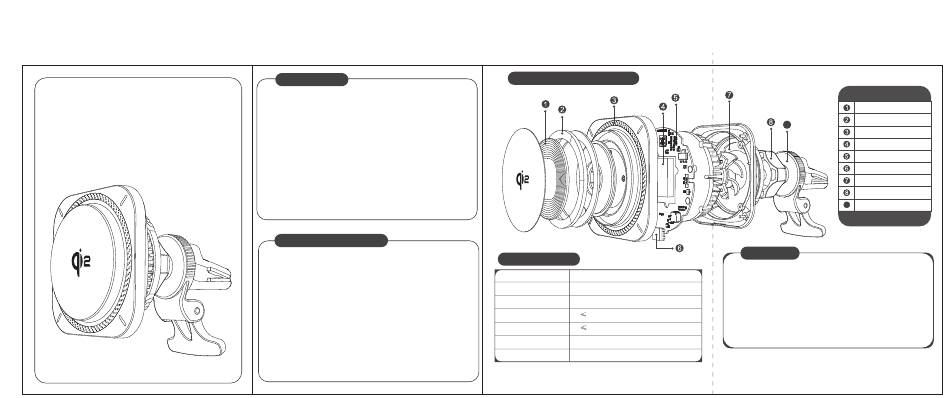

Parts List
Charging Transmitter Coil
Magnet
9
RGB Light
Electronic Refrigeration
PCB
Type-C Charging Port
Cooling Fan
Knob
9 Vent Clip
Attention
1.Please do not vigorously extrude or collide.
2.Please do not dismantle or put it into fire or water when the
product is power on,to avoid short circuit or leakage.
3.Please do not use it in severely high temperature,high humidity
or corrosive environment,to avoid damage to the circuit leakage.
4.Please do not put the magnetic strip or chip card (Such as ID
card,bankcard etc.)on the charging pad to avoid to cause
magneticcard lose efficacy.
5.Please do not put the metal (Such as coin etc.) on the charging
pad when charging,to avoid damage from heating.
Note:This product is applicable to all Qi standard wireless
charging phones,other phones need an external
receiver for wireless charging function.
