1,5m sliding wardrobe
Hide thumbs

Advertisement

Quick Links

Download this manual
Actual product size
H190.4 x W155cm x D55.6
IMPORTANT─ RETAIN FOR FUTURE REFERENCE
Produced in Italy for Next Retail Ltd.
D41648
FLYNN 1,5m SLIDING WARDROBE
D41648
Assembly instructions
Need Help?
With: Assembly instructions
Missing or damaged parts
CALL: 0333 777 8999

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLYNN D41648 and is the answer not in the manual?

Questions and answers

Related Manuals for Next FLYNN D41648

Summary of Contents for Next FLYNN D41648

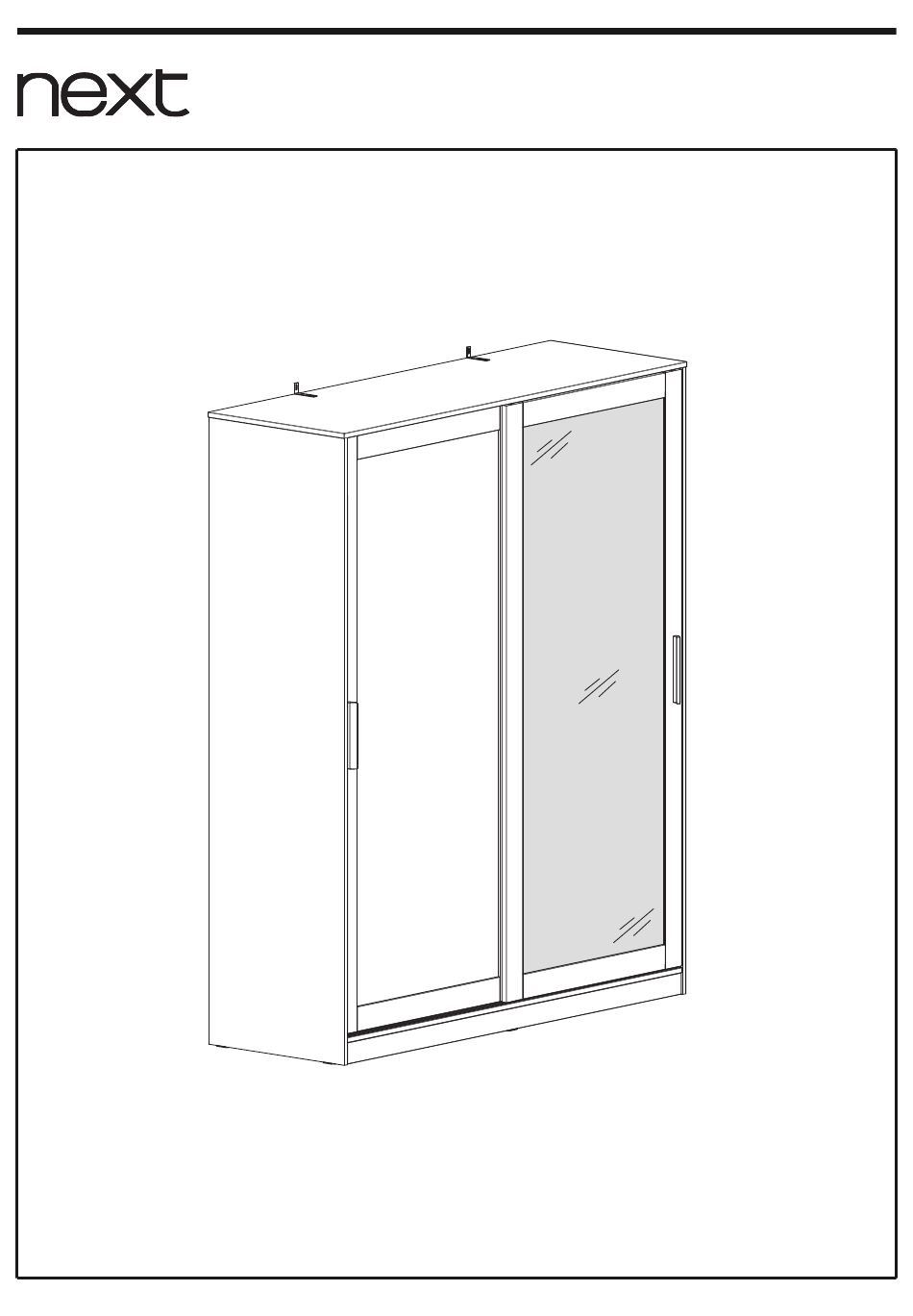

  • Page 1 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Actual product size H190.4 x W155cm x D55.6 Need Help? With: Assembly instructions Missing or damaged parts CALL: 0333 777 8999 IMPORTANT─ RETAIN FOR FUTURE REFERENCE Produced in Italy for Next Retail Ltd. D41648...

  • Page 2: Before You Start

    To View our full furniture range please visit www.next.co.uk PRODUCT SUPPLIED WITH WALL FIXING BRACKETS Produced in Italy for Next Retail Ltd.

  • Page 3: Getting To Know Your Product

    40 x 6,5cm 188 x 53cm 3 183 x 76,3cm 151 x 6,5cm 4 180 x 46,5cm 179 x 79cm 11 20 x 1,87cm 155 x 53cm 179 x 79cm 75 x 46,5cm Produced in Italy for Next Retail Ltd. D41648...
  • Page 4 15 x 12.5mm 8 x 30mm 3.5 x 15mm 3.5 x 25mm 20 x 12.5mm 9 x 17mm 1,5 x 25mm 4 x 30mm 3,5 x 15mm Ø5 x 15mm Ø7 x 50mm Produced in Italy for Next Retail Ltd. D41648...
  • Page 5 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Fixtures and fittings supplied (not to scale) Fixtures and fittings supplied (not to scale) Ref Dimensions Visual Ref Dimensions Visual 13x13x35mm 8x20x100mm 76x32x15mm 739mm 6,5x13x1512 Produced in Italy for Next Retail Ltd. D41648...
  • Page 6 Use a cross-point screwdriver (PH2 or PZ2 is ideal) to tighten the cams and lock the panels together. The panels are locked when each cam is turned to between 1/2 and 2/3 of a full turn (Maximum rotation) Produced in Italy for Next Retail Ltd. D41648...
  • Page 7 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 8 x 30mm C x 4 15 x 12.5mm B x 4 12.5 Produced in Italy for Next Retail Ltd. D41648...
  • Page 8 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR CORRECT WRONG 8 x 36mm A x 4 N x 6 Produced in Italy for Next Retail Ltd. D41648...
  • Page 9 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 8 x 30mm C x 8 15 x 12.5mm B x 8 12.5 Produced in Italy for Next Retail Ltd. D41648...
  • Page 10 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR CORRECT WRONG 8 x 36mm A x 8 20 x 12.5mm F x 8 Produced in Italy for Next Retail Ltd. D41648...
  • Page 11 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 8 x 30mm C x 2 15 x 12.5mm B x 2 12.5 Produced in Italy for Next Retail Ltd. D41648...
  • Page 12 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR CORRECT WRONG 8 x 36mm A x 2 7 x 50mm M x 2 Produced in Italy for Next Retail Ltd. D41648...
  • Page 13 START CORRECT LOCK DON’T STOP UNTIL THE 2 O’CLOCK LOCK TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE ARROW POINTS IN THE POSITIONS SHOWN IN THE DIAGRAMS BELOW START CORRECT LOCK Produced in Italy for Next Retail Ltd. D41648...
  • Page 14 D41648 Assembly instructions DON’T STOP UNTIL THE 2 O’CLOCK LOCK TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE ARROW POINTS IN THE POSITIONS SHOWN IN THE DIAGRAMS BELOW START CORRECT LOCK Produced in Italy for Next Retail Ltd. D41648...
  • Page 15 D41648 Assembly instructions Important: The cabinet MUST be ‘square’ when the back is attached. 1.5 x 25mm P x 1 H x 10 S x 4 3.5 x 25mm E x 4 Produced in Italy for Next Retail Ltd. D41648...
  • Page 16 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Q x 12 13x13x35mm 3.5 x 25mm O x 3 E x 9 Produced in Italy for Next Retail Ltd. D41648...
  • Page 17 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions V x 4 6,5x13x1512mm Produced in Italy for Next Retail Ltd. D41648...
  • Page 18 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 739mm 3.5 x 15mm 9 x 17mm U x 2 D x 8 T x 4 G x 8 Produced in Italy for Next Retail Ltd. D41648...
  • Page 19 Wall plug and screw not included. 76x32x15mm Ø5 x 15mm 3.5 x 15mm 8 x 20 x 100mm R x 2 L x 4 D x 2 J x 2 Produced in Italy for Next Retail Ltd. D41648...
  • Page 20 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 3,5 x 15mm W x 4 Z x 4 K x 8 Produced in Italy for Next Retail Ltd. D41648...
  • Page 21 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Produced in Italy for Next Retail Ltd. D41648...
  • Page 22 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Produced in Italy for Next Retail Ltd. D41648...
  • Page 23 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Produced in Italy for Next Retail Ltd. D41648...
  • Page 24 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions DOORS ADJUSTMENT INSTRUCTIONS Produced in Italy for Next Retail Ltd. D41648...
  • Page 25 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions 3,5 x 15mm K x 2 Y x 2 4 x 30mm i x 4 Produced in Italy for Next Retail Ltd. D41648...
  • Page 26 FLYNN 1,5m SLIDING WARDROBE D41648 Assembly instructions Actual product size H190.4 x W155 x D55.6cm Produced in Italy for Next Retail Ltd. D41648...
