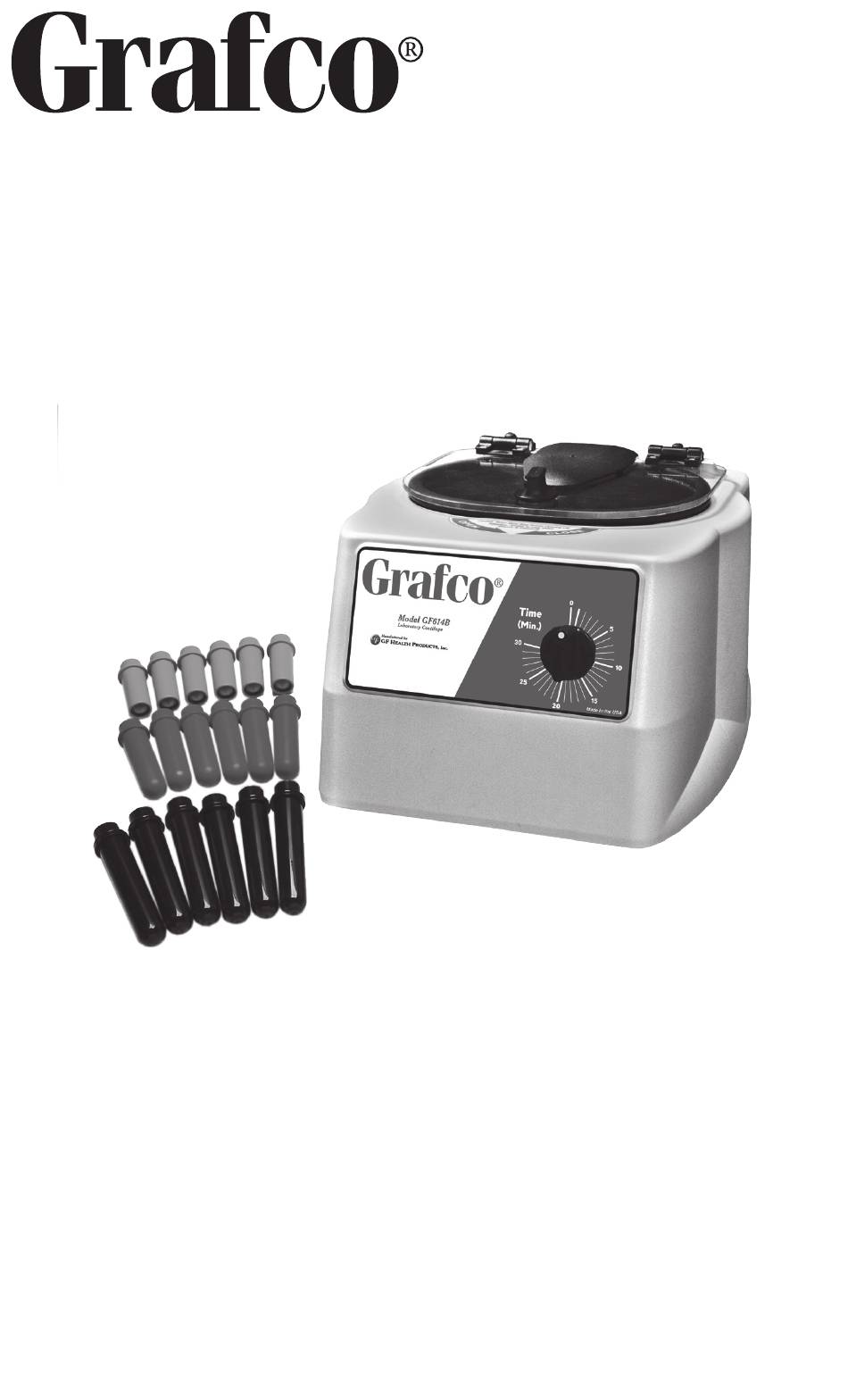

- Page 1 Laboratory Centrifuge Model GF614B User Manual Read this manual before operating the GF614B Laboratory Centrifuge. Save this manual for future reference. GF614B-INS-LAB-RevC15...
-
Page 2: Table Of Contents
The most current product information, including the most current version of these instructions, can be found online at www.grahamfield.com. © 2007 GF Health Products, Inc. Graham-Field and Grafco are registered trademarks of GF Health Products, Inc. GF614B-INS-LAB-RevC15... -
Page 3: Important Safety Guidelines-Please Read Before Use
WARNING: Important! Read and understand these instructions before installing or using the Grafco GF614B Laboratory Centrifuge. If you do not understand any part of these instructions, contact your medical professional or GF authorized distributor for direction in the use of this product. -
Page 4: Intended Use
INTENDED USE The Grafco Model GF614B is a continuous duty centrifuge designed for the small lab or doctor’s office for the purpose of separating laboratory fluid; any other use is explicitly prohibited. -
Page 5: Supplied Equipment
Tube holder, 75 mm Tube holder, 100 mm Tube holder, 125 mm OPTIONAL ACCESSORIES The following items are optional accessories for the Model GF614B centrifuge. Please contact your GF authorized distributor to purchase these accessories. Optional Item Number Description accessories... -
Page 6: Main Features
Main features Picture of GF614B with main features labeled follows. lid latch circuit breaker (in back of unit) power cord and plug (in back of unit) rotor (beneath lid) tube holders lid latch for 75 mm tubes knob (GF614B-75) timer... -
Page 7: Initial Setup
5. Turn the centrifuge on by turning the timer to 10 minutes. 6. Listen to the centrifuge. You should hear a smooth whirring sound. Info: After the centrifuge has passed this procedure, it is ready for operation WARNING: Ensure that Centrifuge is installed as described before use. GF614B-INS-LAB-RevC15... -
Page 8: Balanced Loads
The lid safety switch prevents the centrifuge from operating while the lid is open. Circuit Breaker: The Model GF614B has a 4 Amp circuit breaker at the rear of the base that disconnects power in the event of an overload, preventing the device from operating. -
Page 9: Operation
Do not open the lid until the rotor has come to a complete stop. 9. Turn the lid latch knob counter-clockwise and open the lid. 10. Remove the samples. 11. The centrifuge is immediately ready for operation. GF614B-INS-LAB-RevC15... -
Page 10: Maintenance
ALWAYS Spin Balanced Loads Ensure that you always spin a balanced load. The Model GF614B has a unique counter-balanced motor- mount design which, along with its rubber suction feet, produces excellent vibration dampening. However, out-of- balance loads may break glass test tubes and/or produce unsatisfactory separation results. -
Page 11: Keep The Rotor Chamber Clean
Replace the tube holder in the rotor. Motor and Electrical Maintenance: The Model GF614B uses a brushless A/C motor. The motor and electrical components should not need servicing for the life of the centrifuge. -
Page 12: Tube Holder Replacement
(for top speed, see SPECIFICATIONS section). Testing ground continuity and leakage current (to be performed only by a qualified service technician) WARNING: To reduce the risk of electric shock, test the ground continuity and line leakage every two years. GF614B-INS-LAB-RevC15... -
Page 13: Troubleshooting
Ensure that the circuit breaker at the rear of the base, that disconnects power in the event of an overload and prevents the device from operating, is not tripped. If the switch is white, the breaker has tripped. Contact your GF authorized distributor for further assistance GF614B-INS-LAB-RevC15... -
Page 14: Specifications
SPECIFICATIONS General Specifications for the Grafco Model GF614B Centrifuge: Rotor / Rotor Accessories Rated for a rotation frequency of 3,500 RPM Capable of spinning test tubes up to 17 mm x 125 mm Nominal Speed 125 mm holders 3,150 ( ± 100) RPM Nominal RCF 125 mm holders 1,200 ( ±... -
Page 15: Warranty
The ICC regulations govern specific requirements for freight claims. Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in filing the freight claim. 3) Claims for any short shipment must be made within three (3) days of the invoice date. GF614B-INS-LAB-RevC15... - Page 16 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 telephone: 770-368-4700 fax: 770-368-2386 www.grahamfield.com Made in the USA...
