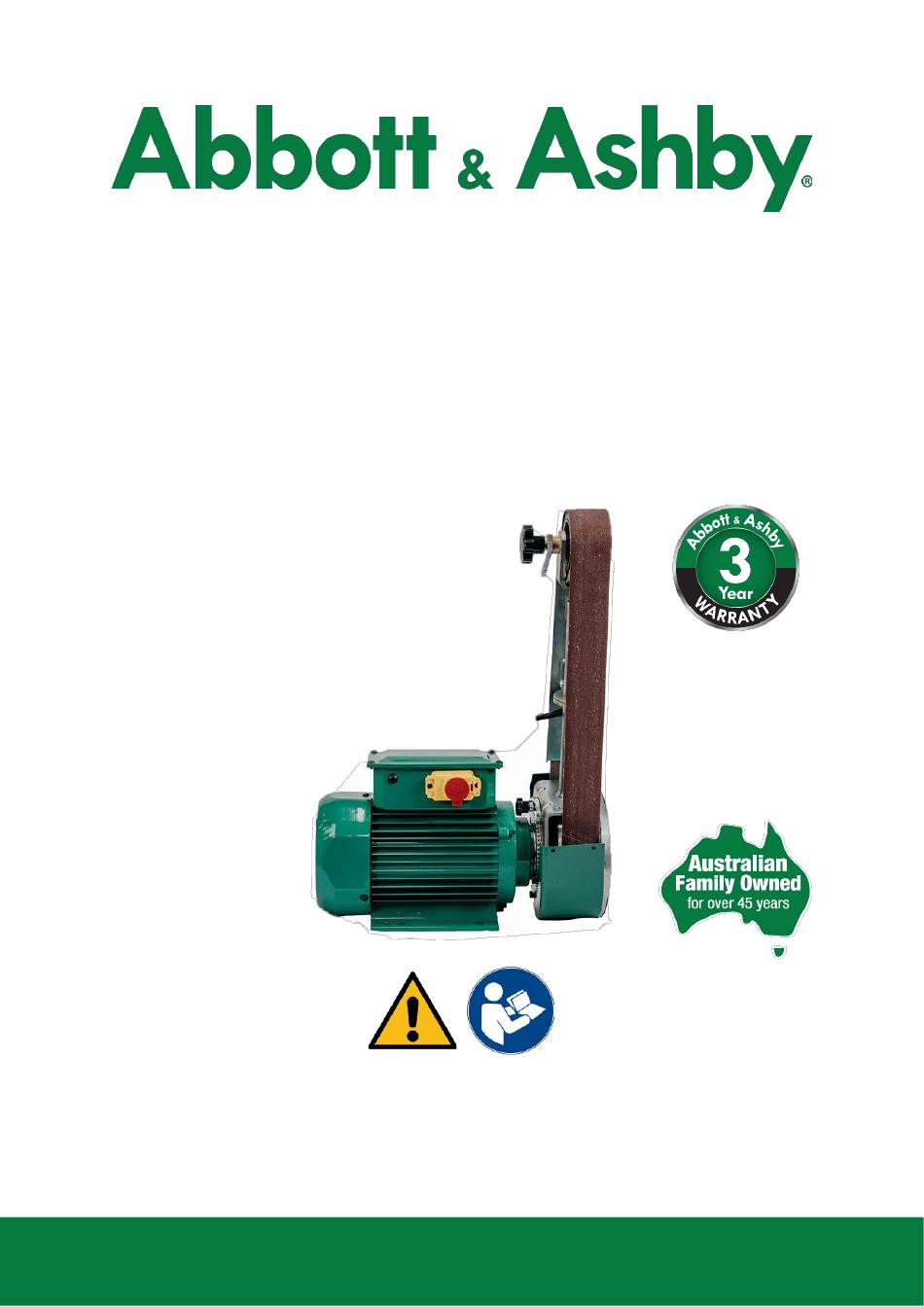

User Manual
2HP Bench-Mounted Belt Grinder with
NVR Switch (1,220 x 50mm Belt)
812146 – ATL1500/482
Protect yourself and others by observing all safety information, warnings and cautions.
Failure to comply with instructions could result in personal injury and/or damage to product
or property.
Please retain instructions for future reference!
Abbott & Ashby 2HP Bench-Mounted Belt Grinder with NVR Switch | User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATL1500/482 and is the answer not in the manual?

Questions and answers

Summary of Contents for Abbot & Ashby ATL1500/482

  • Page 1 2HP Bench-Mounted Belt Grinder with NVR Switch (1,220 x 50mm Belt) 812146 – ATL1500/482 Protect yourself and others by observing all safety information, warnings and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.
  • Page 2: Introduction

    1. Introduction Dear Customer, Thank you for purchasing this Abbott & Ashby product, which has passed through our extensive quality assurance process. Every care has been taken to ensure that it reaches you in perfect condition. 2. Key Features POWERFUL 2HP MOTOR Delivers more torque for effortless material removal and superior performance.
  • Page 3: Table Of Contents

    3. Contents 1. Introduction ......................2 2. Key Features......................2 3. Contents ....................... 3 4. Technical Specifications..................4 5. ISO 7010 Symbols used in this manual .............. 4 6. Warnings ....................... 5 7. Standards and Approvals ..................7 8. Cautions ........................ 8 9.
  • Page 4: Technical Specifications

    4. Technical Specifications Abbott & Ashby ATL1500/482 Part No ATL1500/482 Item Code 812146 Input/Output 1700W/1500W - 2HP Amps Volts 240V - 50Hz (1 Ph) 2850 1,220 x 50mm (48 x 2”) – 240 Grit Belt 178mm (7”) diameter – 120 Grit...
  • Page 5: Warnings

    6. Warnings Read the manual carefully before starting and retain for future reference. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool.
  • Page 6 operating power tools may result in serious personal injury. b. Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c. Avoid accidental starting. Ensure the switch is in the off- position before plugging in.
  • Page 7: Standards And Approvals

    SERVICE Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Any changes or modification to the wiring must be carried out by suitably qualified personnel. A qualified electrician should correctly size and install residual current devices to protect the power supply.
  • Page 8: Cautions

    8. Cautions • Ensure that power tools are disconnected from the mains supply when not in use, before servicing, lubricating or making adjustments and when changing accessories such as belts. • Always use the correct type of belt and disc for the type of operation to be carried out and the material being machined.
  • Page 9: Product Components

    9. Product Components LINISHING ATTACHMENT (AA482) (A) Main bracket (B) Linishing belt (C) Abrasive disc (D) Backing plate (E) 6 x Fasteners for backing plate (F) Linishing guard (G) 3 x cap screws for guard (H) Drive pulley (I) 3 x 6 x 20mm fasteners for main bracket (J) 16mm nut (K) Washer...
  • Page 10 Push against the contact wheel towards the drive pulley to retract the extension arm and place the linishing belt (B) over the main wheel and the contact wheel. Refer to the inside of the belt for the correct installation direction of the belt. Initially, there may be a tightness in the mechanism.
  • Page 11: Operation

    10. Operation CAUTION Always ensure that the machine is switched off and plug is removed from the power point before making any adjustments. BENCH MOUNTING The machine should always be securely fastened to a workbench or pedestal stand before use. Proper mounting improves stability, enhances control of the workpiece, and helps reduce movement, noise, and vibration during operation.
  • Page 12: General Inspection

    Turn the unit on and inspect the movement of the belt. If adjustments are required, move the lever into the loose position (A). To correct any tracking concerns, simply turn the knob (B) to adjust the tracking. Once adjusted, lock the lever gently back into place (C). LINISHER WORKING ANGLE ADJUSTMENT Loosen the bolt (A) out of the locking position and lift latch (B) to disengage the locking teeth (C);...
  • Page 13: Warranties - Terms And Conditions

    11. Warranties – Terms and Conditions Abbott & Ashby 2HP Bench-Mounted Belt Grinder with NVR Switch ATL1500/482 has a 3 Year Limited Product Warranty on motor, electrical switch, device body and guards but not including motor start / run capacitor and provided abrasive belt and disc.
  • Page 14 https://abbottandashby.com.au/ www.whiteint.com.au www.whiteint.co.nz Please always refer to our website for further technical information & new product innovations Disclaimer: Every effort has been made to publish the correct information in this manual. No responsibility will be taken for errors, omissions or changes in product specifications. ©...
