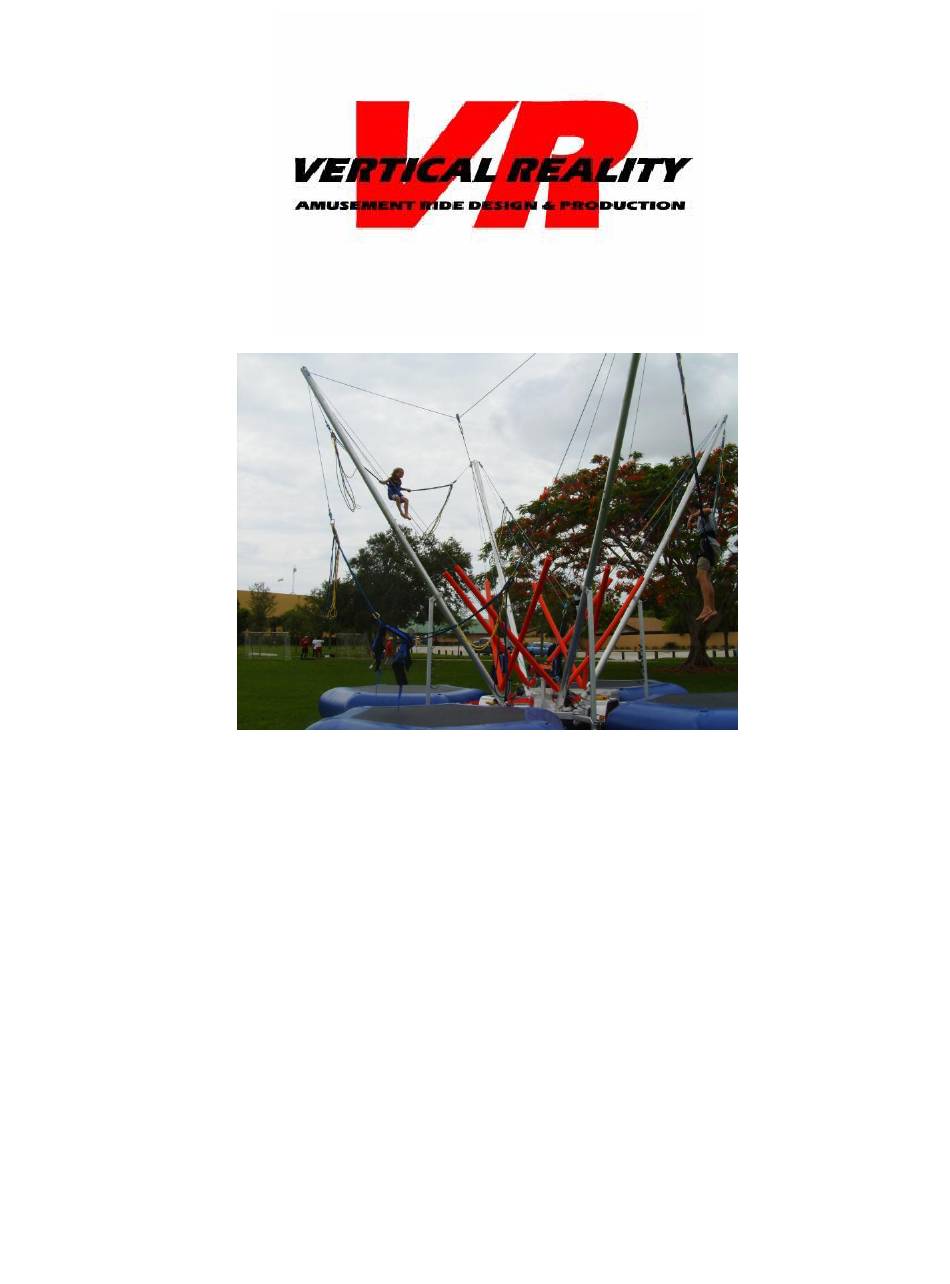

BUNGY TRAMPOLINE SYSTEM
4 WAY MOBILE
EZ TRAIL
REVISION DATE 01/31/11
Maintenance and operation manual
For
Bungee trampoline system Operations
With the
"4 WAY - MOBILE BUNGY TRAMPOLINE SYSTEM"
System and Accessories
Total weight: 1150 lbs
Dynamic weight: 2030 lbs
Address: 6880 North Cartee Rd
Palmetto Bay, Florida 33158
Website: WWW.verticalreality.com
Email: albert@verticalreality.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4 WAY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vertical Reality 4 WAY

Summary of Contents for Vertical Reality 4 WAY

  • Page 1 EZ TRAIL REVISION DATE 01/31/11 Maintenance and operation manual Bungee trampoline system Operations With the “4 WAY - MOBILE BUNGY TRAMPOLINE SYSTEM” System and Accessories Total weight: 1150 lbs Dynamic weight: 2030 lbs Address: 6880 North Cartee Rd Palmetto Bay, Florida 33158 Website: WWW.verticalreality.com...
  • Page 2 Vertical Reality MFG. We are excited about our products and feel confident that through proper planning, placement and hard work, the 4 WAY Mobile trampoline system will be a rewarding and profitable purchase. Our philosophy is centered on a commitment to excellence in meeting the needs of our customers, providing a quality product that is safe, exciting and profitable.
  • Page 3 This manual and the content within this manual are for the exclusive use and operation of the 4 WAY mobile trampoline system by the owner of the 4 WAY mobile trampoline system and its authorized personnel and for Vertical Reality MFG. This manual is designed to provide accurate and authoritative information in regard to the subject matter covered.
  • Page 4 Training Manual. I understand that the information outlined in this manual are subject to change at the sole discretion of Vertical Reality at any time. It is further understood that the owner of the 4 WAY mobile trampoline system has the responsibility to ensure the correct and latest version of the manual is being used.
  • Page 5 The manual is designed to provide the owner with the information, tips, and techniques that will help them operate the 4 WAY mobile trampoline system as effectively and safely as possible. It is no way a total representation of all facts. Safe operation of this unit is the sole responsibility of the owner/operator.
  • Page 6 A: Introduction to the “4 WAY MOBILE” The “4 WAY MOBILE” is a new design system based on the now common Multi Bay Bungee- trampoline system. Vertical Reality has now produced the much needed 4 WAY MOBILE unit. The “4 WAY MOBILE”...
  • Page 7 If used properly, the “4 WAY MOBILE” allows for extraordinarily high jumps with stability and safety. This spectacular fun-sport can be enjoyed by all ages, allowing all skill levels to partake in acrobatic and coordinative motions that build confidence and exercise the body. Due to the special harness and elastic system, possible neck and shoulder landings have virtually been eliminated, giving the “4 WAY MOBILE”...
  • Page 8 600 volts. Flat, grassy fields or asphalt are ideal for the 4 WAY. Do not erect the 4 WAY on a hill or a bumpy ground. When ride is to be used on soil surface an 18 inch square wood board by 2 inches thick must be placed under the support legs.
  • Page 9 Swing out the arm supports and pin them in place, by installing ½ inch diameter pin through hole and securing with r-clip. Swivel the stabilizing jacks to a vertical position and crank them until they are snug and feel tight. (It is not necessary to raise the wheels of the ground!!) .
  • Page 10 Crank the jacks down until they are tight to the ground. Attach the poles to the swivel bases with the 5/8 pins and secure by attacking the r-clips on both ends. Attach all 4 poles. (See pictures on next page) Connection from jumper harness to elastics and static rope One aluminum carabineer is connected to each side of the harness Aluminum carabineer connects to the elastics according the weight scale...
  • Page 11 This aluminum carabineer you attach the one end or the Swivel The other end of the Swivel attaches to the rope. This is repeated for each side of the harness. Repeat for all four stations. (See pictures below) Connections from the aluminum construction to jumper cord. The steel carabineer with swivel pulley on the left attaches to the Eye nut on one side of the pole.
  • Page 12 Remove the r-clips and pin from the support arm before raising the pole. (See picture above) Carefully Raise either of the end poles and walk them toward the receiving cradle, and pin the pole into place using the pins and r-clips you just removed. Repeat for all other poles. (See picture above) Tighten all of the cables until taught with the turnbuckles.
  • Page 13 Install winches on trailer and secure with the pins and r-clips supplied. (1/2 by 4 inch clevis pins) Attach the harness to the loops or power cords. Plug in the unit, and test the smooth operation of the winch, making sure that the ropes are not tangled. (See picture below) We can now begin to inflate the four trampolines by using the supplied 110 volt blower.
  • Page 14 D: Operator & Owner Guidelines. Number of Operators Required One operator per in use jump station is required at all times. The Winch The winch is the mechanism that allows for the raising and lowering of the jumper. Do not use the winch if it is raining or lightning.

  • Page 15: Power Cords

    LOOPS and POWERCORDS LOOPS The elastics are the fundamental element of the 4 WAY, which uses a combination of thin and thick elastic LOOPS. The elastics, in conjunction with the harness, connect the jumper to the frame of the 4 WAY and it is the elastics system that allows the jumper to reach such incredible heights while simultaneously providing the stability for acrobatic movement.
  • Page 16 4 WAY. Failure to do so will result in the negation of your warranty and create an unsafe situation. Be sure to store the elastics in a dry place. Should the elastics get wet, dry them completely before using them again. If you have any questions or concerns about the installation of the elastics, contact VERTICAL REALITY FOR SERVICE.
  • Page 17 Section in the Training Manual. The Harnesses The harness is the actual link between the jumper and the 4 WAY, as it straps the jumper to the elastics system. To safely utilize the 4 WAY, both the jumper and the instructor need to fully understand proper harness fitting, adjusting, and positioning techniques.
  • Page 18 - Tighten the strap around the leg and check the jumpers’ comfort. If the jumper does not fit in any of the harnesses, do not use 4 WAY!! The harness should fit the jumper tightly, but not so tightly that it is uncomfortable. The harness straps should rest comfortably at the top of the thighs and around the buttocks.

  • Page 19: Helpful Hints

    The instructor should not allow any horse-play on the trampolines. The trampoline system is half of the fun in using the 4 WAY but the jumper needs to be very careful on it as well. This means that the instructor needs to always be aware of the jumper and his/her placement on the trampoline.

  • Page 20: Weather Considerations

    The instructor/operator plays an integral role in the success of the jumper while on the 4 WAY. He or she has a tremendous responsibility to maintain the jumper’s safety at all times, while giving support and advice to aide in the jumper’s movements.
  • Page 21 VERTICAL REALITY Be sure that the proper amount of space is given for the construction of the 4 WAY -- 27 feet X 27 feet X 24 feet (height). It is best to allow an additional 3 feet of height for extra safety coverage. In addition, be sure to erect the 4 WAY on a relatively flat ground.
  • Page 22 Only replace old Bungee trampoline system parts with new Bungee trampoline system parts. Do not use any other elastic, cable, or harness system on the 4 WAY. The use of unsafe materials will void your warranty and result in an unsafe situation. Never allow horse-play around the 4 WAY.
  • Page 23 D. Safe Usage & Warnings To Be Posted Before riding please read and follow these rules! The 4 Way mobile trampoline system is a physically demanding high active sport activity. Attention all guests: Read Important Safety Information and follow the Instructions of the Attendants at all times.
  • Page 24 Documentation Mechanical Inspection: The safety check needs to be performed and the corresponding daily safety check sheet filled out as mentioned above before every day of operation. These sheets then need to be kept on file on site for random audits by Officials or Bungee trampoline system/ Vertical representatives at all times.
  • Page 25 It is the responsibility of the owner and/or operator of this product to contact Vertical Reality MFG. if any questions or concerns arise. As with any amusement device, physical harm can occur and operators and participants must realize that this product is a physical activity and that proper care should be taken to ensure safety.
  • Page 26 Was the person intoxicated or under the influence of alcohol or drugs Were Vertical Reality's safety rules posted? Was your staff properly trained in the operation of the BUNGY TRAMPOLINE SYSTEM? Was the BUNGY TRAMPOLINE SYSTEM shut down for inspection after the accident occurred?
  • Page 27 APPENDIX A The 4-way EZ trail can be operated as a two station TWO STATION REQUIREMENTS:  All four aluminum poles, eight safety cables and four Jacks must be installed exactly like the 4-way set-up listed in the manual.  We recommend you use the stations directly across from each other. : .
  • Page 28 Action To Be Taken: Add attached procedure to the end of all current manuals Detail of issue: Vertical Reality wants to detail the correct emergency release of a patron due to power or winch failure. Proper procedure is attached with bulletin.
  • Page 29 YOU BEGIN !  You will need to have either a 3/8 drive ratchet, a cordless drill with a 3/8 drive or an adjustable wrench in addition to the Vertical Reality supplied angled screw driver and shaft tool.  Begin by removing the fan cover screws on the rear of the winch using the Vertical Reality MFG, INC supplied angled screw driver.
  • Page 30  Slide the supplied Vertical Reality shaft tool over the winch shaft. The tool is flat on one side just like the shaft and has a 3/8 drive adaptor on the opposite end. Connect your drive tool of choice and begin to turn in the direction that lowers the participant.
