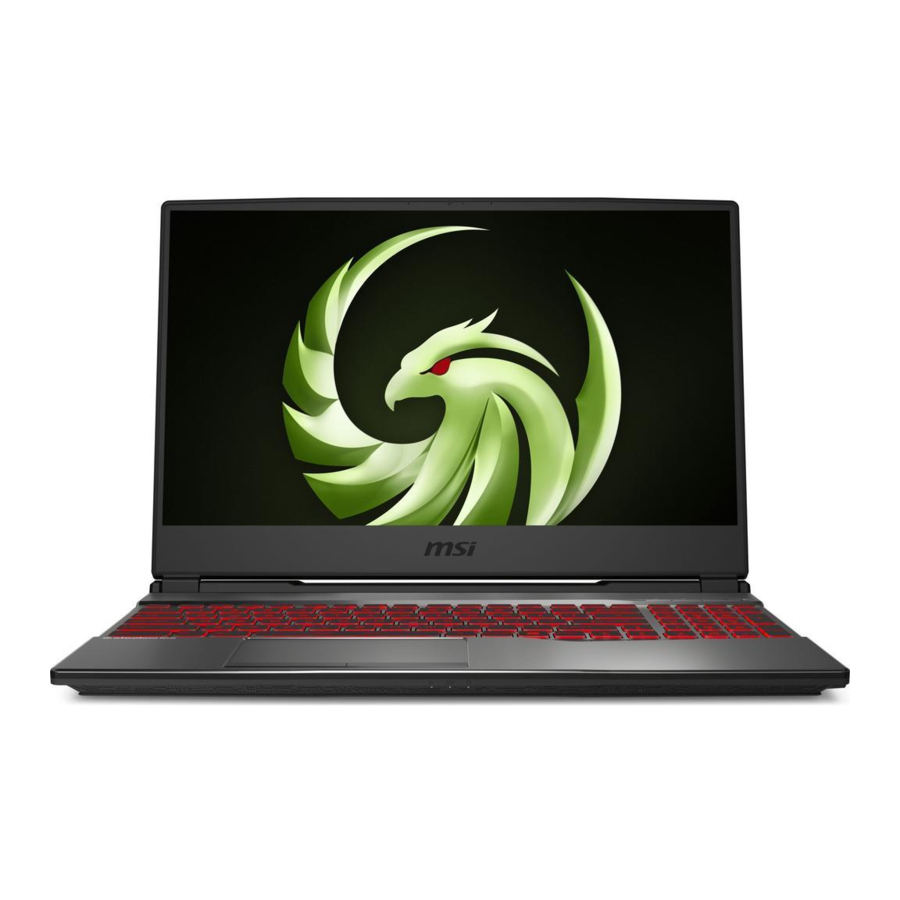

MSI Alpha 15, A3DDK-071XPT Manual

MSI Highlights

Explore more exclusive features of MSI notebooks for all series, please visit: http://www.msi.com and https://www.youtube.com/user/MSI

How to use SteelSeries Engine 3 on MSI notebooks
MSI collaborates with SteelSeries to develop an exclusive SteelSeries Engine 3 in gaming notebooks. SteelSeries Engine 3 is the Apps to combine frequently used functions for gamers in multiple devices management.

Sound by Dynaudio on MSI Gaming Notebooks
MSI partners with Dynaudio, the Danish sound specialists, in its gaming notebooks to present you an authentic fidelity audio performance.

Color Your Life with True Color
MSI has partnered with Portrait Displays, Inc. in developing more accurate, high precision panel quality. MSI True Color Technology guarantees that each panel in a MSI notebook comes with the finest precision in color.

Tutorial: How to use Nahimic
Discover how to use Nahimic and its three features: Nahimic Audio Effects, Microphone Effects and HD Audio recorder.

Introductions

Congratulations on becoming an user of this notebook, the finely designed notebook. You will have a delightful and professional experience in using this exquisite notebook. We are proud to tell users that this notebook is thoroughly tested and certified by our reputation for unsurpassed dependability and customer satisfaction.

Unpacking

First, unpack the shipping carton and check all items carefully. If any item contained is damaged or missing, please contact your local dealer immediately. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:

• Notebook
• Quick Start Guide
• AC/DC adapter and AC power cord
• Optional carry bag

Product Overview

This section provides the description of basic aspects of the notebook. It will help you to know more about the appearance of this notebook before using it. Please be aware that the figures shown here are for reference only.

Top-open View

The figure of top-open view and description shown below will lead you to browse the main operating area of your notebook.

1. Power Button / Power LED/ GPU Mode LED
   Power Button


• Press this key to turn the notebook power ON.
• While the notebook is turned on, quick press this key to force the computer into sleep state. Press again to wake up the system from sleep state.
• Long press this key to reset the notebook if needed.

Power LED/ GPU Mode LED

• Glowing white when the notebook power is turned on, and the UMA GPU mode is selected.
• Glowing amber when the optionally supported discrete GPU mode is selected.
• LED flashes when the notebook goes to the sleep state.
• LED goes off when the notebook is turned off.

2. Quick Launch Buttons

Use the quick launch buttons to activate the specific applications or tools. The following quick launch buttons will only be functioning in the operating system with the necessary applications installed.

• This notebook may be pre-installed a unique keyboard manager application, SSE (SteelSeries Engine). With this application, users will be able to own several combinations of keyboard hot keys defined separately for specific occasions.

• SSE function is only available on the notebook with per-key RGB illuminated keyboard.
• Use this button to bring up the SSE profile.

• This notebook may be pre-installed with a gaming utility, Dragon Center, providing users an astonished and efficient solution in game playing.

• Use this button to bring up the Dragon Center application.

• Use this button to maximize the fan speed to cool down the overall temperature of the notebook.

3. Keyboard
   The built-in keyboard provides all the functions of a notebook keyboard. Refer to How to Use the Keyboard for details.
4. Touchpad
   This is the pointing device of the notebook.
5. Status LED
   Caps Lock

   Glows when the Caps Lock function is activated.
6. Webcam/ Webcam LED/ Internal Microphone
   • This built-in webcam can be used for picture taking, video recording or conferencing, and so on.
   • Webcam LED indicator, next to the webcam, blinks when webcam function is activated; LED goes out when this function is turned off.
   • The built-in microphone shares the same function with an external one.

Front Side View

1. Stereo Speakers
   This notebook may be equipped with built-in stereo speakers which deliver the high quality sound, and supports the HD audio technology.
2. Status LED

   Wireless LAN (WiFi)

   • LED glows when WLAN (WiFi) function is enabled.
   • LED goes out when this function is disabled.

     Battery Status

   • LED glows when the battery is being charged.
   • LED turns amber while the battery is in low capacity status.
   • Continuously blinking if the battery fails. If the problem persists, please contact your local authorized retailer or service center.
   • Battery LED goes out when the battery is fully charged or when the AC/DC adapter is disconnected.

     Drive Activity Indicator

     LED blinks when the system is accessing the internal storage drives.

Right Side View

1. USB 3.2 Gen 1 Port
   USB 3.2 Gen 1, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
2. Power Connector
   This connector is to connect the AC/DC adapter and supply power for the notebook. Refer to "Begin to Use the Notebook" for details.
3. Card Reader
   The built-in card reader supports various types of memory cards. Check the Specifications for details.
4. Ventilator
   The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

Left Side View

1. Kensington Lock
   This notebook provides a Kensington lock hole, which allows users to secure the notebook in place.
2. RJ-45 Connector
   The Ethernet connector, with optionally supported transmitting rate of 10/100/1000 megabits per second, is used to connect a LAN cable for network connection.
3. Mini-DisplayPort
   The Mini-DisplayPort is a miniaturized version of the DisplayPort, with a suitable adapter, the Mini-DisplayPort may be used to drive displays with a VGA, DVI or HDMI interface.
4. USB 3.2 Gen 1 Port (Type C)
   USB 3.2 Gen 1, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
   The slim and sleek USB Type C connector features reversible plug orientation and cable direction and supports 5V/3A portable charging power when AC power is connected. However, the maximum portable charging power limitation may up to 5V/1.5A while battery DC power is connected.
5. Ventilator
   The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.
6. HDMI Connector
   HDMI (High-Definition Multimedia Interface) technology is the industry-leading interface and de-facto standard connecting high-definition (HD) and ultra highdefinition (UHD) equipment.
7. USB 3.2 Gen 1 Port
   USB 3.2 Gen 1, the SuperSpeed USB, delivers the higher interface speeds for connecting various devices, such as storage devices, hard drives, or video cameras, and offers more advantages over high-speed data transferring.
8. Audio Ports

   Microphone

   Used for an external microphone.

   Headphone out/ S/PDIF-out

   • A port for speakers or headphones.
   • Connect the Front speakers here.
   • The S/PDIF port is also provided for digital audio transmission to external speakers through an optical fiber cable.

Rear Side View

1. Ventilator
   The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

Bottom Side View

1. Ventilator
   The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.
2. Stereo Speakers
   This notebook may be equipped with built-in stereo speakers which deliver the high quality sound, and supports the HD audio technology.
3. Battery Reset Hole
   Whenever the system firmware (EC) is upgraded or the system hangs, please
   1. power off the notebook;
   2. remove the AC power;
   3. use a straightened paperclip and insert it to this hole for 10 secs;
   4. connect the AC power;
   5. power on the notebook.
4. SSD Slot 1
   This notebook is equipped with a SSD M.2 slot that supports the SSD device with PCIe or SATA interface. Contact the authorized dealer or service center for product service.

How to Use the Keyboard

This notebook provides a full functioned keyboard. To ensure that the keyboard will be functioning properly, it is a must to install the necessary applications before using the keyboard function keys.

Use the FN keys on the keyboard to activate the specific applications or tools. With the help of these keys, users will be able to work more efficiently.

Windows Key

You can find the Windows Logo key on the keyboard which is used to perform Windows-specific functions, such as opening the Start menu and launching the shortcut menu.

Quick Launch Keys

• This notebook may be pre-installing with a gaming utility, Dragon Center, providing users an astonished and efficient solution in game playing.
• Press both FN and F4 keys to launch Dragon Center application.

• Press FN and F5 keys to switch to Super Battery mode, the power saving mode provided by Dragon Center.

• Press FN and F6 keys to turn the Webcam function on. Press again to turn it off.
• Webcam is turned off under default settings.

• Press FN and F7 keys repeatedly to switch between Extreme Performance/ Balanced/ Silent/ Super Battery/ User according to your preference, the User Scenarios provided by Dragon Center.
• Refer to the Notebook Software Application Manual for further details.

• Press FN and F10 keys repeatedly to turn Airplane Mode on or off recurrently.

Disable or Enable Touchpad

Enable or disable the touchpad function.

Enter Sleep Mode

Force the computer into sleep state (depending on the system configuration). Press the Power button to wake up the system from sleep state.

Switch Display

Switch the display output mode between the LCD, external monitor and both.

Use Multiple Monitors

If users connect an additional monitor to the notebook, the system will automatically detect the external monitor connected. Users will be allowed to customize the display settings.

• Connect the monitor to the notebook.
• Press and hold the Windows key, and then press [P] key to bring up [Project].
• Select how you want your display to project on the second screen from the selections of PC screen only, Duplicate, Extend, and Second screen only.

Adjust the Brightness Level of the Display

Increase the LCD brightness.

Decrease the LCD brightness.

Adjust the Sound Level of the Speaker

Increase the built-in speaker's volume.

Decrease the built-in speaker's volume.

Mute the built-in speakers.

Adjust the Brightness Level of the Keyboard Backlight LED (optional)

Increase the brightness level of the keyboard backlight LEDs.

Decrease the brightness level of the keyboard backlight LEDs.

Application: True Color (optional)

This notebook may be pre-installed the True Color application. With this application, users can select various color settings for the best viewing experience.

• Press and hold the FN key, and then press the Z key to launch the True Color application.

• Press and hold the FN key, and then press the A key to change different view modes.

Video: How to Use [Fn] Buttons

Watch the instruction video at: https://www.youtube.com/watch?v=u2EGE1rzfrQ

YouTube

Youku

Specifications

The specifications listed here is reference only, and may change without notice. The actual products sold are different from areas.

Visit MSI official website at www.msi.com, or contact the local retailers to learn the correct specifications of the product user purchased.

Physical Characteristic
Dimension	357.7 (W) x 248 (D) x 26.9 (H) mm
Weight	2.34 kg
CPU
Package	FP5
Mobile Processor	The latest AMD ® Ryzen TM Processor Family
Memory
Technology	DDR4, 2400
Memory	2 x SO-DIMM slots
Maximum	Up to 32GB
Power
AC/DC Adapter	1 x 180W, 19.5V Input: 100-240V~, 50/60Hz Output: 19.5V , 9.23A
Battery	6-cell
RTC Battery	Yes
Storage
HDD	1 x SATA interface for 2.5" HDD device
SSD	1 x M.2 slot, supports PCIe or SATA SSD device
I/O Port
USB	3 x USB 3.2 Gen 1 1 x USB 3.2 Gen 1 Type C
Audio	1 x Mic-in 1 x Headphone-out (S/PDIF-Out supported)
Video	1 x HDMI 1 x Mini-DisplayPort
LAN	1 x RJ-45
Card Reader	1 x SD3.0/ SD/ MMC
Communication Port
LAN	Supported
Wireless LAN	Supported
Bluetooth	Supported
Display
LCD Type	15.6" FHD LED panel
Video
Graphics	Supports discrete and UMA graphics
VRAM	GDDR6, based on GPU structure
Webcam
Resolution	HD
Audio
Internal Speakers	2 x stereo speakers
Security
Trusted Platform Module (optional)	TPM 2.0 is a hardware-based encryption device that collaborates with software measures to form a more advanced and secure data protection. TPM functionalities can be de/activated in BIOS settings where appropriate. With professional versions of Windows, BitLocker is the default console available for TPM communications serving data encryption purposes.

Safety Instructions

Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or user's manual should be noted.

• Replacement of a battery with an incorrect type that can defeat a safeguard.
• Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

• Plug the power cord into an AC outlet that is easily accessible at all times.
• Disconnect power from the notebook by unplugging the power cord from the AC outlet.
• If a power cord with 3-prong plug came with the package, always plug the power cord into a grounded (earthed) AC outlet. Do not remove the grounding pin of the power cord, since it is an important safety feature.
• Always use the AC/DC adapter and power cord approved by MSI, or a compatible one purchased from MSI.
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on top of the power cord.

• Always place the notebook on a stable, flat, hard surface before setting it up.
• Do not lay the notebook on an unstable surface while using it, such as your lap, bed, pillow, or sofa, etc...
• Do not cover the ventilators of the notebook to prevent the notebook from overheating.

Do not ingest battery. If the coin / button cell battery is swallowed, it can cause severe internal burns and can lead to death. Keep new and used batteries away from children.

Keep the notebook away from humidity and high temperature.

Always keep the strong magnetic or electrical objects away from the notebook.

• Do not leave the notebook in an unconditioned environment with a storage temperature above 60ºC (140ºF) or below 0ºC (32ºF), which may damage the notebook.
• This notebook should be operated under maximum ambient temperature of 35ºC (95ºF).

• Never pour liquid into the opening that could damage the equipment or cause an electrical shock.
• Never use any chemical substance to wipe the surface of this equipment, such as keyboard, touchpad, and notebook case.

If any of the following situations arises, get the equipment checked by a service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment has not worked well or you can not get it work according to User's Manual.
• The equipment was dropped and damaged.
• The equipment has obvious signs of breakage.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy
