The AGDS-V-evo is a multi channel gas detection system which can monitor six low voltage detectors directly
and up to 16 total with an additional power pack.
There is an optional additional relay panel which can be connected if required.
In the event of a high level alarm from one of the detectors, the system will sound its internal toner, trigger
external indications (setting dependant) and isolate a connected gas control valve.
Low alarm indications are also given.
Even with the system switch off, It can still be used to monitor for carbon monoxide and carbon dioxide via its
0-10v output and BMS relays. Should there be an issue from a solid fuel appliance it can raise an alarm or
switch ventilation on via a relay.
Before commencing installation please familiarise yourself to the equipment by reading the comprehensive
installation instructions. If in doubt then please call 0161 233 0600.
It is a statutory requirement that this safety system is installed and commissioned
A commissioning certificate must be issued to the end user along with instructions for the operation of the
equipment.
As the Manufacturer, Medem UK should commission this safety system whereupon a commissioning report
will be forwarded to the installing agent who should provide a copy to the end user.
At the point of our commissioning an individual serial number will be attached to the system along with a 24
hour help line number. Photos and all relevant information for the installation will then be stored on the
Medem site database to be accessed in the event of a call on the 24 hour help line. The warranty period for
the panel and sender unit will then be extended to Ten years.

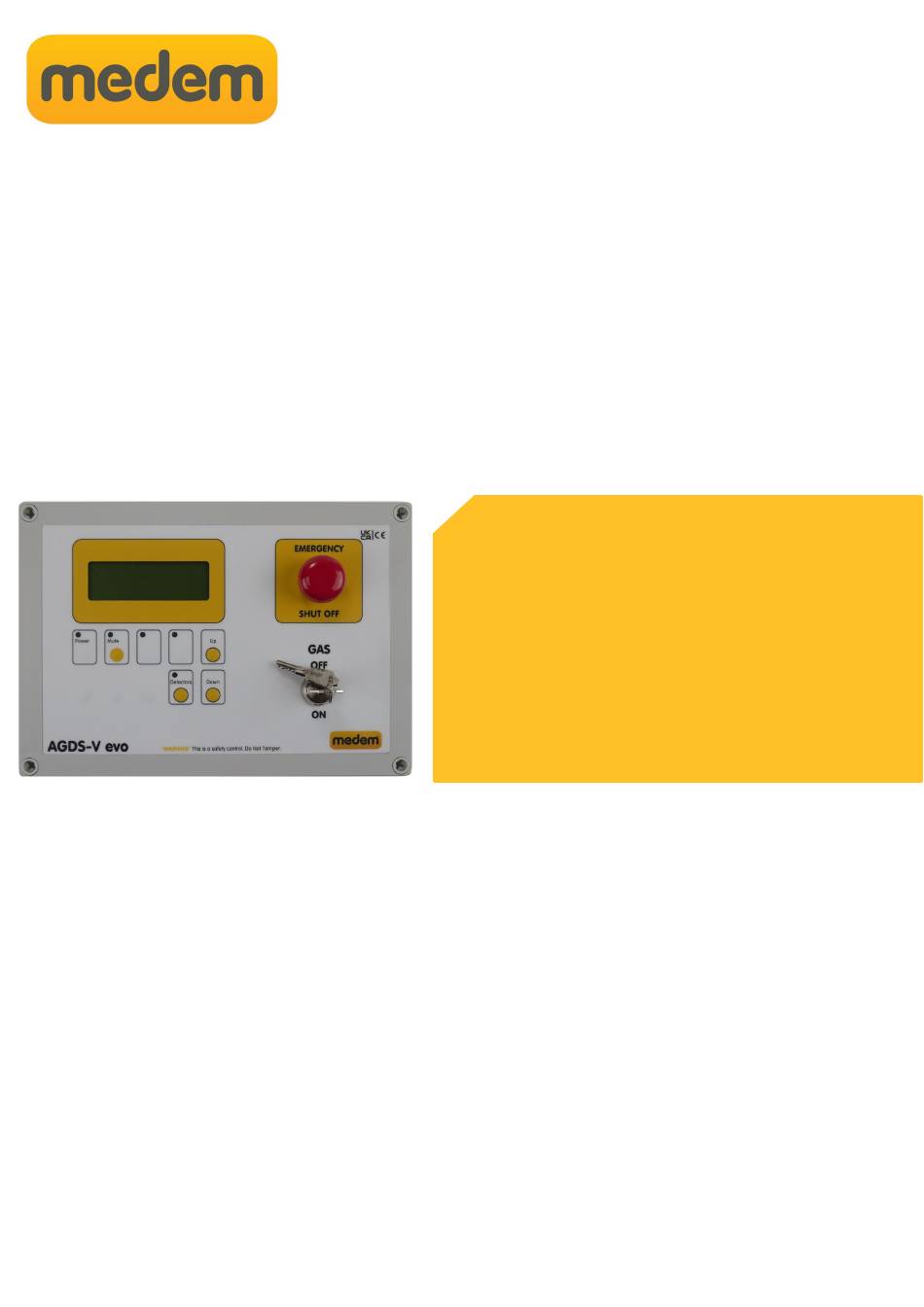

AGDS-V-evo
Installation Instructions
to the satisfaction of the manufacturer.
Gas Detection . (Up to 16 detectors, with power pack)
·
Remote emergency stops
·
Fire Alarm input monitoring
·
Multiple BMS relays (Settable)
·
5 year warranty - 10 years when commissioned
·
AGDS-V-evo features
Advertisement
Table of Contents
Related Manuals for Medem AGDS-V-evo
Summary of Contents for Medem AGDS-V-evo
- Page 1 Photos and all relevant information for the installation will then be stored on the Medem site database to be accessed in the event of a call on the 24 hour help line. The warranty period for...
-
Page 2: System Description
There is the option to connect up to two, 4-20mA devices to the system, these can have independent pre and high level alerts set. These will form part of the 16 potential detectors the system can comprise of. The detectors are pre-calibrated by Medem (UK) Ltd such that they only require to be connected to the panel and functionally tested. -
Page 3: Main Features
AGDS-V-evo Main features Optional SELV BMS Relays Connections to panel: marked on board Earth connection terminals. Live & Neutral 230 volts supply from 3amp switched fuse spur. 230 volts out to gas solenoid valve. Mains rated BMS relay set using switch Remote emergency stop and thermal links, SELV, connect in series multiple buttons (requires a N/C circuit). -
Page 4: Relay Settings
There are various option switches available on the system for accommodating some of the more common situations. There always needs to be careful consideration to risk when changing any of the default settings, Medem (UK) Ltd would always recommend an onsite risk assessment be carried out before any changes are implemented. -
Page 5: Option Switches
Option Switches 4-20 mA Devices - description and menu access The AGDS-V-evo can have a maximum of two 4-20mA devices connected, the wiring connections are made to terminals (see page 3). These terminals, if to be used require enabling using switches (see page 3) and once enabled these devices will be registered on detector addresses 15 &... -
Page 6: Basic Connections
AGDS-evo Schematic Basic connections Earth Connections not shown Optional SELV BMS Relays Fire alarm connection Requires a N/C contact in the fire Addition Relay panel panel 4-20mA devices Enable using (15) Addressable 4 wire 230v Supply AUX 1, 2 & 3 Gas detectors Mains Rated 3Amp Fused Spur... - Page 7 AGDS-evo Optional Relay Panel Earth Connections not shown Relay Panel Basic connections Nominal 18-26 v supply SELV Rated 400mA Max Potential free contact, Max load 5amp’s Comms to main 230v Supply panel 3Amp Fused Spur Relay Panel Settings Detector Switch Detector Switch Address...
- Page 8 Use terminals TB2 A & C Use terminals TB2 A & C The stop buttons supplied by Medem are of a “Push Glass, key resettable” style, when activated a yellow indicator bar will show and the unit will require resetting using the key provided.
-
Page 9: Gas Detection
Ensure that the protective cover labels (RED) are removed only after the completion of all building work and the system has been commissioned by the Medem engineer. The labels are required to be removed for the detectors to operate, but removal before the completion of works risks contaminating the sensor element. - Page 10 After installation a simple bump test can be performed by using an appropriate level test gas in order to check operation. Full testing and calibration checking takes place during a Medem commissioning. Detector location will vary dependant on the individual characteristics of the target gas that is being monitored for.
- Page 11 LED will turn red and the panel will alarm and close the valve. Notes. It is recommended that all systems are commissioned after installation by Medem UK. This will extend the warranty period from 5 years to 10 years and ensure the system is working as designed.
-
Page 12: Warranty
Where a warranty claim is made then, where appropriate, a written order to attend site must be provided to Medem UK a cost for labour and travel to site will be prepared as a quote. The cost must be included in the order.
