Summary of Contents for XAG WCP1
- Page 1 XAG WCP1 Wireless Control Panel User Manual Version 1.1...
- Page 2 To User Dear user, thank you for choosing XAG's product. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: Table Of Contents
Contents Safety Guidelines Screen Introduction Operation Operation Adjustment List of Items Operation Main Components Specifications Before Use Disclaimer Charge Warning Install Control Panel Diagram How to Use Power On/Off Pair with APC2 Firmware Update... -
Page 4: Safety Guidelines
Safety Guidelines ・ The operator should hold a driver's license for operating agricultural machinery and strictly observe local laws and regulations on driving farm vehicles. ・ It is mandatory to complete the operator training before using this product. Unauthorized operation is not allowed until training is completed. ・... -
Page 5: List Of Items
Introduction The XAG WCP1 Wireless Control Panel (hereinafter referred to as the "control panel") serves as the controller of the XAG APC2 AutoPilot Console. Together with the APC2, it delivers app-free control of the vehicle, reducing driver fatigue and enabling driving assistance. -
Page 6: Main Components

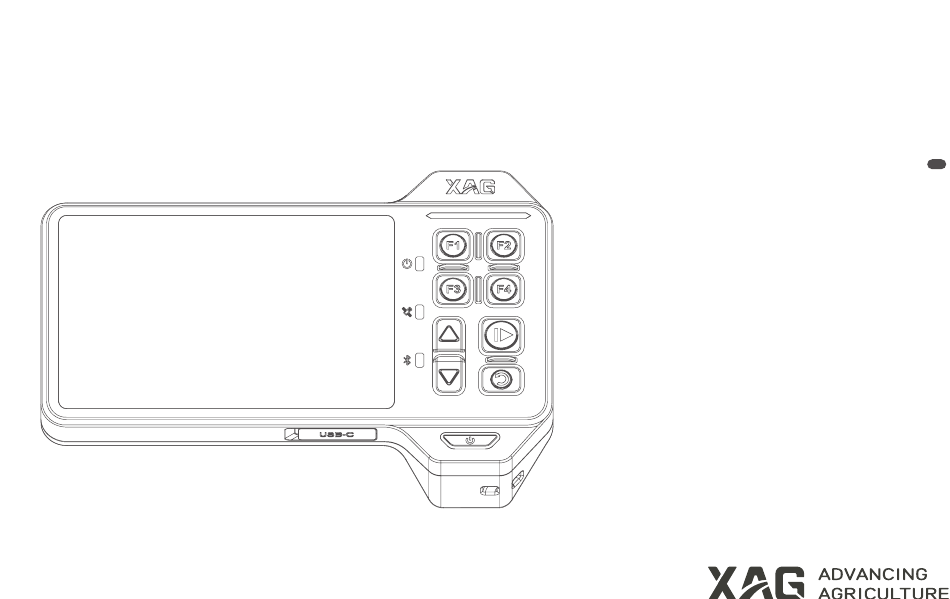

Main Components Shortcut 2 Indicator Shortcut 1 Shortcut 3 Shortcut 4 Confirm Back Down Screen Type-C Port Power www.xa.com/en... -
Page 7: Before Use
Before Use Charge Plug the Type-C end into the charging port on the control panel and the USB end into the charger to charge the device. A solid green light indicates that charging is complete. Note Charging cable and power adapter are not included in the list of items, users need to buy them by themselves. www.xa.com/en... -
Page 8: Install Control Panel
Install Control Panel Steps: Attach the control panel bracket to the vehicle's spindle with U-bolts and nuts, then secure the control panel with M5*12 screws. Note The bracket that works with the control panel needs to be bought separately. [1]: The list of items does not come with the bracket. The one shown in the user manual is for reference only. Please refer to the actual item when installing. www.xa.com/en... -
Page 9: Diagram
Diagram www.xa.com/en... -
Page 10: How To Use
How to Use Power On/Off Power On: Press and hold the power button for 2 seconds, then release it. All indicators will blink simultaneously, and the screen will light up, indicating successful power-on. Once the blinking stops and the power indicator remains solid, it signifies that the initialization is complete and the control panel is ready for use. -
Page 11: Safety Guidelines 1 App Screen
App Screen Home Screen (Main Screen) Settings Highlight AB Line Curve Settings: Select and go to the Settings screen. Highlight: Currently selected option. AB Line: Select to start AB Line Operation. The SN of the connected console. Curve: Select to start Curve Operation. www.xa.com/en... - Page 12 Operation Settings Screen On the "Home Screen", select "Settings" to go to Operation Settings screen. Advanced Parameters Firmware Update Shortcut Settings About Shortcut Settings: Select to preset shortcut functions Advanced Parameters: Select to set transmission for F1~F4 such as spacing calibration, ratio, corner delay factor, translating route, turning left, turning transmission factor, and other...
- Page 13 Operation Planning Screen On the "Home Screen", select operation type, complete route planning, and go to Operation Planning screen. Operation Type Start Operation Operation Route Breadth & Spacing Parameters Operation Type: Current operation type Start Operation: Select to start operation Operation Route: Current operation route Parameters:...
- Page 14 Manual Operation Screen During operation, select "Disengage" on the control panel to go to Manual Operation screen. Operation Area Real-time Offset Direction Speed Real-time Offset Value Settings End Operation Engage Autopilot Route No. Operation Area: Current operation area Real- time Offs et Direction: Show real-time offset Speed: Current vehicle’s speed...
-
Page 15: Introduction 2 Operation
Operation AB Line Operation 1. Turn on the control panel and select "AB Line". 2. Select "New AB Line" (or select an operation route in the "Straight Route List"). Drive the vehicle to the starting point of the operation route, and select "Point A"... -
Page 16: List Of Items 2 Operation Adjustment
Operation Adjustment Breadth/Spacing During operation, select "Settings" - "Implement Parameters" on Manual Operation screen to modify "Breadth/Spacing" if needed. 1. Select "Disengage" on the Operation screen and park the vehicle. Then select "Settings" - "Implement Parameters" on the Manual Operation screen. 2. -
Page 17: Specifications
Screen Brightness ≥ 700 nit Communication Bluetooth Max. Signal Range (No Interference/Obstruction) 5~10 m Operating Ambient Temperature -20℃ ~ 60℃ Storage Ambient Temperature -20℃ ~ 60℃ (within a month) Product Executive Standard Q/JF 038-2023 Compatible with XAG APC2 AutoPilot Console www.xa.com/en... -
Page 18: Disclaimer
9. To the maximum extent permitted by law, XAG shall not be liable for any losses caused by user's improper operation. In addition, XAG shall not be liable for any indirect, consequential, punitive, accidental, special, or exemplary damages, including any loss incurred as a result of your purchase, use, or inability to use the product (even if you have been advised of the possibility of such loss). -
Page 19: Warning
Disclaimer is necessarily invalid. 13. To the extent permitted by law, XAG reserves the right for the final interpretation and revision of the terms and conditions stated herein. XAG also has the right to update, modify, or terminate these terms and conditions via its official website, User Manual, online app, etc., without prior notice. - Page 20 FCC/ISED Compliance Notice Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are de- signed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
- Page 21 Warning: Operation of this equipment in a residential environment could cause radio interference. “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [XAG WCP1 Wireless Control Panel] in compliance with the essential requirements and other relevant provisions of 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.xa.com/en/service/downloads ”...
- Page 22 This User Manual is subject to update without prior notice. ©Guangzhou Xaircraft Technology Co., Ltd. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology Co., Ltd. and is protected by copyright law.
