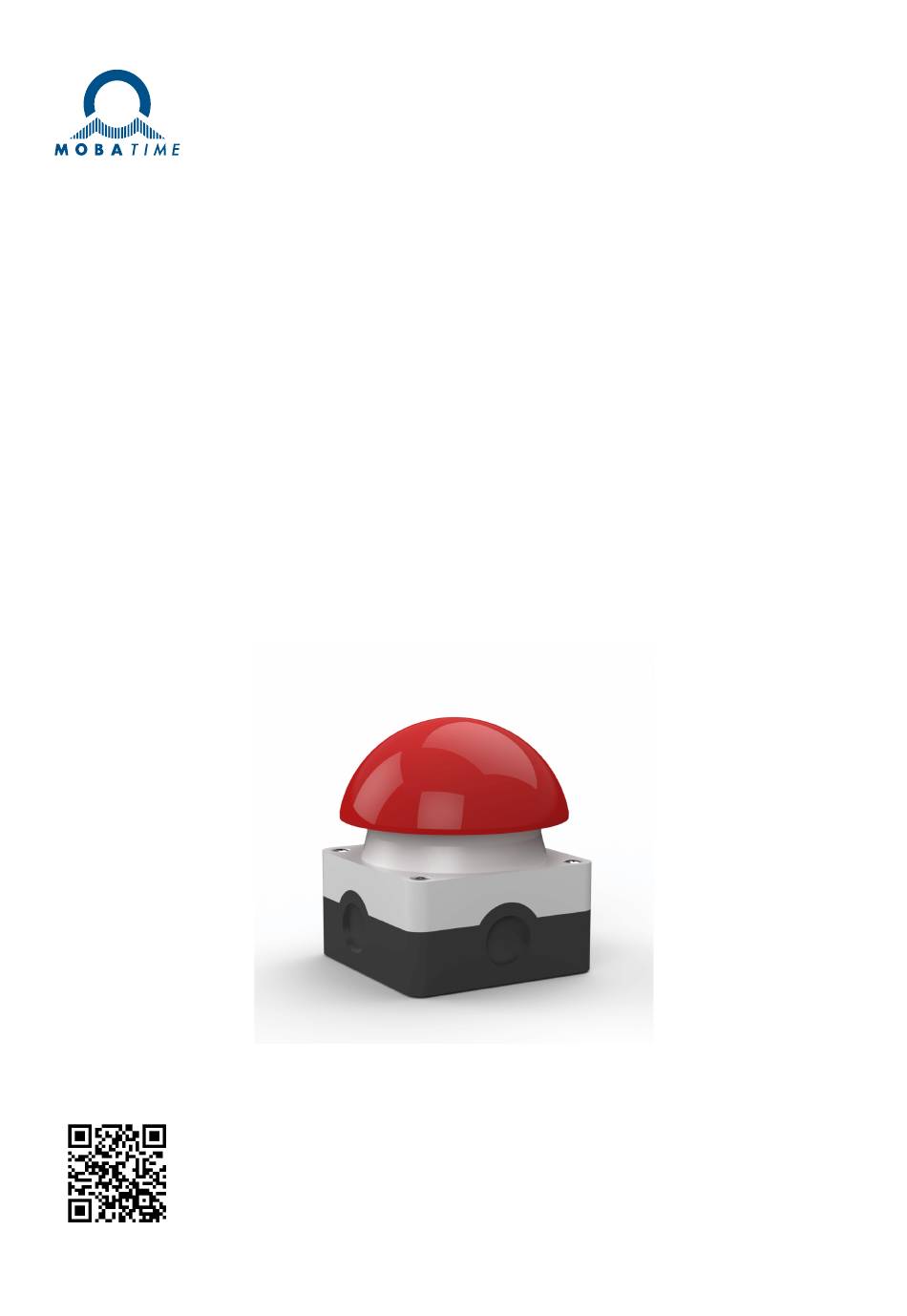

- Page 1 User Manual BRB10 Large Button for Stopwatch Control Scan the QR code or enter following URL to get the latest version: https://docs.mobatime.cloud/BRB10 BE-801424.1-BRB10 | 2025-04-25...
-
Page 3: Important Notes
The information in this document is subject to change without notice. The latest version of this document is available for download at https://docs.mobatime.cloud/BRB10 . This User Manual has been composed with the utmost care to explain all the details to ensure a safe and stable operation of this product. -
Page 4: Table Of Contents
Table of Contents 1. Safety ........ -
Page 5: Safety
BRB10 – Large Button for Stopwatch Control | User Manual Safety 1 Safety Read the safety instructions carefully and follow all the instructions. This ensures safe and reliable operation of this device. 1.1. Instructions and Symbols Symbols used throughout this document and their meaning are as follows: A note or important information. -
Page 6: Installation
Safety BRB10 – Large Button for Stopwatch Control | User Manual Never open the housing of this product, for it poses mortal danger from electric shock or may even cause a fire. Keep packaging such as plastic films away from children. There is the risk of suffocation of misused. -
Page 7: Maintenance And Cleaning
BRB10 – Large Button for Stopwatch Control | User Manual Safety 1.5. Maintenance and Cleaning • If the product and/or the connecting cable is damaged, do not touch it: there is mortal danger from electric shock! First, turn off the power supply to all poles of the product. -
Page 8: Introduction
One large button for stopwatch control is particularly suitable for use in industry, schools, laboratories and other special applications. All stopwatch operations, such as stopwatch initialization, start, stop and reset, can be done via this robust BRB10 button, which can be operated even while wearing gloves. -
Page 9: Technical Data
BRB10 – Large Button for Stopwatch Control | User Manual Technical Data 3 Technical Data Parameter Mechanical Resistance operations Controlling Power 20–40 N Protection Degree IP 67 Operating Temperature -25 to +40 °C Mounting Position Control Manual / Foot control Dimensions –... -
Page 10: Diagram
Technical Data BRB10 – Large Button for Stopwatch Control | User Manual 3.1. Diagram BE-801424.1-BRB10 | 2025... -
Page 11: Connection To Digital Clock
BRB10 – Large Button for Stopwatch Control | User Manual Connection 4 Connection Only instructed or skilled persons may carry out the following operations. The NO terminal block (green) is used to connect the button. The button connects to the TEMP terminal (or CTRL terminal for outdoor clock models) on the clock control board. -
Page 12: Eco-M-Dc (Screw) Connectors
Connection BRB10 – Large Button for Stopwatch Control | User Manual 4.3. ECO-M-DC (Screw) Connectors Wire Color Connector Black Brown − 4.4. Outdoor Models (Screw) Connectors Wire Color Connector Black Brown − BE-801424.1-BRB10 | 2025... - Page 13 BRB10 – Large Button for Stopwatch Control | User Manual Connection BE-801424.1-BRB10 | 2025...
-
Page 14: Modes Of Operation
Modes of Operation BRB10 – Large Button for Stopwatch Control | User Manual 5 Modes of Operation Before you can use this button to operate the stopwatch, please first set value within item (External keyboard connection) in digital clock’s StoP settings menu . - Page 15 BRB10 – Large Button for Stopwatch Control | User Manual Modes of Operation The Timeout to switch to default display can be set within the digital clock’s StoP settings menu in item BE-801424.1-BRB10 | 2025...
