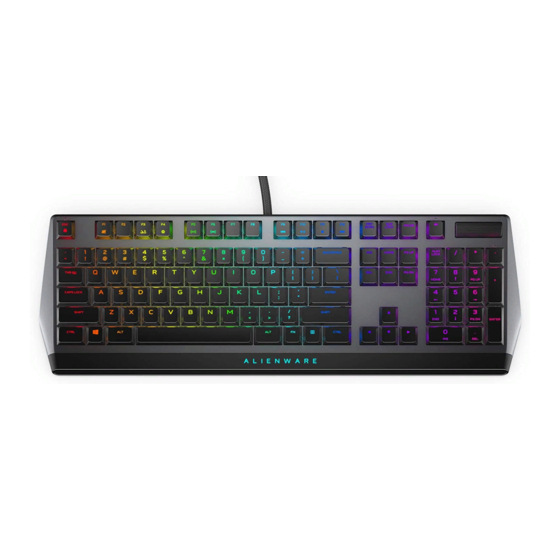

- Page 1 Alienware 510K Low-Profile RGB Mechanical Gaming Keyboard User’s Guide Keyboard Model: AW510K...
- Page 2 NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Setting up your gaming keyboard ....7 Alienware Command Center ..... .8 Setting up your gaming keyboard . -
Page 4: What's In The Box
What’s in the box 1. Keyboard 2. Document NOTE: The documents shipped with your keyboard may vary depending on the region. What’s in the box │... -
Page 5: Features
Three-angle adjustab feet Enables you to adjust the keyboard feet tilts in three different angles. The Alienware 510K Low-Profile RGB Mechanical Gaming Keyboard also offers the fo lowing features: l. Customizable RGB per-key backlighting 2. Fully programmable keys with N-key rollover 3. - Page 6 • AlienFX - 16.8M colors per-key RGB lighting • Cherry MX Low Profile Red mechanical switches with 50 million keystroke lifespan • 5000 series aluminum top plate for long term durability Iconic Alienware design • Slick profile with compact footprint • Floating key architecture Features...
-
Page 7: Setting Up Your Gaming Keyboard
2. Download and insta the Alienware Command Center (AWCC). NOTE: You can use your gaming keyboard as a normal keyboard even without installing the Alienware Command Center. We recommend you to download the Alienware Command Center for an enhanced gammg experience. -
Page 8: Alienware Command Center
Installing AWCC from the Dell Support website There are two versions of AWCC: 5.X and 6.X. AWCC 6.X is available for Alienware computers launched from the year of 2022 onward and third-party systems while AWCC 5.X is for all other computers. -
Page 9: Using Alienware Command Center 5.X
Using Alienware Command Center 5.X Keyboard basic color function 1. Launch Alienware Command Center application from the start menu. 2. Select FX and edit Lighting. 3. Select Effect from the drop-down list. 4. Define the effect of the keyboard LEDs. -
Page 10: Setting Up Lighting And Animation On Awcc
Setting up lighting and animation on AWCC 1. Select Effect from the dropdown list for Static or On Key Press modes. 2. From the drop-down list, select one of the following of supported animations: Color, Pulse, Breathing, Morph, Spectrum,Single Color Wave, Scanner, Rainbow Wave, or Static Default Blue. -
Page 11: Create And Assign Macro
Create and Assign Macro 1. Click FX menu and select Macro tab, then choose the AW510K keyboard device. 2. Keystroke ,Macro ,Shortcut ,Text block can be created and assigned to any key on the keyboard 3. Allowed to save the themes/presets (lighting, macros) created in AWCC, to the device onboard memory profiles Create and Assign Macro │... -
Page 12: Setting Up Device Settings On Awcc
Setting up device settings on AWCC 1. Click FX menu and select Settings tab, then choose the AW510K keyboard device. 2. Click Update to view the firmware version and check if any new firmware is available Click Restore Factory Defaults to reset the device to the manufacturing state. -
Page 13: Using Alienware Command Center 6.X
Using Alienware Command Center 6.X Dashboard Screen Key features 1. Click on the Alienware 510K Low-Profile RGB Mechanical Gaming Keyboard image in the DASHBOARD to go to ALIENFX. 2. Under ALIENFX PRESET in SYSTEM, you may perform the following functions: Using Alienware Command Center 6.X... - Page 14 AWCC, to the device onboard memory profiles. 4. Button Remapping - Ability to reassign the essential functions of most keys. Also includes ability to click directly on the keyboard key to create macros. Using Alienware Command Center 6.X │...
-
Page 15: Setting Up Lighting And Animation
Setting up Lighting and Animation Alienware 510K Low-Profile Profile RGB Mechanical Gaming Keyboard allows the user to change the Lighting effect of the through AWCC and store it in the device. 1. Click AlienFX icon. 2. Under ALIENFX PRESET in SYSTEM, select LIGHTING from the top rght menu bar. - Page 16 7. For Rainbow Wave animation, you can select the direction of the lighting effect and the tempo: Left to Right, Right to Left, Bottom to Top, Top to Bottom 8. For ON KEY PRESS modes, from the menu of supported animations select one of the following options: Off, Pulse, Morph, Breathing, Spectrum, Reactive, Single Color Rain Drops, Rainbow Rain Drops, Arrows, Fireworks, Single Color Wave,...
-
Page 17: Alienware Command Center
Alienware Command Center Create and Assign Key bind Key bind is a feature for the user to re-assign the original function of any keys except Key bind Creation: Key binds can be assigned in two ways. One is to create key binds first and then drag &... - Page 18 d. SHORTCUT – launch a program file, launch a folder, a computer or an internet address. e. TEXTBLOCK – record a block of text. 4. User can right click on the key to edit / delete assigned Key bind to the keys.
-
Page 19: Keybind Assignment
Keybind Assignment AW920K keyboard has configurable dial knob and rocker switches. You can change the functions of these switches in AWCC. The default functions of the dial knob and rocker switches are: - Dial knob: system volume control and mute/unmute - Rocker switch: multimedia (previous track, next track, play and pause) 1. -
Page 20: Save Preset To Device
Save Preset To Device Alienware 510K Low-Profile Profile RGB Mechanical Gaming Keyboard allows the user to save the themes/presets (lighting, macros) created in AWCC, to the device onboard memory profiles. Users can switch the profiles byusing Fn+F3 in the device. -
Page 21: Setting
SETTING You may update the firmware of the keyboard when a new version is available. In addition, you may also reset the keyboard setting to its factory default on a single click. Update firmware and restore factory defaults 1. Click AlienFX icon. 2. -
Page 22: Using Your Gaming Keyboard
Using your gaming keyboard Keyboard behavior Function Function keys FN Lock to toggle • Press Locks the F1 to F12 media-control functions (FN+F1) Win Lock • Press Disables the Windows key function Profile Enables you to switch between • Press (FN+F3) switch profiles stored onboard... -
Page 23: Statutory Information
For European, Middle Eastern, and African customers: Alienware-branded products that are sold and used are subject to applicable national consumer legal rights, the terms of any retailer sale agreement that you have entered into (which will apply between you and the retailer) and Dell’s end user contract terms.
