Summary of Contents for Acer AMR210

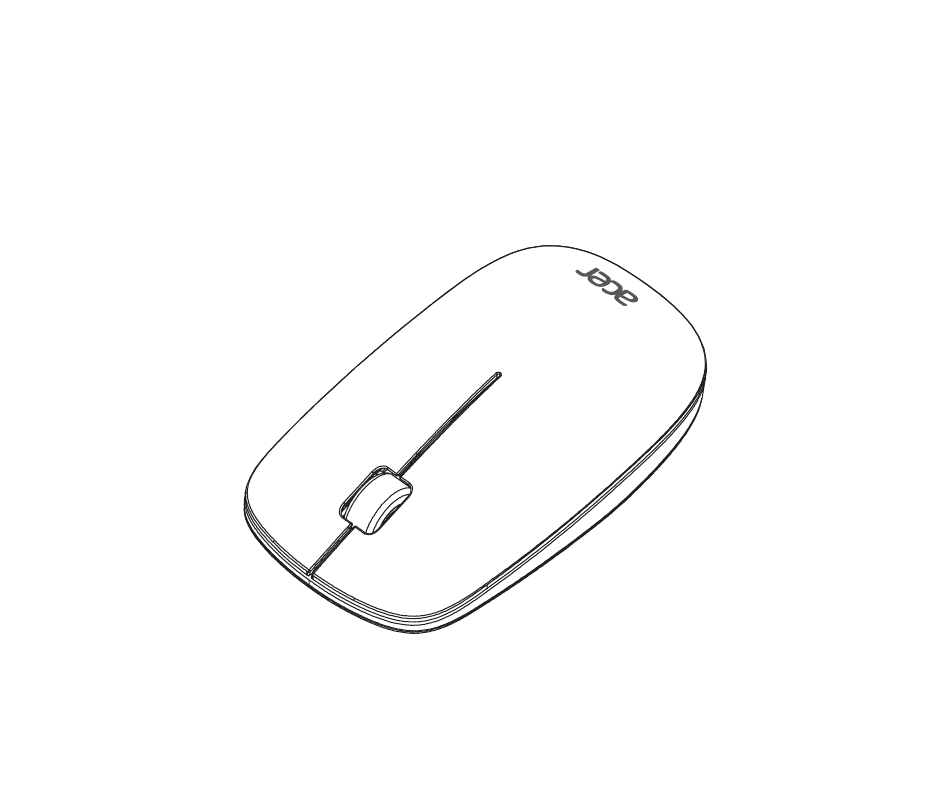

- Page 1 Acer Vero Wireless Mouse USER’S GUIDE Ver.1.0 AMR210 CAUTION: To use this product properly, please read the user’s guide before installing.
-
Page 2: Functional Introduction
Functional Introduction 1. Left button 5. Battery Cover 2. Right button 6. Connect Button 3. Scrolling Wheel 7. OFF / BT1 / BT2 Switch 4. LED Indicator... -
Page 3: Battery And Power Management
Battery and Power Management: Step 1: Take the battery cover off. Step 2: Insert the batteries as shown inside the battery compartment. Pull AA Battery Step 3: Replace the cover. Step 4: Slide the switch to Step 5: If you need to travel with your wireless mouse, made sure you turn off the POWER SWITCH. - Page 4 Switch Connection Channel • This Mouse can be paired with 2 different devices. • Slide the switch to and press the connect button then you can connect to the first device. • Slide the switch to and press the connect button then you can connect to the second device.
- Page 5 Connect via Bluetooth in windows 1. Turn On your PC, select Start > Settings > Bluetooth & devices > Turn on Bluetooth > Add device > Bluetooth. 2. Mouse switch to BT mode and press Connect Button. 3. Find “AMR210BT5.2” and press connect. Swift pair 1.
- Page 6 2. Mouse switch to BT mode and press Connect Button. 3. Windows will show a notification “AMR210BT5.2” and Selecting “Connect” starts pairing. Connect via Bluetooth in Mac 1. Click on “Apple menu” (top left corner of your screen). 2. Go to System Preferences > Bluetooth > Turn Bluetooth on to set up Bluetooth device and find “AMR210BT5.2”...
- Page 8 Connect via Bluetooth in Chromebook 1. Click on the [Status Bar] located in the bottom right corner of the screen. 2. Turn Bluetooth on > Pair new devices > Find “AMR210BT5.2” and press to connect.
- Page 9 * Bluetooth Mode LED Indicator Red LED is on for 10 sec. Power ON Red LED Blinking Pairing (LED OFF when paired or failed after 10 min) Red LED Blinking for 10 sec. Low battery Warning...
-
Page 10: Power-Saving Features
Power saving features: To conserve the battery power, the mouse offers power management functions as below: The mouse goes into “Saving Mode” after inactivity. There may be a slight delay while the mouse re-establishes Bluetooth connection from power saving or sleeping mode. Establishing a Bluetooth Connection The Bluetooth mouse can work in any Bluetooth environment. -
Page 11: Troubleshooting
Troubleshooting A. Mouse does not work upon installation or is not detected Try one or more of the following: • Make sure the batteries are installed correctly and turn the switch on. Replace a fresh set of batteries if it still does not work. •... - Page 12 • If you are using a computer with a built-in Bluetooth antenna, try reorienting the computer until you get a better data rate. • If you are using a Bluetooth dongle, use a USB extension cable and place the Bluetooth dongle onto your desktop or somewhere in sight of your Bluetooth mouse.
-
Page 13: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 14 CE declaration of conformity Hereby, Acer Inc., declares that this Wireless Mouse is in compliance with the essential requirements and other relevant provisions of Radio Equipment Directive 2014/53/EU, and RoHS...
- Page 15 Abandonment of waste equipment for EU household users This symbol on the product or on its packaging indicates that the product must not be disposed of with other household waste. When disposing of used devices, it is your responsibility to bring it to a collection point that recycles used electrical and electronic equipment.
- Page 16 Model Number: AMR210 We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislation: Radio Equipment Directive 2014/53/EU and RoHS Directive 2011/65/EU. The following harmonized standards and/or other relevant standards have been applied: EN 55032: 2015+A11:2020, Class B EN 301 489-17 V3.2.4 (2020-09)
- Page 17 (2) this device must accept any interference received, including interference that may cause undesired operation. The following local Manufacturer /Importer is responsible for this declaration: Product: Acer Vero Wireless Mouse Model Number: AMR210 Name of Responsible Party:...
