Features:
Temperature measurement ranges: -20°C (-4°F) ~ 60°C (140°F)
Temperature alternatively in ºC or ºF.
Humidity measurable range: 20%RH ~ 95%RH
Data transmission frequency:433.92MHz
Wireless range: max. 60 m (open area)
Wireless channel: 3 channel
Battery:2 x LR6 AA

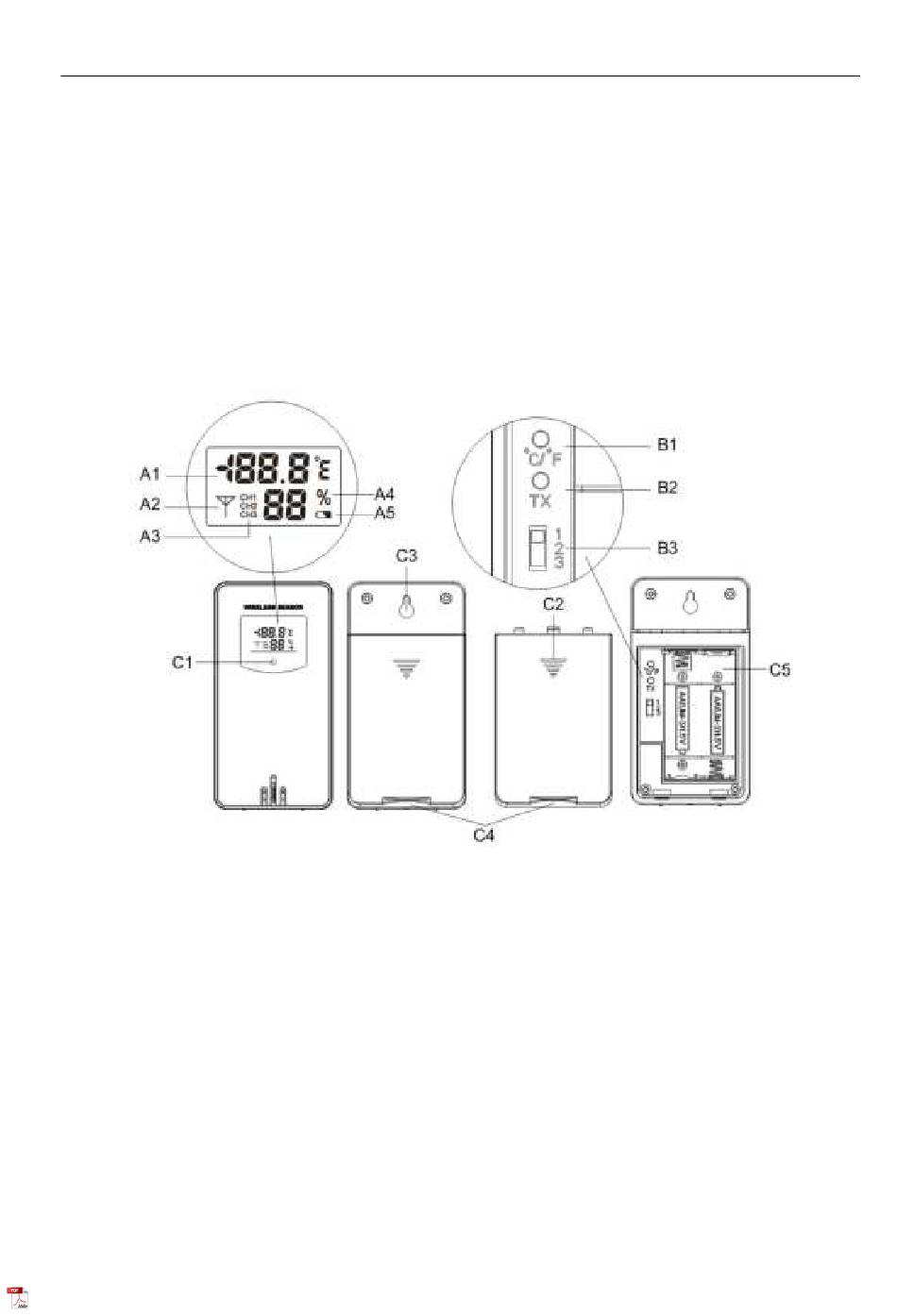

Parts description:
Part A –LCD Display:
A1: Temperature
A2: RF icon
A3: Channel icon
A4: Humidity
A5: Low battery icon
Part B –Button & switch:
B1: ºC/ºF button
B2: TX button
B3: channel Selection switch
Part C –Appearance:
C1: Signal LED
C2: Battery compartment cover
C3: Eyebolt
C4: Stand
C5: battery compartment
TX07Y-THC Manual
Advertisement
Summary of Contents for IMLONG Electronic TX07Y-THC
- Page 1 TX07Y-THC Manual Features: Temperature measurement ranges: -20°C (-4°F) ~ 60°C (140°F) Temperature alternatively in ºC or ºF. Humidity measurable range: 20%RH ~ 95%RH Data transmission frequency:433.92MHz Wireless range: max. 60 m (open area) Wireless channel: 3 channel ...
- Page 2 TX07Y-THC Manual Initial operation: Open the battery compartment on the back of the wireless transmitter by sliding the battery cover in the direction of the arrow. Insert the new batteries, type LR06, in the battery compartment. Check the polarity of the battery during insertion.
