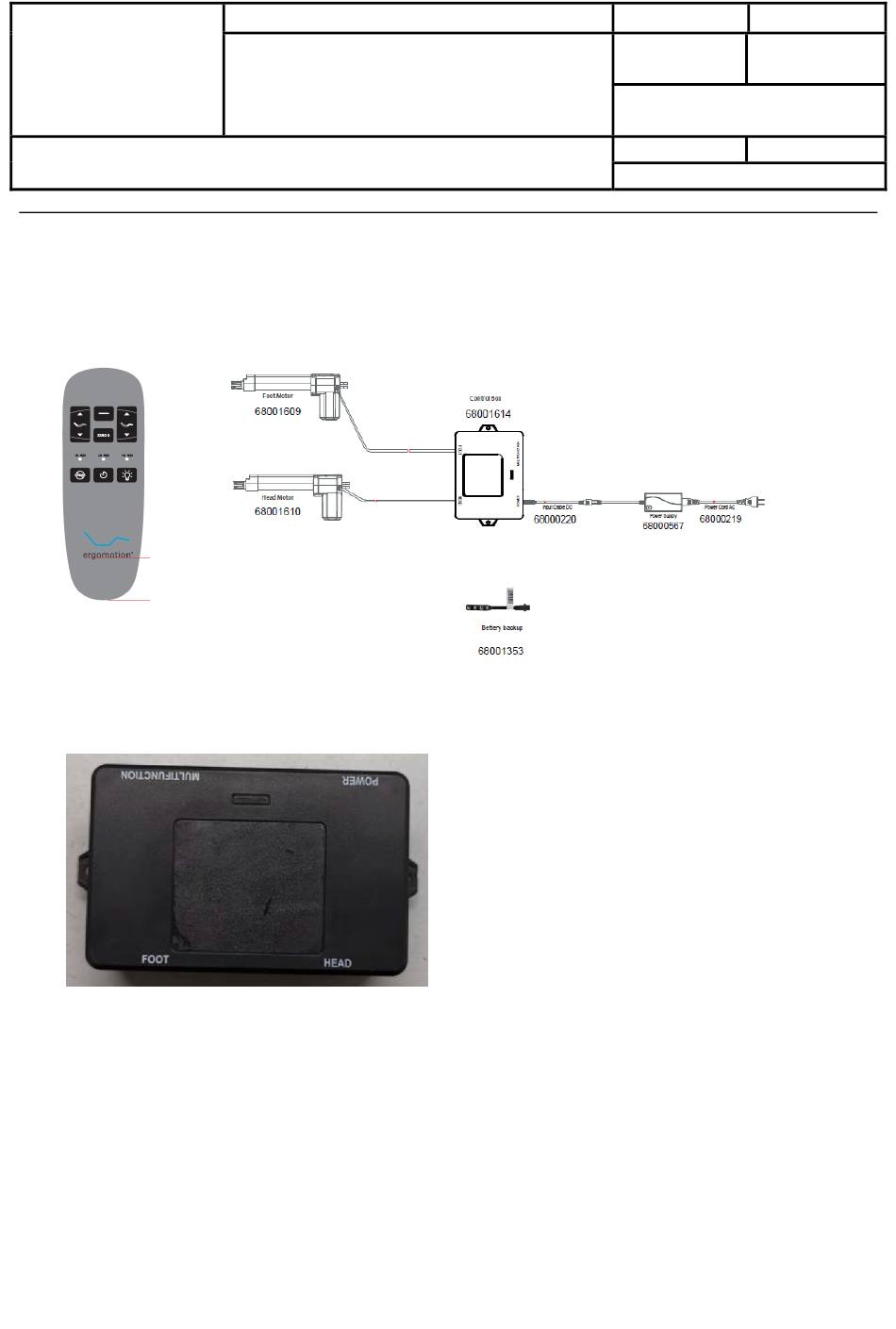

1. Electrical configuration diagram：
FCC ID: 2AK23RF373AD
IC: 22406-RF373AD
2. Function Picture
1.
Process of test
1.1. HEAD port
Connect to head actuator,control by remote single:
Click head up button on the remote, head actuator moves out, stop when released；
Click headdown button，head actuator moves in, stop when released；
This function takes effect only by pressing the corresponding button on the remote.
Issue department：Bedding Division
ProductFunction
instruction
MC120NM
MC120NM Function instruction
FCC ID: 2AK23MC120NM
IC: 22406-MC120NM
1
Date：
2017-05-03
Author：
Kyle
Version：
1.1
Page 1 of 3
Advertisement
Related Manuals for Keeson MC120NM
Summary of Contents for Keeson MC120NM
- Page 1 Issue department：Bedding Division Date： 2017-05-03 ProductFunction Author： Kyle instruction MC120NM Version： Page 1 of 3 MC120NM Function instruction 1. Electrical configuration diagram： FCC ID: 2AK23MC120NM IC: 22406-MC120NM FCC ID: 2AK23RF373AD IC: 22406-RF373AD 2. Function Picture Process of test 1.1. HEAD port Connect to head actuator,control by remote single: Click head up button on the remote, head actuator moves out, stop when released； Click headdown button，head actuator moves in, stop when released； This function takes effect only by pressing the corresponding button on the remote. 1 ...
- Page 2 Issue department：Bedding Division Date： 2017-05-03 ProductFunction Author： Kyle instruction MC120NM Version： Page 2 of 3 1.2. FOOT port Connect to foot actuator,control by remote single: Click foot up button，foot actuator moves out，stop when released； Click foot down button，foot actuator moves in，stop when released； This function takes effect only by pressing the corresponding button on the remote. 1.3. MULTIFUNCTION port Connect with the same other Control box or Other accessories; 1.4. Power LED& PAIRING LED Power supply for control box, PAIRINGLED of control box flashes for 4 times,and then turns off, POWER LED turns on。 1.5. Power Connect to the 29V DC; 1.6. Test for underbed light Click button of underbed light, turns on( or turns off ) the underbed light, switch the status once when click once； This function takes effect only by pressing the corresponding button on the remote. ...
- Page 3 Issue department：Bedding Division Date： 2017-05-03 ProductFunction Author： Kyle instruction MC120NM Version： Page 3 of 3 1.8. ZERO G position function Press and release ZERO G button on remote， the head and foot actuator moves to preset memory position， stop when press any button； This function takes effect only by pressing the corresponding button on the remote. FCC Warning： Any Changes or modifications not expressly approved by the party responsible for compliance could void the ...
