VitBest DF-HDMI-4K User Manual

Hdmi 2.0 audio de-embedder

Advertisement

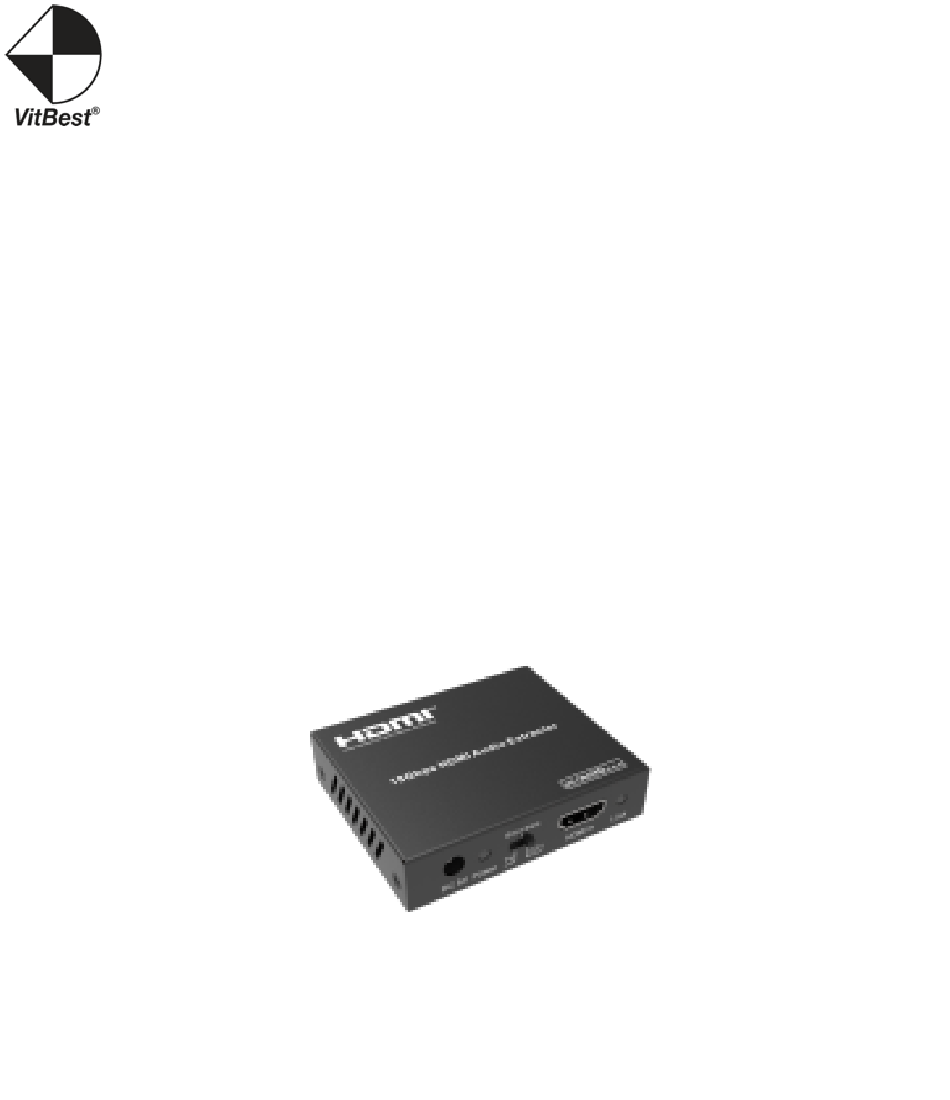

DF-HDMI-4K
HDMI 2.0 Audio De-Embedder
User Manual
Ver.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-HDMI-4K and is the answer not in the manual?

Questions and answers

Summary of Contents for VitBest DF-HDMI-4K

  • Page 1 DF-HDMI-4K HDMI 2.0 Audio De-Embedder User Manual Ver.1...
  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
  • Page 3: Introduction

    1. Introduction The HDMI HDMI 2.0 Audio De-Embedder could extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz.
  • Page 4: Specifications

    4. Specifications Technical HDCP Compliance HDCP2.2and HDCP 1.4 Video Bandwidth 18Gbps Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and Video Resolutions 1080P3D@60Hz Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 1O-bit, 12-bit LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, HDMI Audio Formats Dolby Digital+, Dolby TrueHD, DTS-HD Master (Pass-through) Audio, Dolby Atmos, DTS:X LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH,...
  • Page 5 Connections Inputs 1x HDMI TypeA[19-pin female] IxHDMI Type A[19-pin female] 1x L/RAudio Out [3.5mm Stereo Mini-jack] 1x Outputs Optical Out[S/PDIF] Mechanical Housing Metal Enclosure Color Black Dimensions 73.5mm [W] x60.7mm [D] x17mm [H] Weight 130g Input: AC100- 240V 50/60 Hz Output: Power Supply DC5V/1A(US/EU standards, CE/FCC/UL certified)
  • Page 6: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Front Panel ① DC5V: Connect 5V/1A adaptor to AC wall outlet for power supply. ② Power LED: System power indicator. ③ TV/Bit Stream / 2CH: This allows users to select audio format according to TV, Bit Stream or LPCM 2CH. ④...
  • Page 7: Rear Panel

    5.2 Rear Panel ① HDMI Out: Connect to HDMI display devices such as TV/ Projector. ② L/R Out: Connect to audio amplifier or TV L/R audio input port. ③ Optical Out: Connect to audio amplifier optical audio input port. HDMI and the HDMI Logo are either trademarks or registered trademarks of HDMI Licensing, LLC in the United States and/or other countries.
  • Page 8: Connection Diagram

    6. Connection Diagram 7 /7...
