Info: The most current version of these instructions can be found online at
Tools required for assembly: Phillips screwdriver, wrench (included)
SAFETY GUIDELINES—PLEASE READ BEFORE USE
WARNING: Important! Read and understand these
instructions before assembling or using the Physician
Mechanical Beam Scale. Ensure the scale is assembled
as described in this document before use. If the scale
is not properly assembled and adjusted, personal injury
and/or damage to the scale could result.
WARNING: DO NOT use this product without proper
instruction from a healthcare professional.
WARNING: If components are damaged or missing,
contact your Graham-Field
immediately. DO NOT use substitute parts.
WARNING: GF Health Products, Inc. assumes no
responsibility for any damage or injury caused by
improper assembly or use of this product.
INTENDED USE
The intended use of the HT485 Physician Mechanical Beam
Scale, shown in Fig. 1, is the measurement of body weight and
height. It is ideal for use in health clinics and doctor practices.
The designation of this product meets the OIML international
Recommendation R76.
UNPACKING
Unless the scale is to be used immediately, retain box and
packaging materials for storage until use is required.
1. Carefully remove all components from the carton.
2. Inspect all components.
3. If damage is evident to the contents, please notify the carrier
and your Graham-Field authorized distributor.
ASSEMBLY
Refer to pictures at right during assembly.
Pillar Installation
1. Set the scale base on a flat, dry working surface such as a table.
2. Install the pillar in the scale base frame bracket, with scale face
facing platform, as shown in Fig. 2.
3. Install the eight bolts and washers that secure the pillar to the
scale base. Use a Phillips screwdriver to tighten the bolts.
HT485-INS-LAB-RevA11
HT485: PHYSICIAN MECHANICAL BEAM SCALE
ASSEMBLY & OPERATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
authorized distributor
®
www.grahamfield.com
weighing
ruler
pillar
wheel

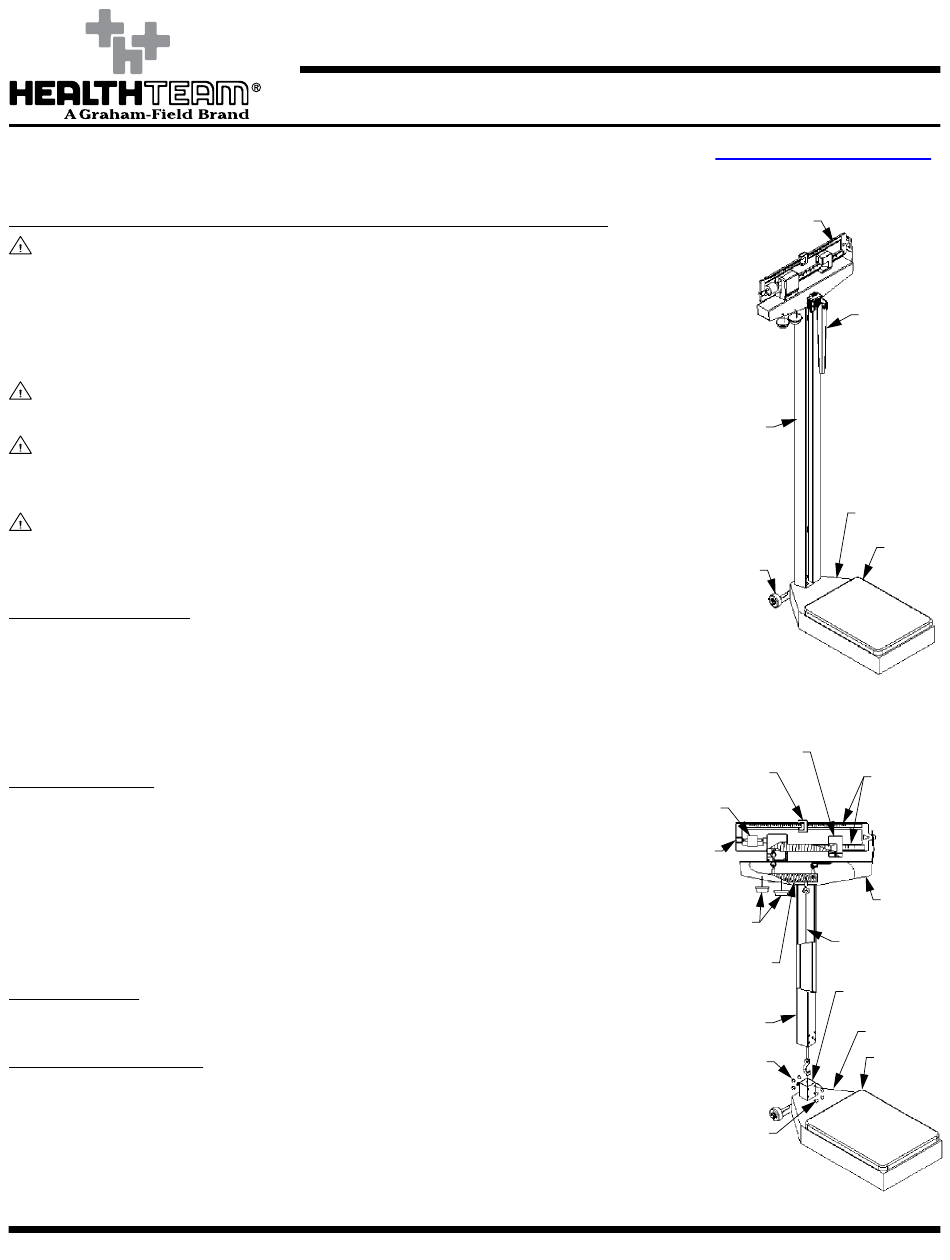

Fig. 1: HT485 Physician
Mechanical Beam Scale
main poise weight
accessory
poise weight
zero poise
weight
zero
adjusting
screw
counterpoise
weight
force lever
pillar
bolt
bolt
Fig. 2: Pillar Installation
height rod
frame
platform
weighing
ruler
pillar
head
steelyard rod
frame
bracket
frame
platform
1
