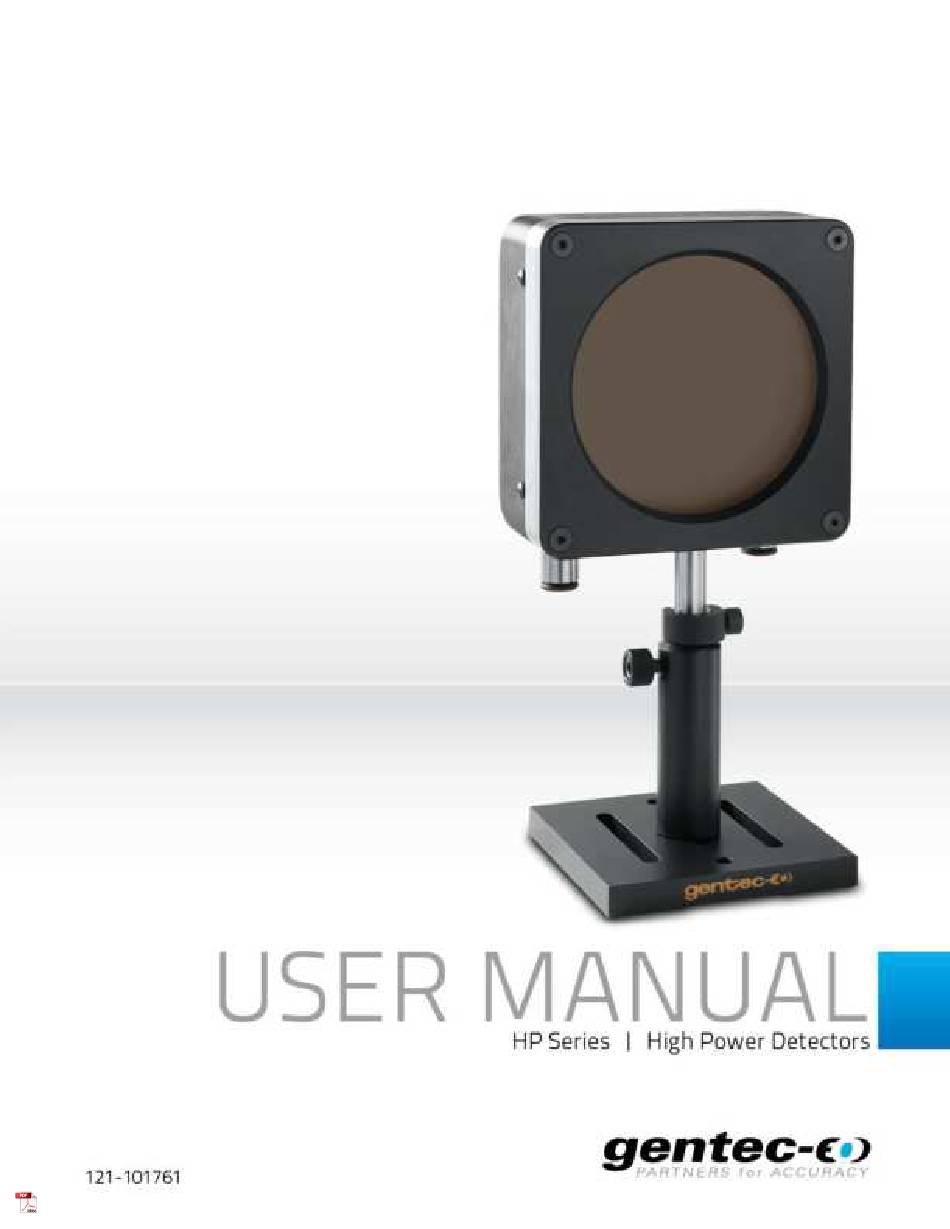

Gentec-EO HP Series User Manual

High power detectors
Hide thumbs Also See for HP Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP Series and is the answer not in the manual?

Questions and answers

Related Manuals for Gentec-EO HP Series

Summary of Contents for Gentec-EO HP Series

  • Page 2: Warranty

    /or workmanship defects when used under normal operating conditions. The warranty does not cover recalibration, or damages related to misuse. Gentec-EO will repair or replace at our option any wattmeter or joulemeter which proves to be defective during the warranty period; except in the case of product misuse.

  • Page 3: Safety Information

    Caution: Changes or modifications not expressly approved in writing by Gentec-EO, Inc. may void the user’s authority to operate this equipment. HP Series User Manual...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS WARRANTY ........................I SAFETY INFORMATION ....................II TABLE OF CONTENTS ....................III LIST OF ILLUSTRATIONS .................... III HP SERIES POWER DETECTORS ................ 1 1.1. INTRODUCTION ..........................1 1.2. POWER DETECTOR CONNECTORS .................... 3 DB-15 “intelligent” connector ....................3 1.2.1.

  • Page 5: Hp Series Power Detectors

    NOTE: To eliminate possible damage, do not carry the detector using the connector cable. HP detectors can be supplied with an optional stand. For the HP280A-30KW-HD-D0, Gentec-EO strongly recommends the use of the optional stand. The stand will improve safety and reduce the risk of damage to the detector.
  • Page 6 Version 3.8 Call your nearest Gentec-EO distributor to replace the sensor disk and/or to recalibrate the head. For Gentec-EO’s nearest office contact information, see p. ii, Contacting Gentec Electro-Optics Inc. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 7: Power Detector Connectors

    The DB-15 male "intelligent" connector contains an EEPROM (Electrically Erasable Programmable Read- Only Memory) with different information related to the HP Series detector head in use: detector model, calibration sensitivity, applicable scales and wavelength correction factor for up to 20 wavelengths.

  • Page 8: Usb Connector

    In some particular cases, the HP must be powered with a USB power supply. For example, when a DB15 extension is used between a HP and a Gentec-eo monitor, or if the DB15 connector is used for analog reading and is not connected to a Gentec-eo monitor.

  • Page 9: Cooling Water

    Please note that the tube size is written on the adapter output (10, 3/8, 12 or ½). Water quality: The HP series cooling fluid must be water, do not use glycol or other additive that changes the coolant’s heat capacity.
  • Page 10 The water flow rate can be monitored with the PC interface. NOTE: the water pressure at the HP input must never exceed 60 psi / 413 kPa. Note: All these parameters should remain in the range stated in the specifications. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 11: Hp Series Specifications

    2 An optional configuration allows an analog output up to 12 VDC. Only available upon request. Contact Gentec-EO for details. 3 For lower power, consult Gentec-EO. 4 Damage thresholds are valid at 1.064, 1.070, 1.080 & 10.6 µm. Refer to section 4 for more details on the appropriate beam size in function of measured power.
  • Page 12 Version 3.8 PCB electrical supply USB or Gentec-EO monitors Maximum current consumption 30 mA Max output signal 2.0 V Specifications subject to change without notice. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 13 Linearity vs beam position ± 1.7 % PCB electrical supply USB or Gentec-EO monitors Maximum current consumption 30 mA Max output signal 2.0 V Specifications subject to change without notice. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 14 For the HP60A-10KW-GD with serial number inferior to 276600, the maximum average power density is 10kW/cm (10kW). For a beam size of 10 % of the aperture area, moved across a circle of Ø35mm. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 15 Linearity vs beam position ± 4.0 % PCB electrical supply USB or Gentec-EO monitors Maximum current consumption 30 mA Max output signal 2.0 V Specifications subject to change without notice. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 16 The angles of divergence are for use with the fiber optic adapter. The fiber optic adapter centers the laser beam on the detector, thus there is no contribution of linearity VS beam position. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 17 Linearity vs beam position ± 1.0 % PCB electrical supply USB or Gentec-EO monitors Maximum current consumption 30 mA Max output signal 2.0 V Specifications subject to change without notice. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 18 Linearity vs beam position ± 1.0 % PCB electrical supply USB or Gentec-EO monitors Maximum current consumption 30 mA Max output signal 2.0 V Specifications subject to change without notice. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 19: Operating Instructions

    Operating environment temperature: 15 to 28 ºC, RH < 80 %. Condensation must not be present at anytime on the detector in operation or storage. It is possible to store and operate your Gentec-EO UP wattmeter beyond this range. For any specific requirement, please contact your local Gentec-EO representative.

  • Page 20: With Any Gentec-Eo Monitor

    Some monitors do not supply power via the DB15 connector. To power the HP in these cases, the USB cable must be attached to a PC or other USB power supply. Contact Gentec-EO for more details. Note that there is no advantage when using a U-LINK USB, P-LINK, or S-LINK USB with HP, because there is already a USB port on HP.

  • Page 21: Without A Gentec-Eo Monitor

    After it is transferred, open the file on your PC and follow the instructions to decompress and install it. Please refer to the PC-Gentec-EO manual also available on our website. If you try to install the same PC-Gentec-EO version twice on your computer, you will have the following warning: Installation Summary: No software will be installed or removed.

  • Page 22: Warnings

    - If the flow rate (FIG 2.3 A) or temperature (FIG 2.3 B) are too high or low the fonts will change to red as a warning that the measurements will be affected. FIG. 2-2 A & B PC INTERFACE WARNINGS FIG. 2-3 A & B PC INTERFACE WARNINGS HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 23: Verify Com Port

    To know which set of serial commands applies to your product, you must check the serial number. If the serial number is above 277830, you must use the Gentec-EO standardised serial commands set. If the serial number of your product is under 277830, you must use the legacy serial commands set.
  • Page 24 Enable the anticipation (default) DB-15 connector USB and *AND Disable the Anticipation DB-15 connector Stop the HP to send data automatically (push mode) and *CVU USB only returns a single measurement HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...
  • Page 25 Version 3.8 Example : *CVU Pw= 0.0 Ti= 20.000 F= 0.000 Gentec-EO standardised serial commands list : Please refer to the HP-Blu manual 205216 to retrieve the standardised serial commands list. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 26: Safety Operation Notes

    As on any diffusive surface, the light on the sensor coating is scattered more or less uniformly as a Lambertian diffuser. 3.2 Detector temperature Detectors can become hot enough during usage to cause burns. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 27: Damage To The Optical Absorber Material

    4 DAMAGE TO THE OPTICAL ABSORBER MATERIAL The HP series are high power meters that can measure up to 15KW. The beam diameter should always be as large as possible to avoid damage to the absorber. We recommend between 50 % and 80 % of the head aperture area, e.g.
  • Page 28 20.6 0.20 25.2 In the event of major damage to the coating, the HP Series sensors can be recoated. Contact your local Gentec-EO representative for information on repair and recalibration. See p. ii Contacting Gentec Electro-Optics Inc. Maximum beam diameter corresponding to 80% of aperture area or 90% of aperture diameter.

  • Page 29: Ce Mark Declaration Of Conformity

    (IEC 61326-1_Ed2:2012) A1:2007+A2:2010 Immunity I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s). Place: Québec (Québec) Date : January 20, 2017 ______________________ (President) HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

  • Page 30: Appendix A: Weee Directive

    Paper : Manual and certificate Wires: Detector cable. Printed circuit boards: Inside the detector DB-15, no need to separate (less than 10 cm Aluminum: Detector casing. Plastic: Parts inside the detector. HP Series User Manual Gentec Electro-Optics Inc. All rights reserved...

This manual is also suitable for:

Hp100a-4kw-heHp60a-10kw-gdHp100a12kw-hdHp60a-15kw-gd-d0Hp125a-15kw-hdHp280a-30kw-hd-d0
