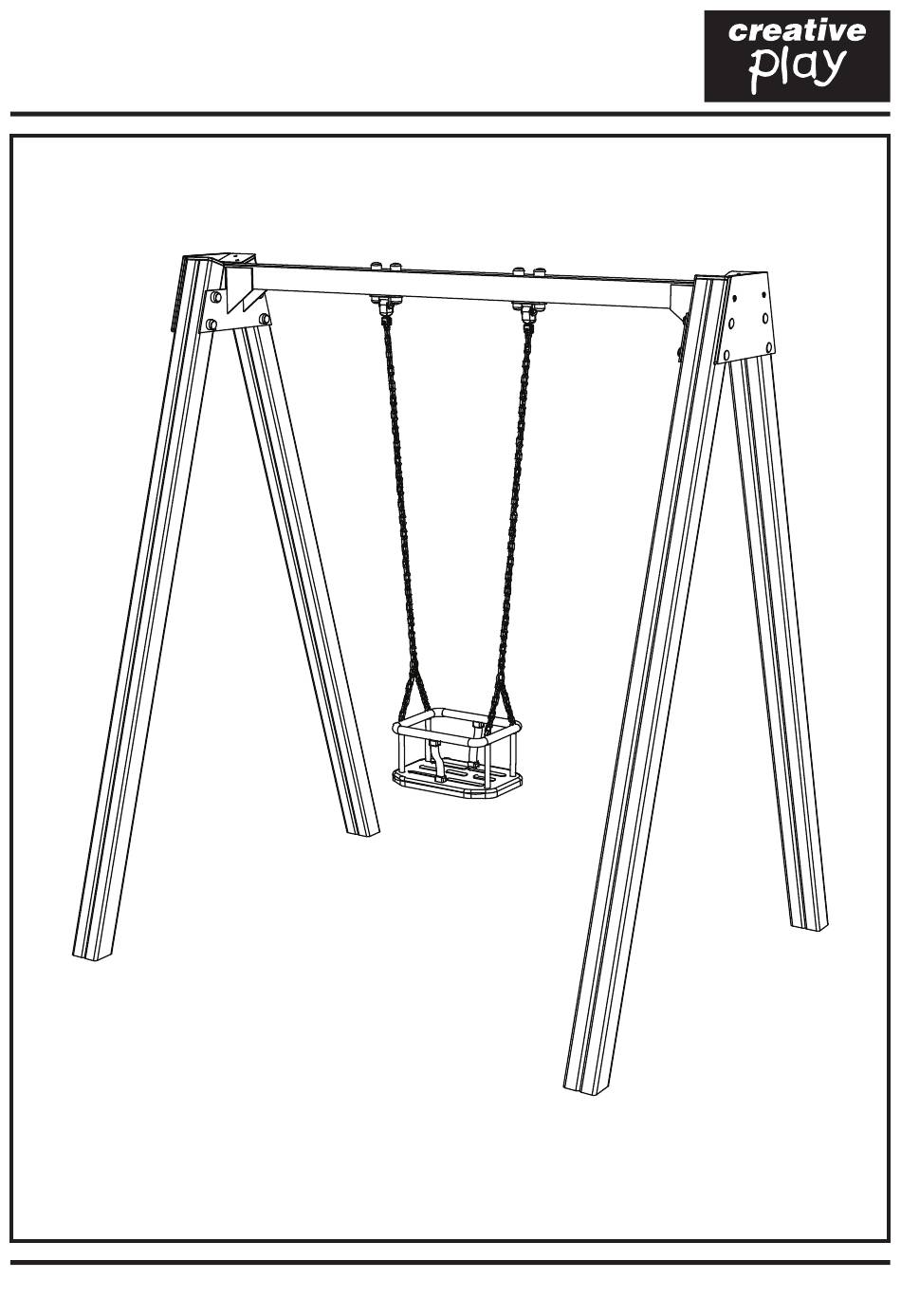

- Page 1 S114 - SINGLE SWING (CRADLE SEAT Installation Instructions REF: S114 - SINGLE SWING (CRADLE SEAT) pg 1 of 7 02.04.2024 REV 1...
-
Page 2: Parts Required
PARTS REQUIRED SUPPORT BEAM M8 NUT CAP PLAYTEC COVER M8X80 WOODSCREWS M12X160 BOLT M12 END CAP M12 NYLOCS S1 TIMBERS CRADLE SEAT INC CHAINS S114 - SINGLE SWING (CRADLE SEAT) pg 2 of 7 02.04.2024 REV 1... -
Page 3: Foundation Details
FOUNDATION DETAILS 2120 Soil Timber support post Concrete S114 - SINGLE SWING (CRADLE SEAT) pg 3 of 7 02.04.2024 REV 1... - Page 4 SURFACING DETAILS = SYNTHETIC = LOOSE FILL = AREA REQUIRED 3430 1800 S114 - SINGLE SWING (CRADLE SEAT) pg 4 of 7 02.04.2024 REV 1...
-
Page 5: Installation Instructions
ATTACH PLAYTEC COVER AND S1 TIMBERS TO SUPPORT THE BEAM USING M12X160 BOLTS [X8], M12 NYLOCS [X8] AND END CAPS [X8] ATTACH PLAYTEC COVER TO TIMBERS S1 USING M8X80 WOODSCREWS [X4] S114 - SINGLE SWING (CRADLE SEAT) pg 5 of 7 02.04.2024 REV 1... -
Page 6: Additional Dimensions
ADDITIONAL DIMENSIONS INSTALL THE ASSEMBLY FOLLOW FOUNDATION DETAILS ATTACH SEATS TO BEAM FOLLOW DIMENSION DETAILS ON NEXT PAGE S114 - SINGLE SWING (CRADLE SEAT) pg 6 of 7 02.04.2024 REV 1... - Page 7 ADDITIONAL DIMENSIONS 2240 1828 S114 - SINGLE SWING (CRADLE SEAT) pg 7 of 7 02.04.2024 REV 1...
