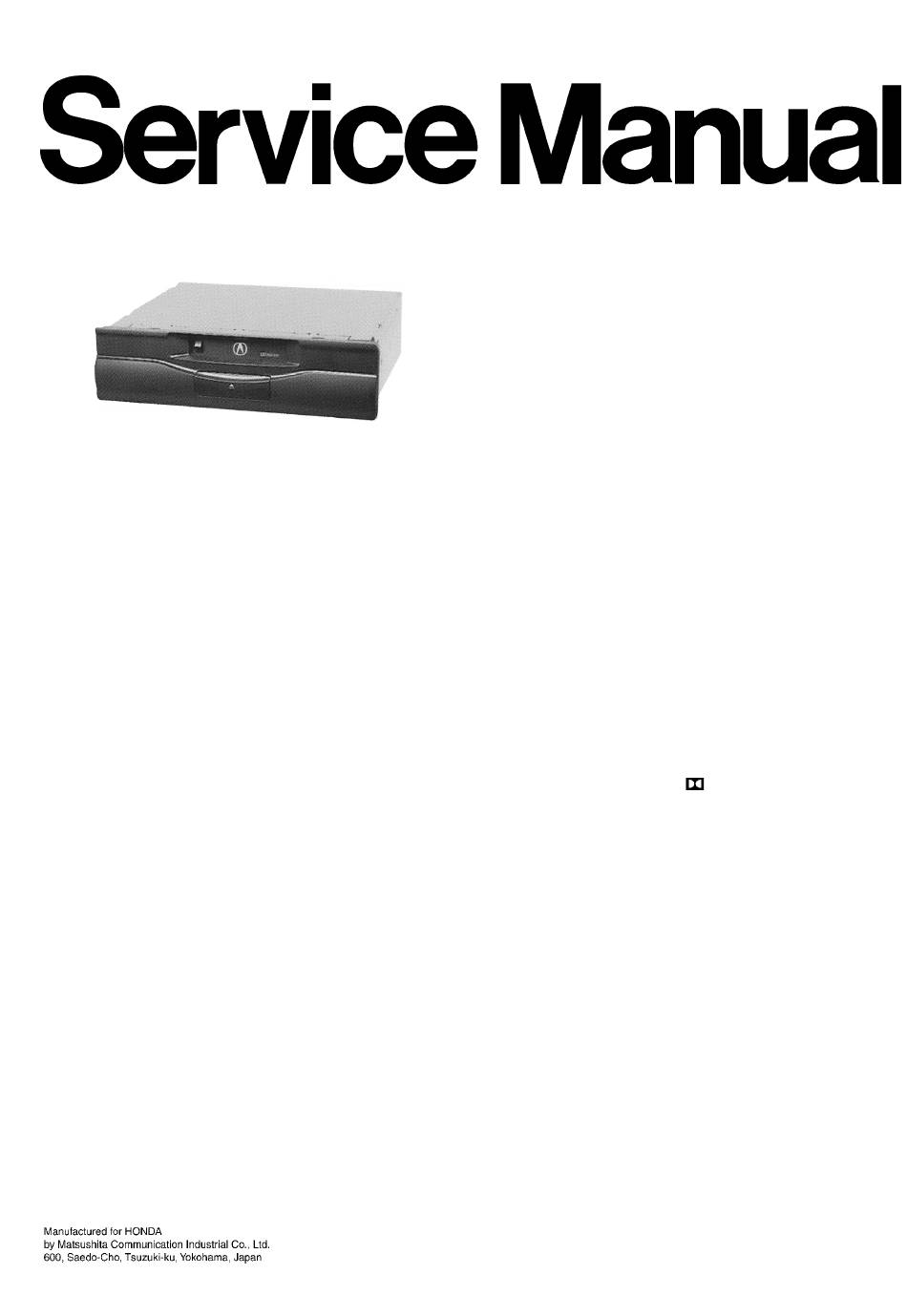

Panasonic ACURA CX-LH9161B Service Manual

Specification*
General
Power Supply
Current Consumption
Power Output
Output Impedance
Cassette Player
Reproduction System
Tape Speed
Wow and Fluter
Signal to Noise Ratio
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 0.8A
300mV
10kΩ
4-Track, 2-Program Stereo
4.76cm/sec.
Less than 0.1% (WRMS)
54dB
AUTOMOTIVE ELECTRONICS
ACURA
CX-LH9161B
Full-Logic Cassette Tape Player
ACURA PART No. : 08A03-5C4-0500
VEHICLE : ACURA RSX
DESTINATION : Canada
PRODUCED AFTER : Apr., 2001
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Doldy noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol
Laboratories Licensing Corporation.
ORDER No. 0153
180×50×150mm
1.4kg
are trade marks of Dolby
I0
