THERMOCOUPLE
TEMPERATURE HEAD
TRANSMITTER
THT201
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_INHD_THT201_E02A
Advertisement
Summary of Contents for REKON THT201

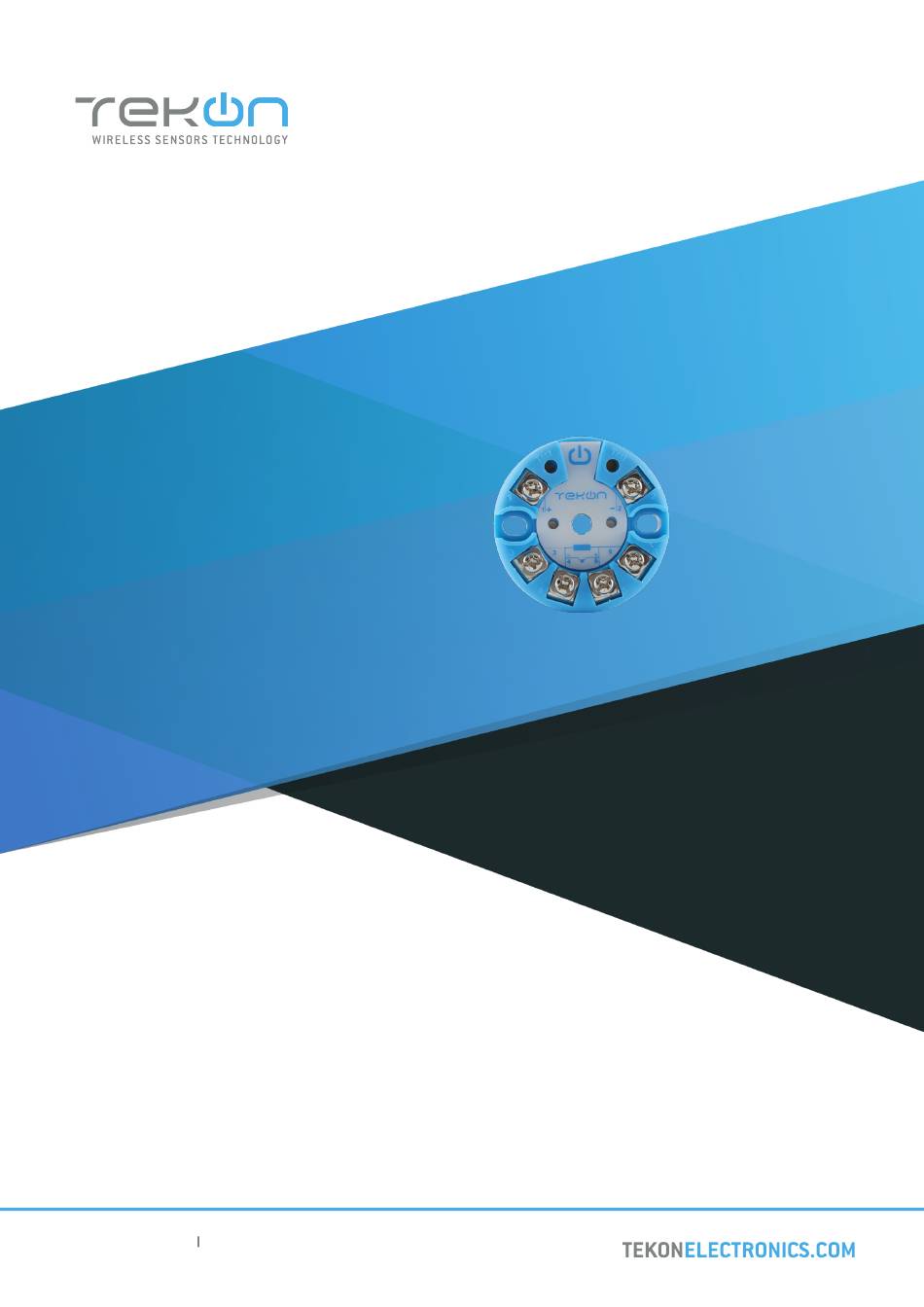

- Page 1 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER THT201 INSTALLATION GUIDE IG_INHD_THT201_E02A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
- Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER THT201 INSTALLATION GUIDE Table of contents step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Pages 3 to 9...
- Page 3 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER DOWNLOAD AND INSTALL “TEKON CONFIGURATOR” FREE SOFTWARE FROM TEKON ELECTRONICS WEBSITE Connect the THT201 transmitter to the SARC2 cable configurator. Connect the Thermocouple to the THT201 transmitter.
- Page 4 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Open the THT201 device page. You can enter the device’s page in the following ways: 1st option: Click on “WIRED TRANSMITTERS” in the left menu and then click on the device.
- Page 5 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Load the “Port COM” corresponding to the THT201. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list, otherwise you need to click on the “...
- Page 6 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Click on Connect ) button. NOTE: For security reasons, it is only allowed to change the settings during the first 60 seconds after power up.
- Page 7 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER When the software connects to the device, the “Connected” message will be displayed. While the THT201 transmitter it is in configuration mode, the blue led will flash continuously.
- Page 8 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Choose wich thermocouple you want to in Sensor Type select. To change the selected sensor settings, update the value of the desire parameter and select the “Write...
- Page 9 THT201 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THT201 THERMOCOUPLE TEMPERATURE HEAD TRANSMITTER Click on to read the current temperature value. Wait for the software to read the values from the device. Wait for status to change to If the device reading fails appears.
- Page 10 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Quinta do Simão TEKON ELECTRONICS 3800-230 Aveiro PORTUGAL a brand of Bresimar Automação S.A. P.: +351 234 303 320 Quinta do Simão M.: +351 933 033 250 3800-230 Aveiro E.: sales@tekonelectronics.com PORTUGAL P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com...
