Summary of Contents for ComfyGo Mobility BC-MS310

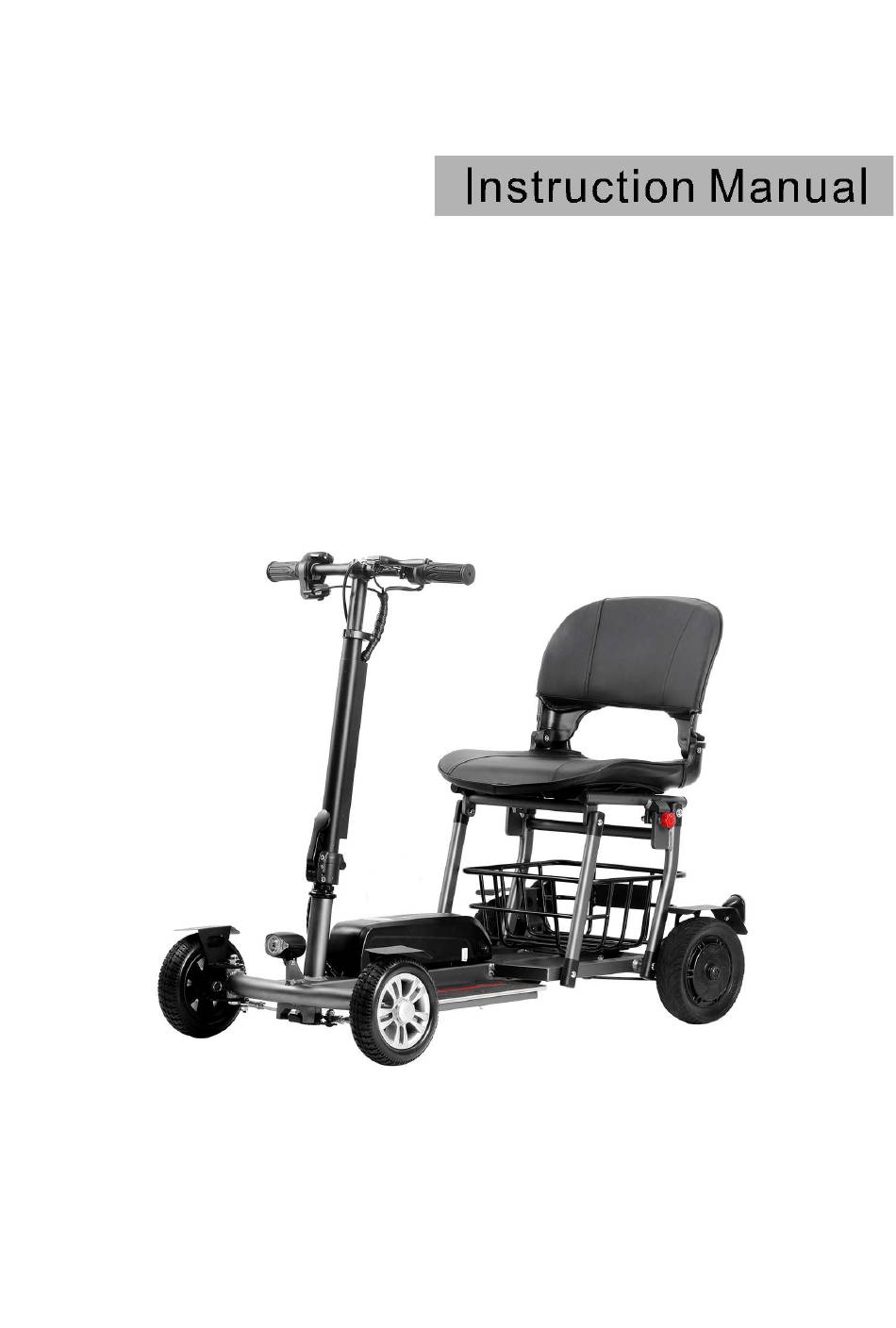

- Page 1 Model:BC-MS310...
- Page 3 Thank you for your patronage ！ Proper use of this product is the prerequisite to ensure safety, convenience and durability Please read this instruction carefully before using, and be sure to master the matters marked with the mark ★ Catalogue Product drawing Opening and folding indication picture Accessories description...
- Page 4 Product drawing 1. Keyswitch 13 . Lithium battery 2. Accelerator 14. aluminum alloy frame 3. Battery display 15. Seat cushion 4. Brake lever 16. Backrest 5. Forward/backward switch 17 . latch 6. Horn switch 18. Basket 7. waterproof wire harness 19 .
- Page 5 Opening indication picture Folding indication picture ①： Open the red latch to fold / open the seat ②： Open the black safety buckle for folding/opening the upright pole ③： Remove the lithium battery before folding ④： Folding vertical rod can be extended up and down...
- Page 6 Accessories description Waterproof plug wire Waterproof plug, waterproof connector, waterproof performance, can provide safe and reliable electrical, signal and other connections, easy to replace products Electric control switch Electric switch headlights, horns, forward and back switch buttons are designed to be anti-skid, with better symmetry and convenient operation Red button : forward and reverse switch button Green button : headlamp switch Blackout brake handle...
- Page 7 Opening size Folding size...
- Page 8 Parameters BC-MS310 Parameters Dimensions (mm) Length Width Height Open 1010 Folded 1010 Weight (kg) Tyre(inch) Weight capacity Front Back 20.5 ≦100 6.5inch 8inch Electric specification Motor Lithium Battery Voltage Watt Capacity Voltage 300W 220V Charger Controller Valtage Power Current output...
- Page 9 Inspection and maintenance before driving In order to ensure that this portable electric folding car can bring convenience to your life, please check and maintain the product according to the following requirements before using. 1. Check whether the battery is full of electricity to ensure that all kinds of cables are properly connected.
-
Page 10: Battery Instruction
Battery Instruction ★ Improper use will shorten the service life of the battery, and may lead to the fever of the battery, Fire, or even explosions. Please read the following notes carefully: Do not separate and decompose the battery. There are protective ★... - Page 11 You must charge the battery with a charger that matches the battery, ★ Otherwise, abnormal chemical reactions will occur in the battery, causing the battery to heat up, burn and other dangers; It is strictly prohibited to use a hammer or other hard objects to hit ★...
- Page 12 Attentions for safe driving In order to ensure that you can use this portable electric folding car safely, please be sure to follow the following requirements for proper operation: ★ Before driving for the first time, be sure to do driving exercises in the open field.
- Page 13 Eliminate of frequent malfunction Malfunction Reason solution Adjuster shifter out 1. battery cable is loose 1.Tighten the battery cable of order or 2. Shortage power 2.full recharge the battery Significant 3. Spring failure of Adjuster 3.change the spring or shifter reduction of shifter maximum speed...
- Page 14 ★ Batteries, chargers, motors, controllers and control shifter shall be repaired by professional technicians or after-sales maintenance units ★ The above data are for reference only. The technical data of this product series are subject to change without prior notice ★...
- Page 15 WARNING: Before the first use of your product, please ensure that all screws and bolts are securely fastened. Additionally, it is mandatory to inspect and tighten all screws and bolts on a monthly basis to ensure their secure attachment. Failure to adhere to these safety guidelines may result in severe injury or even death.
